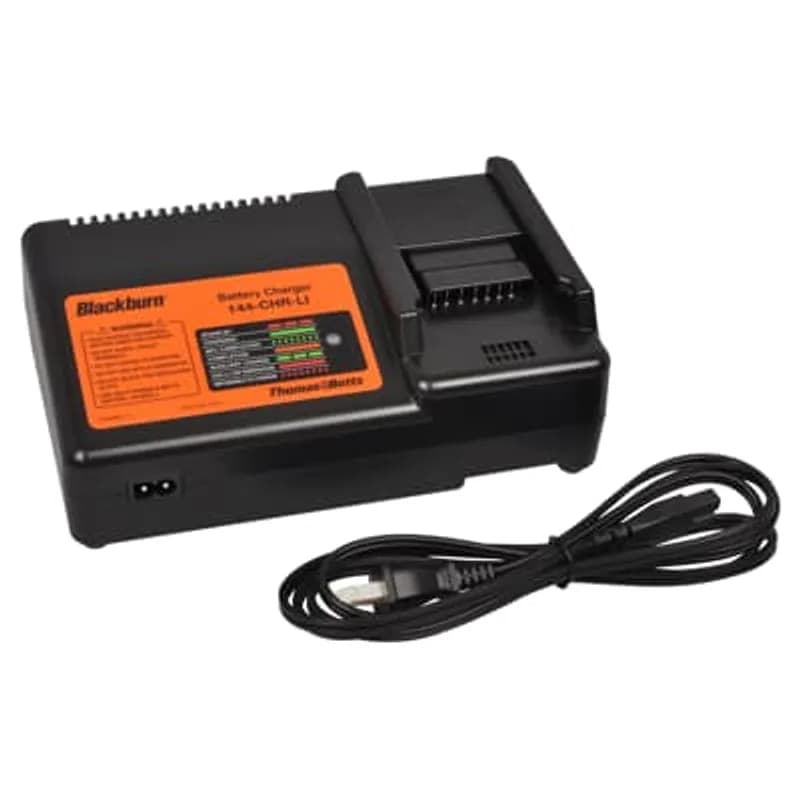

ABB Installation Products 144-CHR-LI Lithium Ion Battery Charger, Use with either 110V AC or 240V AC power supply, 50/60 Hz…
UPC: 783786529643
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Compatible with 110V AC or 240V AC power supplies (50/60 Hz)
- Dual output: 10.8-14.4 VDC at 7A and 28.8 VDC at 3A
- Specifically designed for ABB 144-BAT-LI battery packs
- Compact dimensions: 9 x 5.7 x 3.2 inches
- Weight: 3.5 pounds
Specifications
Ambient Temperature | 50 to 95 F |
Charge Time | 45 minutes |
Height | 3.2 in |
Length | 9 in |
Special Features | 14.4V lithium-ion battery offers lighter weight, longer run time, no memory effect, minimal discharge and rapid recharge |
Type | Battery Charger |
Width | 5.7 in , 144.78 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 4.2500 L |
Package Weight (Metric) | 1.9280 kg |
ATS-BATTERY-CHARGE-E
Battery Charger for 'ATS-Battery' (S00046), Smart Charger (3.0A) for 14.8v Li-on/Polymer Battery with Standard Female Tamiya Output Terminal (CH-L1483SM-V3)
Frequently Asked Questions
What battery packs is the 144-CHR-LI charger compatible with?
The 144-CHR-LI charger is designed for use only with 144-BAT-LI battery packs.
What AC input voltages does the 144-CHR-LI charger support?
The charger supports either 110V AC or 240V AC power supplies.
What are the output specifications of the 144-CHR-LI charger?
The charger has an output of 10.8-14.4 VDC at 7A and 28.8 VDC at 3A.
What are the dimensions of the 144-CHR-LI charger?
The dimensions of the charger are 9 x 5.7 x 3.2 inches.
What is the weight of the 144-CHR-LI charger?
The weight of the charger is 3.5 pounds.
Does the 144-CHR-LI charger support both 50 Hz and 60 Hz power frequencies?
Yes, the charger is compatible with both 50 Hz and 60 Hz power frequencies.
How to Set Up and Use the 144-CHR-LI Battery Charger
This guide provides instructions for the safe setup, power connection, and proper charging of Thomas & Betts 144-BAT-LI battery packs using the 144-CHR-LI battery charger.
Estimated time: 45m
- Read Safety Information and Prepare Charger
Before operating or servicing the 144-CHR-LI battery charger, read and understand all instructions and safety information provided in the manual. Ensure the charger is placed in a well-ventilated area, free of foreign objects, and at an ambient temperature between 50°F (10°C) and 95°F (35°C). Do not expose the charger to rain, snow, or direct sunlight.
- Connect the Power Cord
Connect the AC power cord to the 144-CHR-LI charger, then plug the charger into a nominal 110-220 AC volt grounded circuit. The indicator lamp should blink red, indicating stand-by mode. If the power light fails to light, do not attempt to service it; return the charger for repair or replacement. Ensure the outlet is properly grounded to reduce the risk of electric shock.
- Prepare and Charge the Battery
Ensure the Thomas & Betts 144-BAT-LI battery pack is at room temperature, ideally between 68°F (20°C) and 77°F (25°C), before charging. Do not charge a battery stored below 32°F (0°C). Insert the battery firmly into the charger. The indicator lamp will light solid green, signifying that charging has begun. When the battery reaches 80% capacity, the lamp will rapidly blink green. Upon 100% completion, the lamp will turn solid orange. If the lamp lights solid red, the battery temperature is too high or low; remove it and allow it to reach room temperature. If it blinks rapidly red, the battery is defective and must be replaced.
