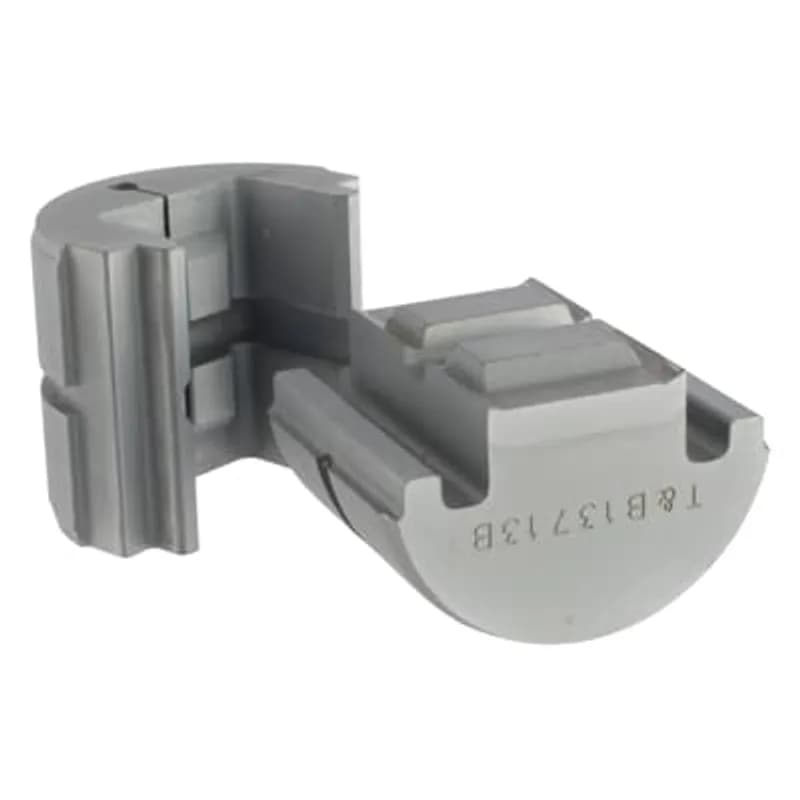

ABB Installation Products 13713 Die for 15 Ton TBM15i Hydrualic Tool for Crimping 2200 Series Dragon Tooth Terminals
UPC: 786210137131
Documents & Media
Contact for Pricing
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- Designed for ABB TBM15i 15-ton hydraulic crimping tool
- Compatible with 2200 Series Dragon Tooth terminals
- Ensures secure, high-strength crimps for industrial applications
- Part of ABB’s trusted Installation Products line
- Direct replacement for tools requiring 15-ton crimping force
Specifications
Application | Crimping Dragon Tooth terminal for magnet wire |
Color | Silver |
Material | Alloy Steel |
Type | Die |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
ATL8-14
Type ATL Aluminum One-Hole Lug, Max 35kV, Wire Size 8 Str, 1/4 Inch Bolt Hole, Tin Plated, Die Color Code Blue
ATL7502
Type Aluminum Two-Hole Lug, Max 35kV, Wire Size 750 kcmil, 1/2 Inch Bolt Hole, Tin Plated, Die Color Code N/AATL8-10
Type Aluminum One-Hole Lug, Max 35kV, Wire Size 8 Str, #10 Bolt Hole, Tin Plated, Die Color Code Blue
ADR31-34
Type ADR-ALCUL Three-Conductor, Four-Hole Mount for Conductor Range Max 3/0 Str., Min 6 Str.ATL2502
Type Aluminum Two-Hole Lug, Max 35kV, Wire Size 250 kcmil, 1/2 Inch Bolt Hole, Tin Plated, Die Color Code RedATL3502
Type Aluminum Two-Hole Lug, Max 35kV, Wire Size 350 kcmil, 1/2 Inch Bolt Hole, Tin Plated, Die Color Code BrownHow to Install and Use the T&B 13713 Die Set for Magnet Wire
This guide provides instructions for installing the 13713 interchangeable die set into T&B 15 Ton tools and using it to crimp T&B insulation piercing splices and terminals on magnet wire.
Estimated time: 20m
Tools needed:
T&B 15 Ton Hydraulic Crimping Tool (TBM15I or BPLT15BSCR), Hydraulic Pump (compatible with crimping tool), Safety Glasses
Supplies needed:
T&B 13713 Die Set (Nest and Indentor halves), T&B Insulation Piercing Splices and Terminals (2200XX Series), Magnet Wire (50 to 238 MCM), Lubricant
- Review Safety and Lubricate Dies
Before installation, read and understand all safety warnings pertaining to your crimping tool and connectors. Apply lubricant to the nest and indentor halves of the 13713 die set as indicated in Figure 1 of the original documentation to ensure smooth operation and longevity. WARNING: Never attempt to make a connection to a 'hot' line. Always ensure power is OFF and no electrical hazard exists before working. Wear safety glasses.
- Install the Die Set into the Crimping Tool
Ensure the hydraulic crimping tool is disconnected from its power supply. Laterally slide the nest half (2) of the die set into the frame die cavity (1) of the tool until it locks in place. Then, laterally slide the indentor half (3) into the piston die cavity (4) of the tool until it locks. Ensure both halves are securely seated. CAUTION: Never operate the tool without a set of dies installed. Keep hands clear of dies when operating the tool.
- Prepare and Insert the Connector
Select the appropriate T&B insulation piercing connector for your magnet wire combination, referring to the connector's instruction sheet for information on wire sizes, number of wires, and proper connectors. Insert the chosen connector into the die nest (2) with the connector rib aligned in the die nest side wall grooves, and the open end of the connector facing outward as shown in Figure 3 of the original documentation.
- Crimp the Connector
With the connector properly seated and the magnet wire prepared according to the connector's instructions, depress the foot or hand control switch of your hydraulic crimping tool to crimp the connector. Refer to your tool and pump manuals for specific operating instructions. Ensure the crimp is complete. WARNING: Keep hands clear of dies when operating the tool. AVOID ALL BODILY CONTACT WITH HOSE WHILE HYDRAULIC PRESSURE IS BEING APPLIED.
- Maintain the Die Set and Tool
After use, disconnect the pump from the power supply. Keep the die set and tool clean, free of chips and other foreign material from the working areas and mating surfaces. Periodically inspect the dies for damage such as cracks, chips, or excessive wear, and replace or repair as necessary to maintain optimal performance and safety.
