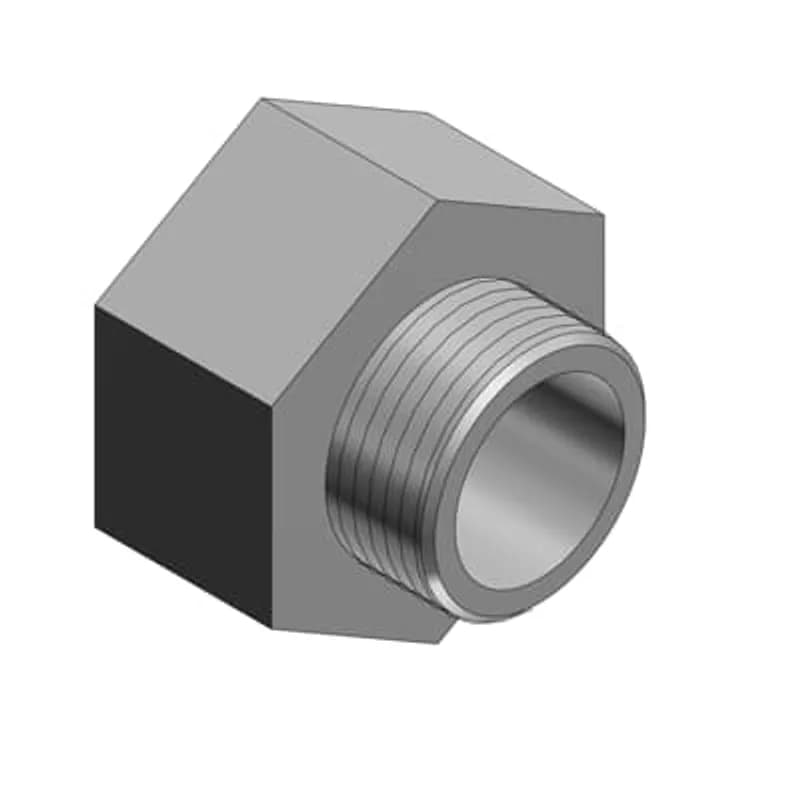

ABB - Installation Products 1247 - 1-1/4 Inch to 1-1/2 Inch Male Enlarger, Malleable Iron for Use with Rigid/IMC Conduit
ABB - Installation Products

1247

UPC: 786210012476

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The ABB Installation Products SKU 1247 is a male enlarger designed for seamless conduit system expansion. Constructed from durable malleable iron, this fitting reliably transitions between 1-1/4 Inch and 1-1/2 Inch conduit sizes. Its robust construction ensures a secure and long-lasting connection, essential for maintaining the integrity of electrical raceways in industrial and commercial settings. Engineered for use with Rigid and IMC (Intermediate Metal Conduit) conduit types, this enlarger provides a straightforward solution for adapting conduit runs to accommodate varying equipment or layout requirements. The malleable iron material offers excellent resistance to impact and corrosion, making it suitable for environments where conduit protection is paramount. This component is a critical element in building out complex conduit pathways, ensuring that electrical systems remain protected and accessible. ABB Installation Products are known for their quality and reliability, and the SKU 1247 upholds this standard by providing a dependable means to adjust conduit diameters without compromising system performance or safety. Its precise sizing ensures a snug fit, preventing gaps and potential ingress points for dust or moisture.
  • Malleable iron construction for superior durability and corrosion resistance.
  • Adapts conduit size from 1-1/4 Inch to 1-1/2 Inch.
  • Designed for use with Rigid and IMC conduit.
  • Ensures secure and reliable conduit system connections.
  • ABB Installation Products quality and reliability.

Specifications

Application
Suitable for Use In Hazardous Locations Where General Purpose Equipment is Specifically Permitted by The NEC, Class I, Div. 2, Class II, Div. 1 & 2, NEC 501-4(B), 502-4(A)(B), 503-3(A)(B)
Hub Size
1-1/4 to 1-1/2
Material Quality
Malleable Iron
Material Quality
Other
Special Features
Adapt an Outlet Hole to The Next Larger Size of Conduit. Rough Ends of Conduit Carefully Covered by Built-In Bushing
Standard
UL E23018, CSA
Type
Reducers & Enlargers
Package Dimensions (L x W x H)
4 IN x 4 IN x 3 IN
Package Dimensions (L x W x H)
10.16 cm x 10.16 cm x 7.62 cm
Package Weight (Imperial)
0.4600 L
Package Weight (Metric)
0.2090 kg
Type T Conduit Body, Volume 63 Cubic Inches, Size 2 Inches, Length 10-5/16 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 4

E983J-CAR

Type T Conduit Body, Volume 63 Cubic Inches, Size 2 Inches, Length 10-5/16 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 4
Cover, Conduit Body, Steel, Size 1 1/4 - 1 1/2 Inch

SC-64

Cover, Conduit Body, Steel, Size 1 1/4 - 1 1/2 Inch
Wire Basket Trapeze Support Bracket can be used to support baskets ranging from 4" wide through 12". It comes in an electro zinc plated finish. It comes packaged in quantities of 50 pcs

PWBTSBEZ

Wire Basket Trapeze Support Bracket can be used to support baskets ranging from 4" wide through 12". It comes in an electro zinc plated finish. It comes packaged in quantities of 50 pcs
1-1/4 Inch Gray Iron Form 8 Replacement Cast Cover

480F

1-1/4 Inch Gray Iron Form 8 Replacement Cast Cover
1-1/4 Inch 316 Stainless Steel Form 8 (T) Conduit Body, Cover and Gasket with Polished Finish

T48SST

1-1/4 Inch 316 Stainless Steel Form 8 (T) Conduit Body, Cover and Gasket with Polished Finish
1-1/2 Inch 316 Stainless Steel Form 8 (LB) Conduit Body, Cover and Gasket with Polished Finish

LB58SST

1-1/2 Inch 316 Stainless Steel Form 8 (LB) Conduit Body, Cover and Gasket with Polished Finish
2 Inch 316 Stainless Steel Form 8 (TB) Conduit Body, Cover and Gasket with Polished Finish

TB68SST

2 Inch 316 Stainless Steel Form 8 (TB) Conduit Body, Cover and Gasket with Polished Finish
3/4 Inch 316 Stainless Steel Form 8 (LU) Universal Conduit Elbow, Cover and Gasket with Polished Finish

LU28SST

3/4 Inch 316 Stainless Steel Form 8 (LU) Universal Conduit Elbow, Cover and Gasket with Polished Finish

Frequently Asked Questions

What conduit types is this male enlarger compatible with?

This male enlarger is designed for use with Rigid and IMC (Intermediate Metal Conduit) types.

What is the material of the ABB male enlarger?

The ABB male enlarger is constructed from durable malleable iron.

What conduit sizes does this enlarger connect?

This male enlarger connects a 1-1/4 Inch conduit to a 1-1/2 Inch conduit.
