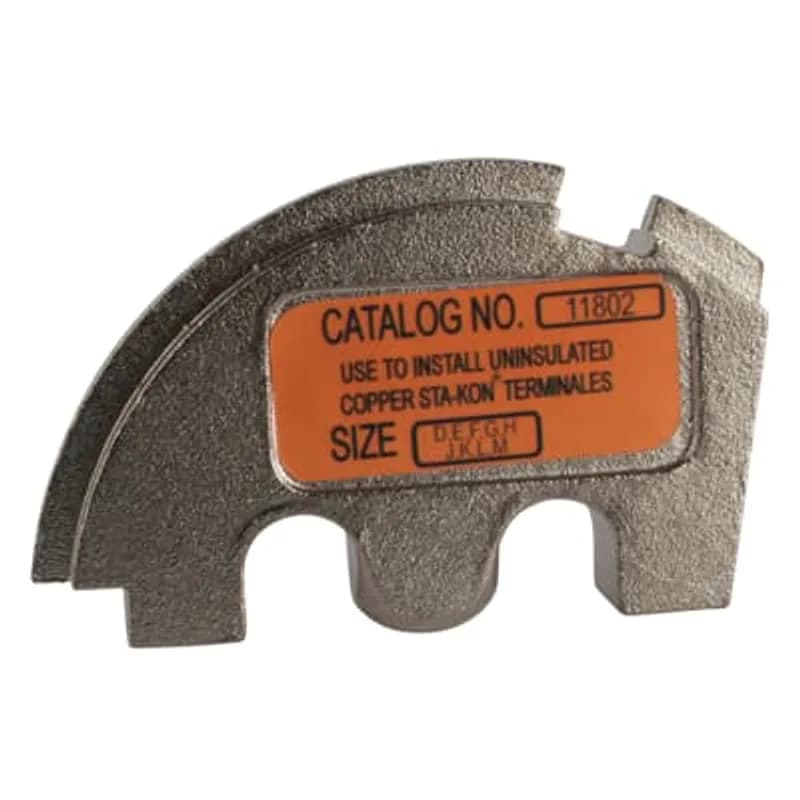

ABB - Installation Products 11802-TB - Indentor Movable Die for Tools TBM6, TBM6S and 25000 to crimp non-insulated D-M Series Sta-Kon Terminals

ABB Installation Products 11802-TB Indentor Movable Die for Tools TBM6, TBM6S and 25000 to crimp non-insulated D-M Series…

UPC: 786210359212


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 11802-TB Indentor Movable Die is a specialized component designed for use with ABB's TBM6, TBM6S, and 25000 crimping tools. This die facilitates the precise crimping of non-insulated D-M Series Sta-Kon terminals, ensuring secure and reliable electrical connections. Engineered for accuracy, the movable die mechanism ensures consistent terminal placement and proper deformation for optimal conductivity and mechanical strength. This component is essential for applications requiring the termination of D-M Series terminals, commonly found in industrial wiring, control panels, and equipment manufacturing where non-insulated connections are specified. The 11802-TB die is built to integrate seamlessly with the specified ABB crimping tools, maintaining the high standards of performance and durability associated with ABB Installation Products. Proper use of this die guarantees that D-M Series Sta-Kon terminals achieve the required crimp specifications for their intended electrical and mechanical load. Refer to tool and terminal documentation for specific crimping procedures and compatibility details. This die is a critical part of the crimping process for these specific terminal types and tools, ensuring the integrity of electrical connections in demanding industrial environments. Manufacturer: ABB - Installation Products. SKU: 11802-TB.
  • Movable die for precise crimping of non-insulated D-M Series Sta-Kon terminals
  • Compatible with ABB TBM6, TBM6S, and 25000 crimping tools
  • Ensures secure and reliable electrical connections
  • Facilitates consistent terminal placement and deformation
  • Essential for industrial wiring and control panel applications
