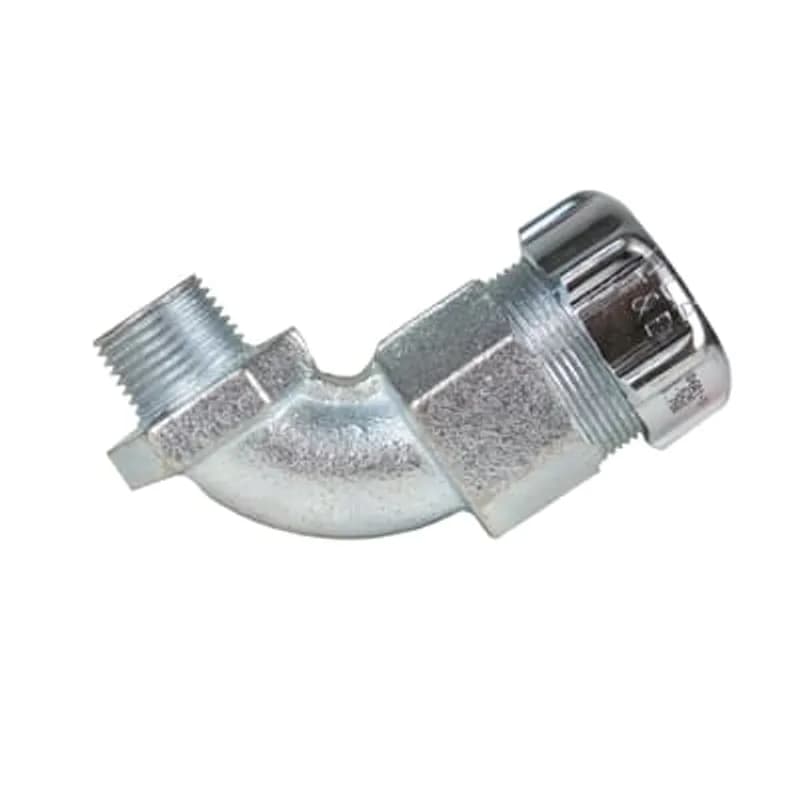

ABB Installation Products 10605 90 degres watertight fitting made of malleable iron with a protective grounding sleeve…
UPC: 786210106052
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 90-degree watertight fitting for jacketed metal-clad (MC) cable
- 3/4-inch tapered hub thread for secure conduit connections
- Malleable iron construction with protective grounding sleeve
- Neoprene bushing for cable diameters 1.055–1.205 inches
- Double-bevel sealing ring and safe-edge ground cone for abrasion resistance
Specifications
Color | Silver |
Material | Malleable Iron |
Size | 3/4 Inch |
Special Features | When using fittings on single conductor cable, aluminum fittings and aluminum locknuts must be used |
Standard | UL E38947, CSA 23086, CSA 4484 |
Type | Watertight Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.8300 L |
Package Weight (Metric) | 0.3770 kg |
10604-TB
90 degres watertight fitting made of malleable iron with a protective grounding sleeve for jacketed metal-clad cable. 3/4 inch hub thread size. Neoprene bushing 0.880-1.065 inches.
95138
Clamp-on service entrance cap for 4-inch EMT and rigid/IMC conduit. It is made of aluminum with a silver color and no additional finish. The enclosure is listed as Weatherhead.10603
90 degrees watertight fitting made of malleable iron with a protective grounding sleeve for jacketed metal-clad cable. 1/2 inch hub thread size. Neoprene bushing 0.875-0.985 inch.
10553
Watertight fitting made of malleable iron with a hub thread size of 2-1/2 inches Cable Jacket outside diameter is 2.535 to 2.75 inches.10606-TB
90 degres watertight fitting made of malleable iron with a protective grounding sleeve for jacketed metal-clad cable. 1 inch hub thread size. Neoprene bushing 1.187-1.375 inches.
How to Install a Jacketed Metal Clad Cable Connector (10605)
This guide provides step-by-step instructions for installing the 10605 jacketed metal clad cable connector with a set screw type grounding sleeve on Teck or jacketed MC type cable. Ensure all circuits are de-energized before beginning installation.
Estimated time: 20m
Tools needed:
Wire strippers, Screwdriver, Wrench
Supplies needed:
Jacketed Metal Clad Cable (Teck or MC type), 10605 Cable Connector, Protective Grounding Sleeve
- De-energize Circuits
CAUTION: RISK OF ELECTRICAL SHOCK. Before installing or maintaining, verify that all circuits are de-energized to prevent electrical shock.
- Strip Cable Jacketing
Strip off the cable jacketing to the length of the Protective Grounding Sleeve. Exercise caution to avoid nicking or cutting the conductor insulation during this process.
- Install Protective Grounding Sleeve
Slip the Protective Grounding Sleeve over the exposed armor of the cable.
- Insert Cable into Connector
Push the prepared cable into the connector body until it reaches the armor stop.
- Tighten Set-Screws
Tighten the set-screws to 35 in.-lbs or until the head of each screw is flush with the connector body. This secures the cable within the connector.
- Tighten Gland Nut
Tighten the gland nut firmly to complete the connection and provide a secure seal.
