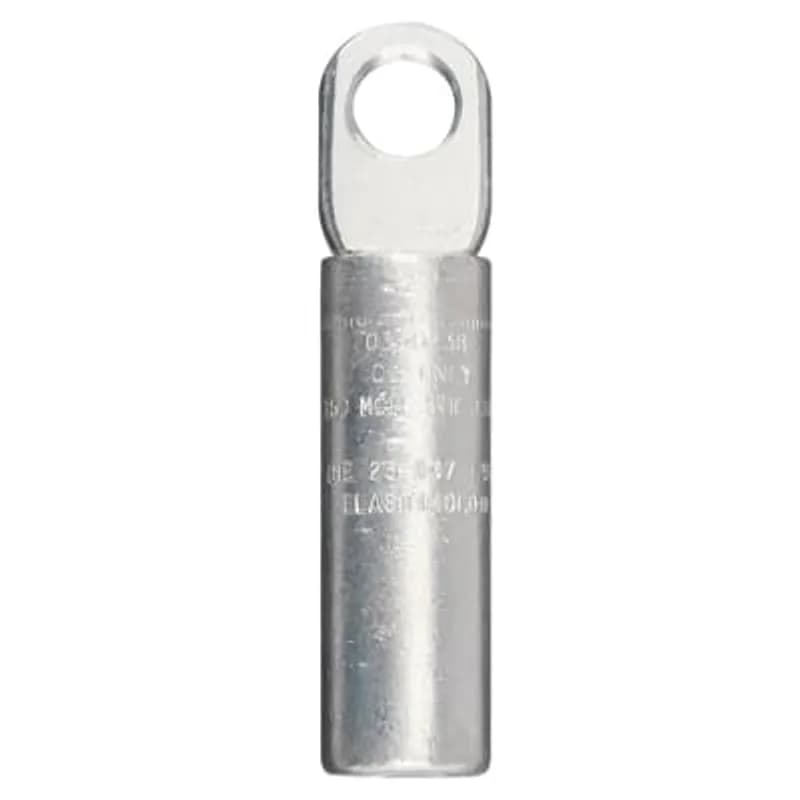

ABB Installation Products 03602330 15-35kV 600 Amp Series Deadbreak Threaded Compression Lug Stick-Op - Copper. Conductor…
UPC: 783786665785
Documents & Media
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Deadbreak-rated for 15-35kV systems at 600A continuous current
- Accommodates 500 kcmil (compressed stranded) and 600 kcmil (compacted solid) copper conductors
- Threaded compression design ensures gas-tight, secure terminations
- Hot-stick compatible for safe live-line installation and maintenance
- Compatible with Elastimold 15/25/35kV Class 600A deadbreak stick-op elbows and splices
Specifications
Amperage Rating | 600 A |
Application | Deadbreak Connection |
Cable Size | 500 kcmil , 600 kcmil |
Connection | Compression |
Connection Type | Threaded Compression Lug |
Current Rating | 600A |
Insulation | None |
Material | Copper |
Number Of Holes | 1 |
Series | 15-35kV 600A Series Deadbreak Threaded Compression Lug Stick-Op |
Size | 500 kcmil (compressed stranded), 600 kcmil (compacted solid) |
Special Features | Threaded |
Type | Compression Lug |
Voltage Rating | 15 to 35 kV |
Voltage Rating | 15-35kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.7000 L |
Package Weight (Metric) | 0.3180 kg |
13682
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 204210MT Dragon Tooth Terminals, Brown. .301/.289 Gaging
RDC1/0
Ratchet Drive Crimping Tool APPLICATIONS: Ratchet Drive Crimping Tool is for non-insulated terminals from 6 to 1/0 AWG and insulated terminals from 22 to 8 AWG. Rugged, compact, and lightweight. Requires minimum effort due to ratchet action, ensuring an excellent crimp every time. FEATURES: TYPE: Insulated and Uninsulated ACTION: Ratchet INSULATED USE: Terminals 22 to 8 AWG NON-INSULATED USE: Terminals 6 to 1/0 AWG MANUFACTURER: NSi Industries PART NUMBER: RDC 1/0 UPC: 662381055309
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
F4-PS-W-NP
Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
Frequently Asked Questions
What conductor sizes does the 03602330 connector support?
The 03602330 connector supports 500 kcmil stranded/compression conductors and 600 kcmil solid/compression conductors.
What items are included in the 03602XXX kit?
Each kit contains one 03602XXX connector and one Crimp Chart CC-0050.
What products are compatible with the 03602XXX connector?
The 03602XXX connector is designed for use with Elastimold 15/25/35kV Class 600A deadbreak stick-op elbow and splice products.
What conductor materials are compatible with this connector?
These connectors are designed to be used exclusively with copper conductors.
What is the current rating of this connector series?
The 03602XXX threaded compression lug series is rated for 600A applications.
What type of product is the 03602XXX?
The 03602XXX is an ALL 600A Threaded Compression Lug made of copper, specifically a threaded copper crimp barrel connector.
What products are compatible with the 03602XXX connector?
The 03602XXX connector is designed for use with Elastimold 15/25/35kV Class 600A deadbreak stick-op elbow and splice products.
What conductor sizes does the 03602330 connector support?
The 03602330 connector supports 500 kcmil stranded/compression conductors and 600 kcmil solid/compression conductors.
What items are included in the 03602XXX kit?
Each kit contains one 03602XXX connector and one Crimp Chart CC-0050.
What conductor materials are compatible with this connector?
These connectors are designed to be used exclusively with copper conductors.
