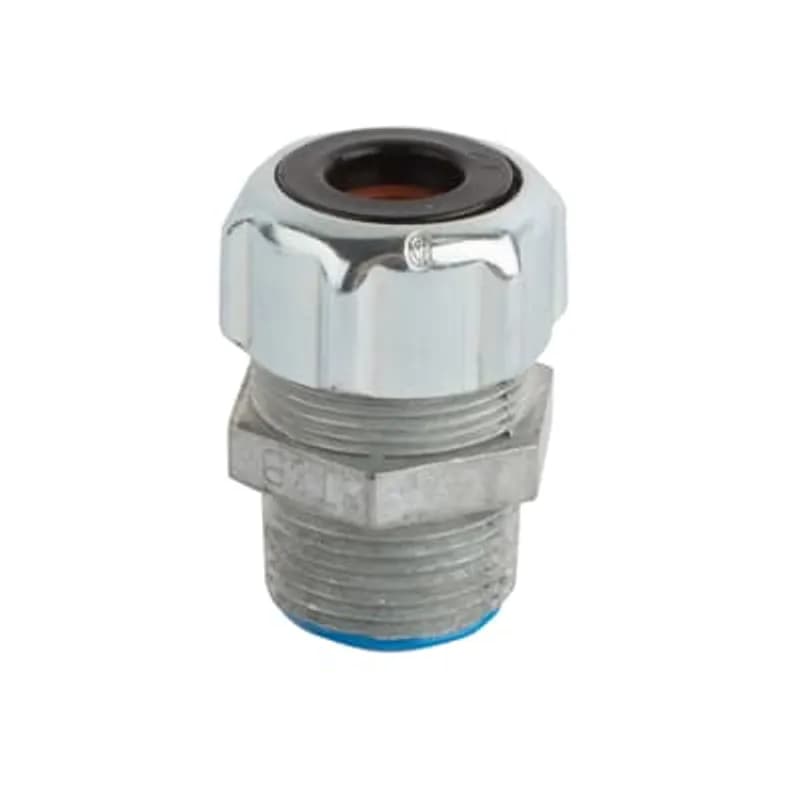

ABB - Installation Products 035-72775-20 - Insulated Watertight Strain Relief Connector, Straight, Cable Size 1.625 to 1.205 Inch, Malleable iron, Zinc Plated

ABB Installation Products 035-72775-20 Insulated Watertight Strain Relief Connector, Straight, Cable Size 1.625 to 1.205 Inch…

UPC: 786210937779


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB Insulated Watertight Strain Relief Connector (SKU: 035-72775-20) provides a secure and protected connection for electrical cables in demanding environments. Designed for straight-through cable entry, it effectively manages strain and ensures watertight integrity, crucial for preventing ingress of water and contaminants. The connector is engineered to accommodate cable sizes ranging from 1.625 to 1.205 inches in diameter, offering a precise fit for specific cable gauges. Constructed from durable malleable iron, it provides robust mechanical protection for the cable termination. The zinc plating enhances corrosion resistance, extending the service life of the connector, particularly in exposed or humid conditions. This type of strain relief connector is essential for maintaining the reliability and safety of electrical installations in industrial settings, marine applications, and outdoor infrastructure where environmental factors pose a risk to cable integrity. Its design focuses on practical functionality and material resilience, ensuring that the cable is securely anchored and protected against pulling forces and environmental exposure. The UNSPSC code for this product is 39121420, categorizing it within electrical fittings and components.
  • Insulated watertight strain relief connector
  • Straight conduit connection
  • Accommodates cable sizes from 1.625 to 1.205 inches
  • Constructed from durable malleable iron
  • Zinc plated for enhanced corrosion resistance

Specifications

Application
Provide Means for Passing a Cord Cable, Armored or Unarmored, Into an Enclosure, Through a Bulkhead or Into a Rigid Conduit
Connection Type
Strain Relief Connector
Finish
Zinc Plated
Material
Malleable Iron
Material
Malleable Iron, Zinc Plated
Size
1.625 to 1.205 Inch
Size
Cable Size 1.625 to 1.205 Inch
Type
Strain Relief Cord Connectors-Straight
Package Dimensions (L x W x H)
6 IN x 4.5 IN x 3 IN
Package Dimensions (L x W x H)
15.24 cm x 11.43 cm x 7.62 cm
Package Weight (Imperial)
0.5600 L
Package Weight (Metric)
0.2540 kg
