ABB - Electrification TMQ860RCUGEN - ReliaHome generator panels maintain power to such critical circuits as those for furnace, pump, refrigerator, and lights. It features a connected dual breaker mechanism that ensures that only one source is active at a time. Generator panels ensure safety and convenience when using a generator; with a 14,000 peak wattage, 11,520 continuous load, and 48 amps at 240 volts. The TMQ860RCUGEN features a main breaker, spaces for 8, 1" breakers, a 60A main bus ampere, a copper bus, and an outdoor suitable enclosure.
ABB - Electrification

TMQ860RCUGEN

UPC: 783164681109

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The ABB ReliaHome TMQ860RCUGEN generator panel is a robust, outdoor-rated solution designed to seamlessly transition between utility power and generator backup for residential applications. Engineered for reliability and safety, this panel ensures uninterrupted power to critical home circuits, including furnaces, pumps, refrigerators, air conditioning systems, water heaters, and lighting. The TMQ860RCUGEN is ideal for homeowners seeking a dependable backup power solution that adheres to National Electrical Code (NEC) Article 702 standards. Key features of the TMQ860RCUGEN include a connected dual breaker mechanism, which guarantees that only one power source is active at any given time, preventing backfeeding and ensuring safety for utility workers and equipment. The panel supports a peak wattage of 14,000 watts and a continuous load of 11,520 watts, delivering 48 amps at 240 volts. This makes it capable of handling high-demand appliances during power outages. The 60A main bus ampere rating, combined with space for up to 8 single-pole or double-pole 1" breakers, provides flexibility for customizing power distribution to essential circuits. The TMQ860RCUGEN is housed in a durable NEMA 3R outdoor enclosure, making it resistant to rain, snow, and dust. The copper bus ensures superior conductivity and longevity, while the factory-installed equipment ground kit simplifies installation. The panel is designed for top-feed wiring, with main wire sizes ranging from 6 AWG to 1/0 AWG for copper and 4 AWG to 1/0 AWG for aluminum, accommodating a wide range of wiring configurations. Installation is straightforward, and the panel is compatible with THQL series breakers (e.g., THQL2190ST1, THQL32090ST1) for both generator and utility connections. The interlocking circuit breakers ensure seamless switching between power sources, enhancing convenience and safety. Whether for emergency preparedness or routine maintenance, the ReliaHome TMQ860RCUGEN generator panel delivers unmatched performance and peace of mind for residential backup power systems.
  • Dual breaker interlock mechanism ensures only one power source is active at a time
  • Supports 14,000 peak watts and 11,520 continuous load at 48 amps, 240V
  • Outdoor NEMA 3R enclosure for durability in harsh weather conditions
  • 60A main bus ampere with space for up to 8 single-pole or double-pole 1" breakers
  • Copper bus for superior conductivity and factory-installed ground kit for easy installation

Specifications

Amperage Rating
60A A
Amperage Rating
60 A
Connection Type
Top-feed wiring (6 AWG to 1/0 AWG copper, 4 AWG to 1/0 AWG aluminum)
Current Rating
48 A
Enclosure
Outdoor
Interrupt Rating
22 22
Load Regulation
120/240V ac
Material
Copper
NEMA Rating
NEMA 3R
Number Of Feeders
Either
Phase
1
Series
RELIAHOME
Series
ReliaHome T-Series
Standard
UL
Voltage Rating
240 V
Wiring Configuration
3-Wire
Wiring Configuration
3 Wire
Package Dimensions (L x W x H)
12.75 IN x 12 IN x 5 IN
Package Dimensions (L x W x H)
32.385 cm x 30.48 cm x 12.7 cm
Package Weight (Imperial)
11.230 L
Package Weight (Metric)
5.094 kg

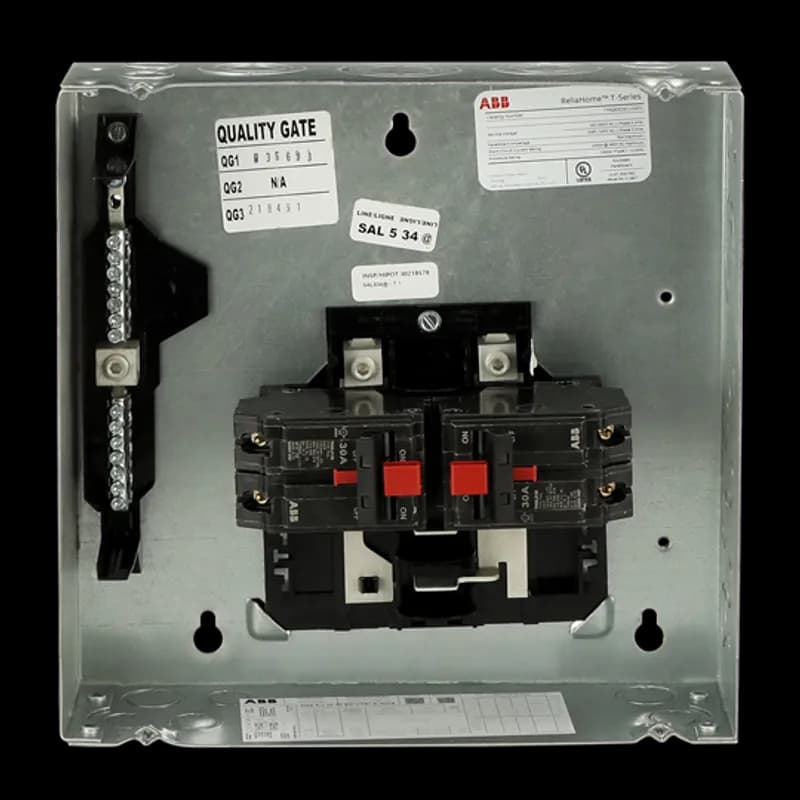

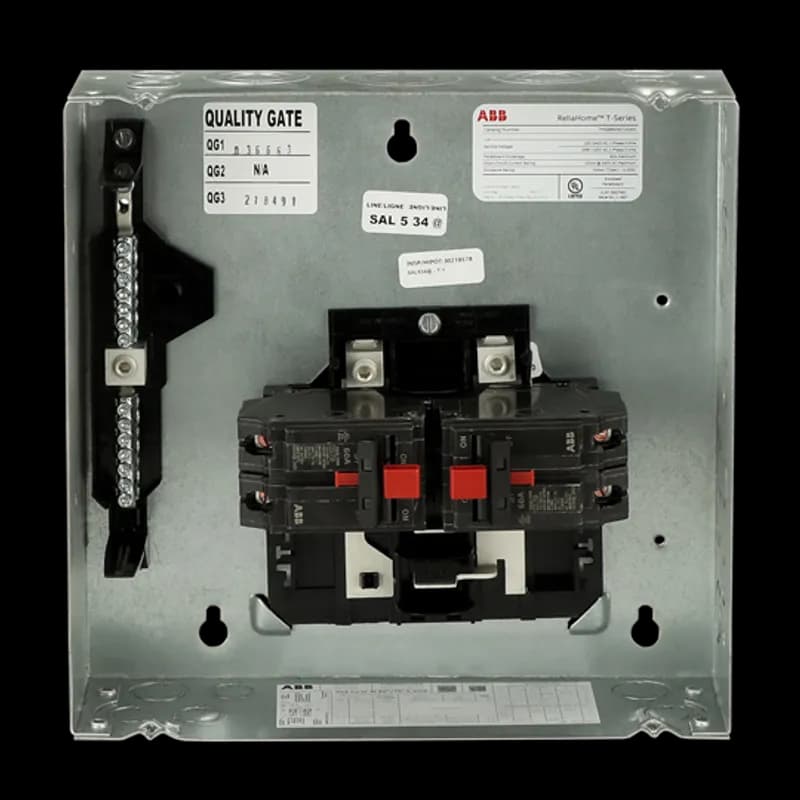

ReliaHome generator panels maintain power to such critical circuits as those for furnace, pump, refrigerator, and lights. It features a connected dual breaker mechanism that ensures that only one source is active at a time. Generator panels ensure safety and convenience when using a generator; with a 14,000 peak wattage, 11,520 continuous load, and 48 amps at 240 volts. The TMQ830FCUGEN features a main breaker, spaces for 8, 1" breakers, a 300A main bus ampere, a copper bus, and a flush enclosure.
