Overview

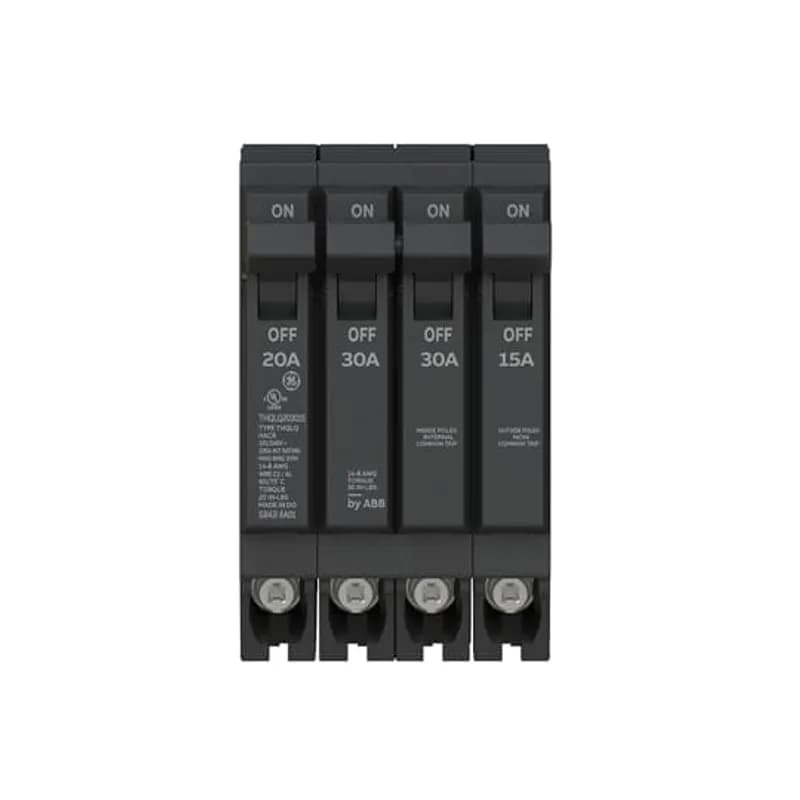

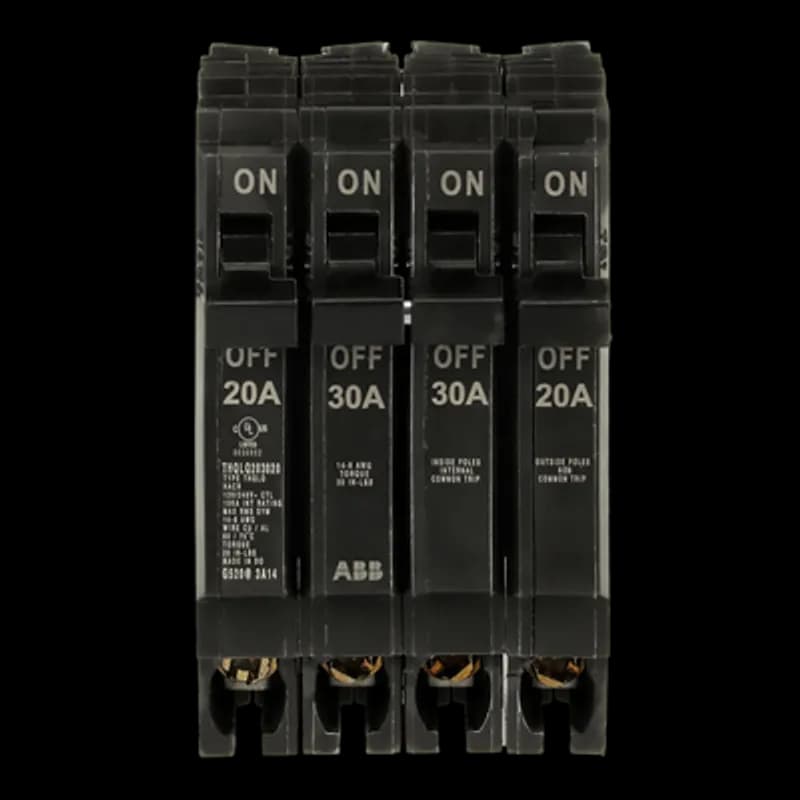

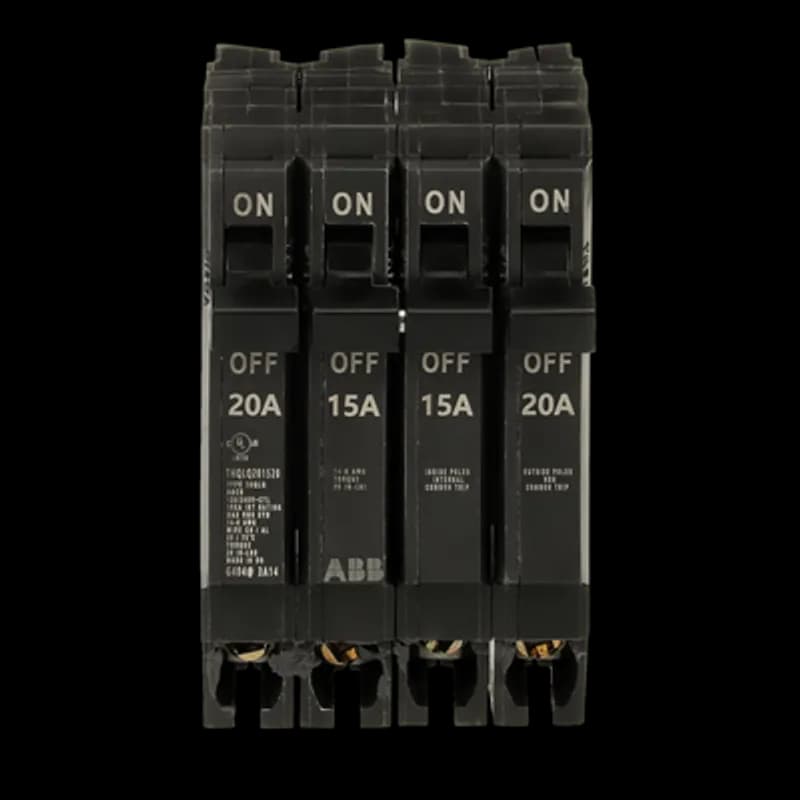

Maximize your panel space with the ABB THQLQ203020 Tandem/Quad Circuit Breaker, designed to deliver twice the circuits in the same panel space without compromising performance or compliance. Engineered for compatibility with both new and existing single-phase ABB and GE by ABB PowerMark™ load centers, this 2-pole plus ground (2P+G) breaker ensures seamless integration with or without wing stabs. Ideal for residential, commercial, and light industrial applications, the THQLQ203020 meets stringent electrical codes while optimizing circuit density for modern electrical systems. Its compact design allows for efficient use of panel real estate, reducing the need for costly panel upgrades or expansions. Trust ABB’s legacy of innovation and reliability to enhance your electrical infrastructure with a solution that balances space efficiency, compliance, and performance. Whether you're retrofitting an older system or designing a new installation, the THQLQ203020 provides a cost-effective, code-compliant solution for doubling circuit capacity in constrained spaces.
  • Doubles circuit capacity in the same panel space
  • Compatible with ABB and GE by ABB PowerMark™ load centers
  • Supports single-phase applications with or without wing stabs
  • 2-pole plus ground (2P+G) configuration for enhanced safety
  • US-made, code-compliant design for reliability and compliance

Specifications

Amperage Rating
20-30-20A
Application
Thermal Magnetic
Connection
(2) # 14-8 CU/ #12-8 AL
Frame
Q-Line
Interrupt Rating
10kA@120 Vac<br>10kA@120/240 Vac
Load Rating
HACR<br>SWD
Number Of Poles
2-1p+1-2p
Number Of Poles
2
Poles
2P+G
Standard
E11592
Trip Range
Non-Interchangeable
Trip Range, Maximum
Non-Interchangeable
Trip Range, Minimum
Non-Interchangeable
Trip Type
LI
Voltage Rating
120/240 V
Package Dimensions (L x W x H)
0.001 IN x 0.001 IN x 0.001 IN
Package Dimensions (L x W x H)
0.0025 cm x 0.0025 cm x 0.0025 cm
Package Weight (Imperial)
0.187 L
Package Weight (Metric)
0.085 kg

Similar Products

THQLQ203015

Amperage Rating: 20-30-15A

THQLQ203520

Current Rating: 20A/1P, 35A/2P, 20A/1P

Poles: 1P, 2P, 1P

Series: THQLQ

THQLQ203520A

THQLQ202020

Amperage Rating: 20-20-20A

Voltage Rating: 120/240 Vac

Current Rating: 20 A

THQLQ204020

Connection: (2) # 14-8 CU/ #12-8 AL, #8-4 CU for 40a 2/pole

Amperage Rating: 20-40-20A

THQLQ205020
