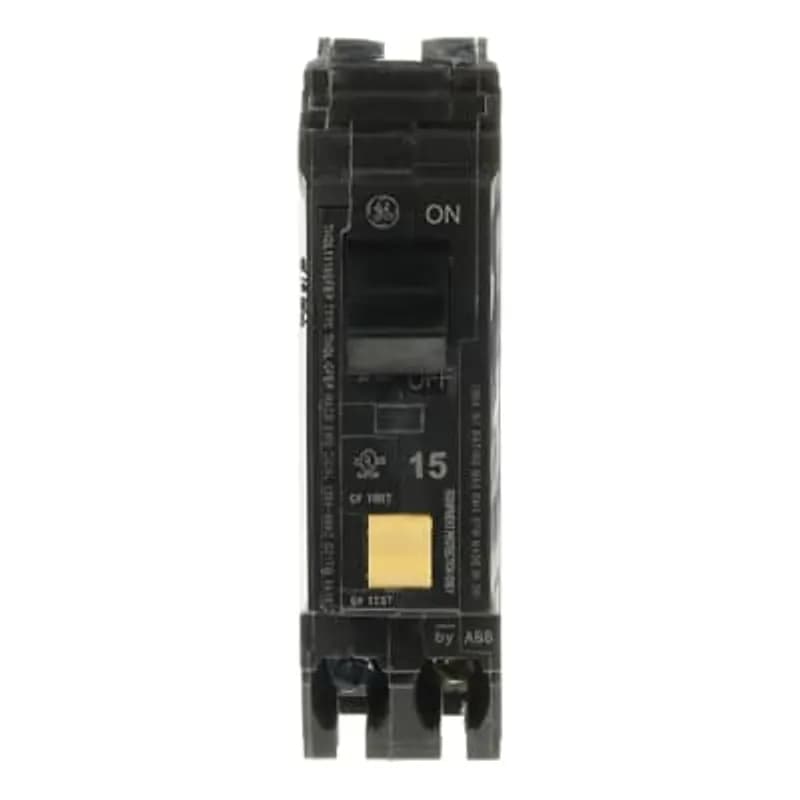

ABB - Electrification THQL1115GFEP - In addition to the Ground Fault circuit interrupter breaker, the Ground Fault breaker with equipment protection specializes in protecting your electronics and technology from damage resulting from harmful currents. The THQL1115GFEP features 1 pole, an amperage rating of 15 A, an interrupting rating of 10kAIC, and a voltage rating of 120/240V.
ABB - Electrification

THQL1115GFEP

UPC: 783164321050

Contact for Pricing

Overview

The ABB THQL1115GFEP Ground Fault Circuit Interrupter (GFCI) breaker with equipment protection is engineered to safeguard sensitive electronics and technology from harmful ground fault currents. Designed for residential and light commercial applications, this 1-pole breaker delivers precise protection with a 15-ampere rating and a 10kAIC interrupting capacity, ensuring reliable performance under fault conditions. Unlike standard breakers, the THQL1115GFEP integrates advanced ground fault detection to prevent equipment damage from leakage currents as low as 5mA. This makes it ideal for protecting high-value electronics, data centers, medical equipment, and other critical systems where power quality and uptime are paramount. The breaker’s 120/240V voltage rating ensures compatibility with common North American electrical systems, while its compact 1-pole design simplifies installation in standard load centers.
  • 15A 1-pole breaker with ground fault and equipment protection
  • 10kAIC interrupting rating for superior fault handling
  • 5mA ground fault sensitivity to safeguard electronics
  • 120/240V compatibility for residential and light commercial use
  • UL-listed and manufactured by ABB – Electrification

Specifications

Amperage Rating
15 A
Connection
14-8 Cu/12-8 Al
Connection Type
Standard Load Center
Current Rating
15 A
Interrupting Rating
10 kAIC
Number Of Poles
1
Poles
1
Poles
1P
Series
THQL
Special Features
In addition to the Ground Fault circuit interrupter breaker, the Ground Fault breaker with equipment protection specializes in protecting your electronics and technology from damage resulting from harmful currents. The THQL1115GFEP features 1 pole, an amperage rating of 15 A, an interrupting rating of 10kAIC, and a voltage rating of 120/240V.
Voltage Rating
120/240 V
Voltage Rating
120/240 Vac
Package Dimensions (L x W x H)
1.5 IN x 5.5 IN x 6.75 IN
Package Dimensions (L x W x H)
3.81 cm x 13.97 cm x 17.145 cm
Package Weight (Imperial)
0.001 L
Package Weight (Metric)
0.001 kg

Similar Products

THQL1115GFTP

THQL1115GFT

Frame: Q-Line

Load Rating: HACR

Trip Type: LIG

THQL1115GFTS

Application: Thermal Magnetic

Trip Range: Non-Interchangeable

Load Rating: HACR, SWD

THQL1115AF2

Frame: Q-Line

Load Rating: HACR / SWD

Standard: E11592

THQL1115AF2S

Application: Thermal Magnetic

Standard: 1699

Connection Type: Pigtail

THQL1115DF

Connection: #14-8 AWG

Frame: Q-Line

Load Rating: HACR, SWD

You May Also Be Interested In

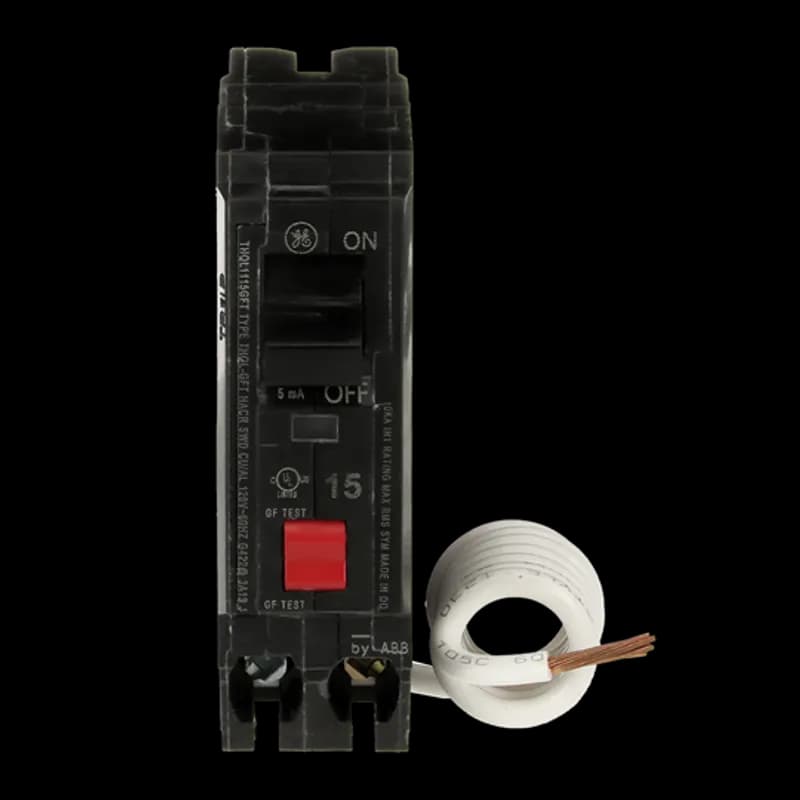

The short pigtail ground fault circuit interrupter (GFCI) breakers provide protection of receptacles located in the outdoors, in bathrooms, garages and spa areas. This applies to not only to new construction, but also to existing homes. When an electrical outlet is replaced in a location that requires ground-fault protection, the new outlet must be GFCI approved according to the NEC. All Q Line circuit breakers are one inch wide per pole, compact devices that feature: Quick-make / Quick-break mechanisms, common trip bars, and easy-to-spot trip indications to ensure safety and reliability as well as meets 2020 NEC standards. The THQL1115GFT breaker features reduced neutral wire length of 2 ", ground fault interrupting techonology, 1 pole, an ampere rating of 15 A, an interrupting rating of 10kAIC, and a voltage rating of 120/240V.

THQL1115GFTS

1P 15AMP 10KAIC PON GROUND FAULT

THQL1115PGFT

2P 15AMP 10KAIC PON GROUND FAULT

THQL2115PGFT

BRKR AFCI/GFCI 15A 1P 120V 10K PLUG-IN

THQL1115DF

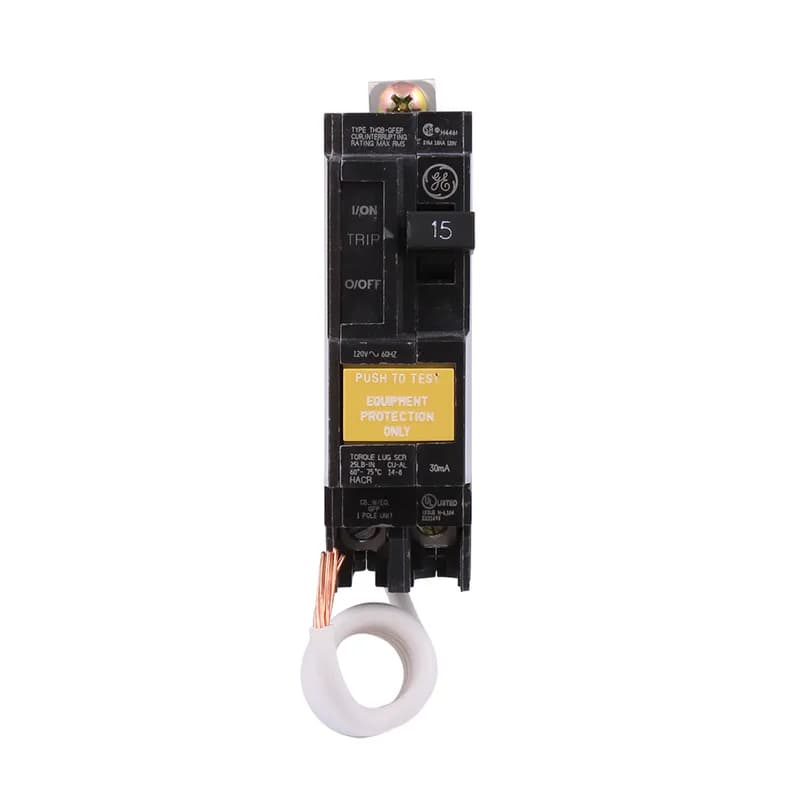

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. GFEP Amps 15 A
