THQB22070
UPC: 783164012361
Contact for Pricing
Overview
- 2-Pole, 70 Ampere Rating
- Bolt-on mounting for load centers and panels
- 10,000 AIC (Amperes Interrupting Capacity)
- 240 Vac operating voltage
- Quick-make / Quick-break mechanism for safety
- Rated 10,000 AIC and 240 Vac, UL 489 compliant
- Compatible with auxiliary contact and shunt trip accessories
- Designed for bolt-on mounting to load centers and lighting panels
Specifications
Connection Type | Bolt-on |
Current Rating | 70 A |
Material | Thermal-magnetic |
Mounting Type | Bus connections of load centers and lighting panels |
Mounting Type | Bus connection |
Poles | 2 |
Poles | 2-Pole |
Poles | 1, 2, or 3 pole |
Series | Q Line |
Size | 1-inch wide per pole |
Size | 1-inch per pole |

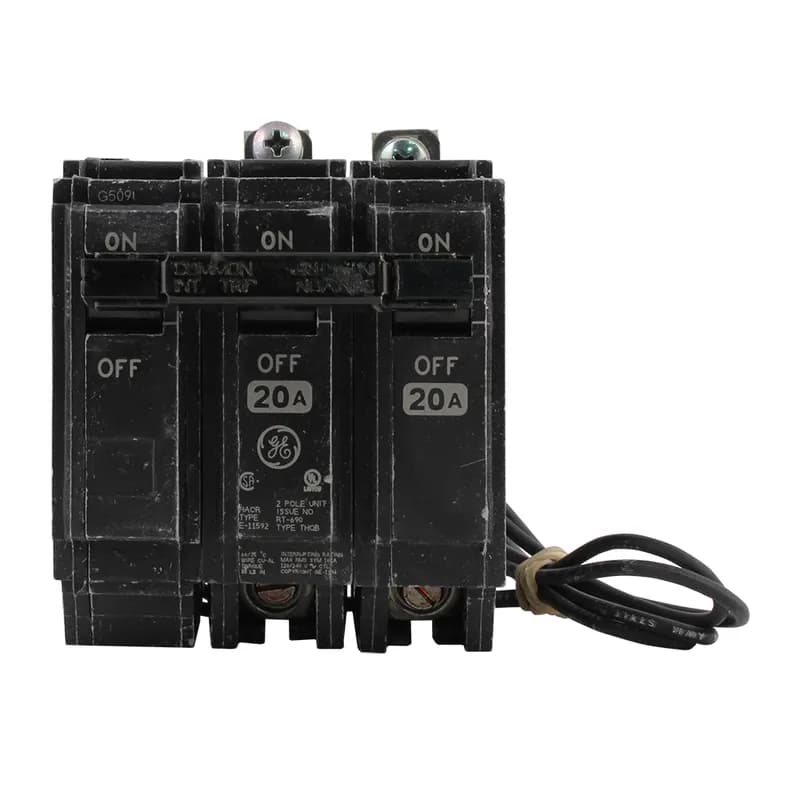

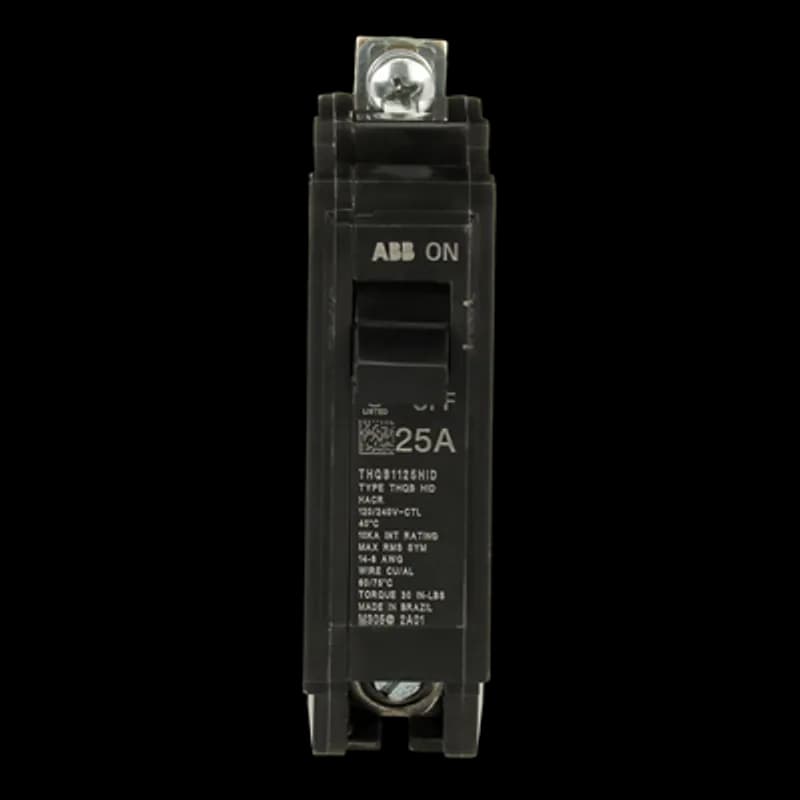

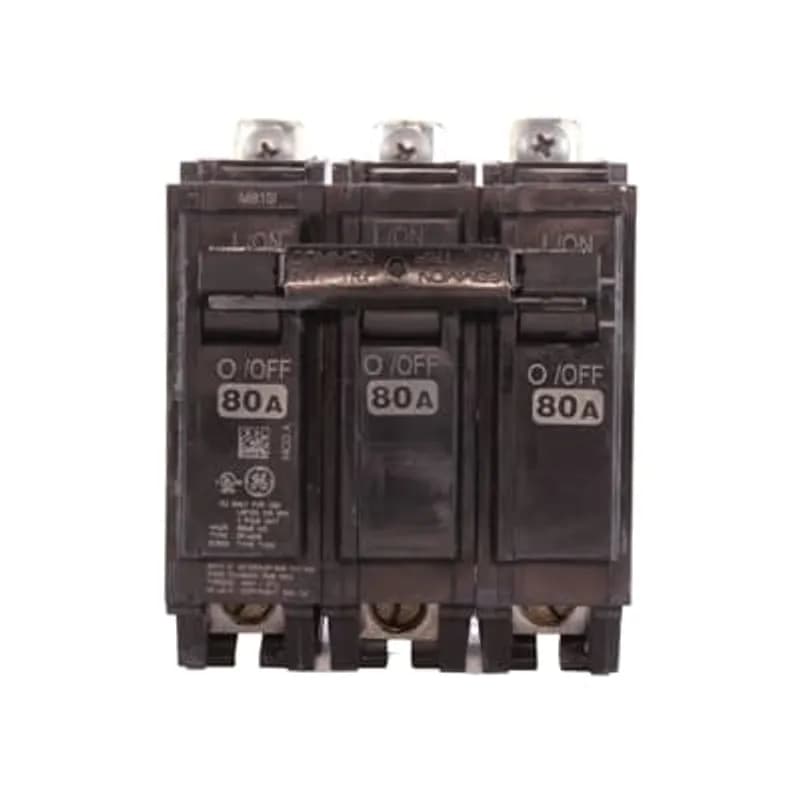

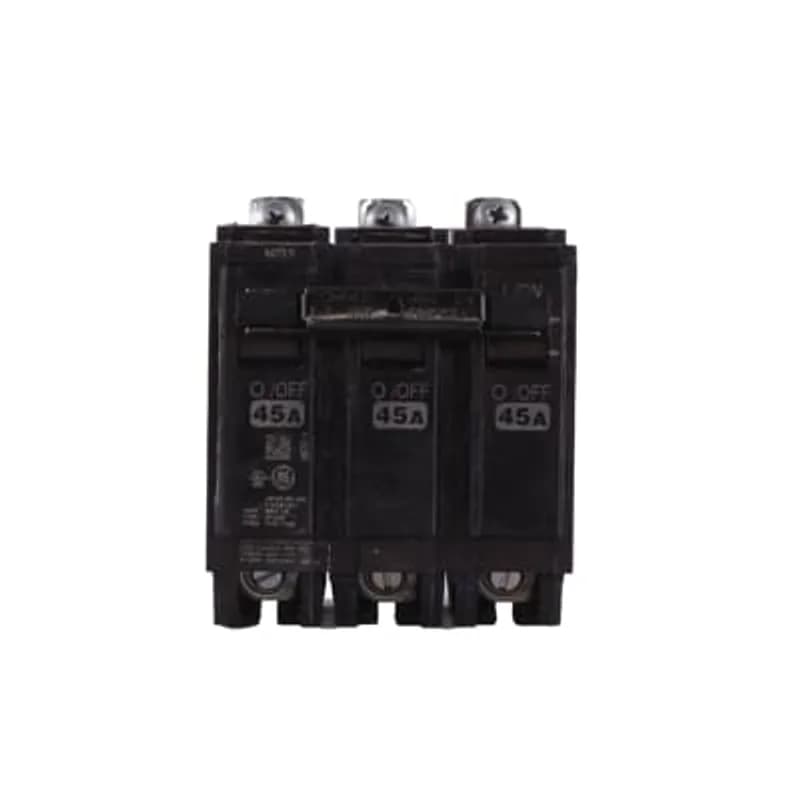

Special Features | Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. 2070 Amps 70 A |
Voltage Rating | 240 Vac |
Package Dimensions (L x W x H) | 3 IN x 2 IN x 3.75 IN |
Package Dimensions (L x W x H) | 7.62 cm x 5.08 cm x 9.525 cm |
Package Weight (Imperial) | 0.805 L |
Package Weight (Metric) | 0.365 kg |
Frequently Asked Questions
What is the interrupting rating of the THQB22070?
The THQB22070 has an interrupting rating of 10,000 AIC.
What voltage rating does the THQB22070 support?
The THQB22070 supports a voltage rating of 240 Vac.
What standards does the THQB22070 meet?
The THQB22070 is built and tested to UL 489 and cUL standards.
What is the mounting type for the THQB22070?
The THQB22070 is a bolt-on circuit breaker designed for secure mounting to bus connections.
What is the pole configuration of the THQB22070?
The THQB22070 is a 2-pole circuit breaker.
Does the THQB22070 include a common trip bar?
Yes, the THQB22070 features an integrated common trip bar for simultaneous pole tripping.
Is the THQB22070 compatible with auxiliary contacts?
Yes, the THQB22070 can be ordered with auxiliary contact accessories for remote signaling.
Can the THQB22070 be used in HID applications?
Yes, the THQB22070 is available for use in High-Intensity Discharge (HID) applications.
How to Install the ABB THQB22070 Q Line Circuit Breaker
Step-by-step guide to securely install the ABB THQB22070 bolt-on circuit breaker in load centers or lighting panels.
Estimated time: 15m
Tools needed:
Screwdriver, Crimping tool (for wire connections)
Supplies needed:
Mounting screws, Bus bar connection, Wiring
- Prepare the mounting surface
Ensure the bus bar connections in the load center or lighting panel are clean and free of debris. Verify compatibility with the THQB22070 bolt-on design.
- Position the circuit breaker
Align the THQB22070 with the designated slot on the bus bar. Ensure the breaker’s mounting tabs engage securely with the bus bar.
- Secure the circuit breaker
Fasten the breaker to the bus bar using the provided mounting screws. Tighten screws to the manufacturer’s specified torque to ensure a stable electrical connection.
- Connect the wiring
Attach the load and line wires to the breaker’s terminals. Use a crimping tool to secure wire connections and ensure proper torque for reliable electrical contact.
- Verify installation
Visually inspect the breaker for secure mounting and proper wire connections. Perform a functional test by energizing the circuit and confirming normal operation.
