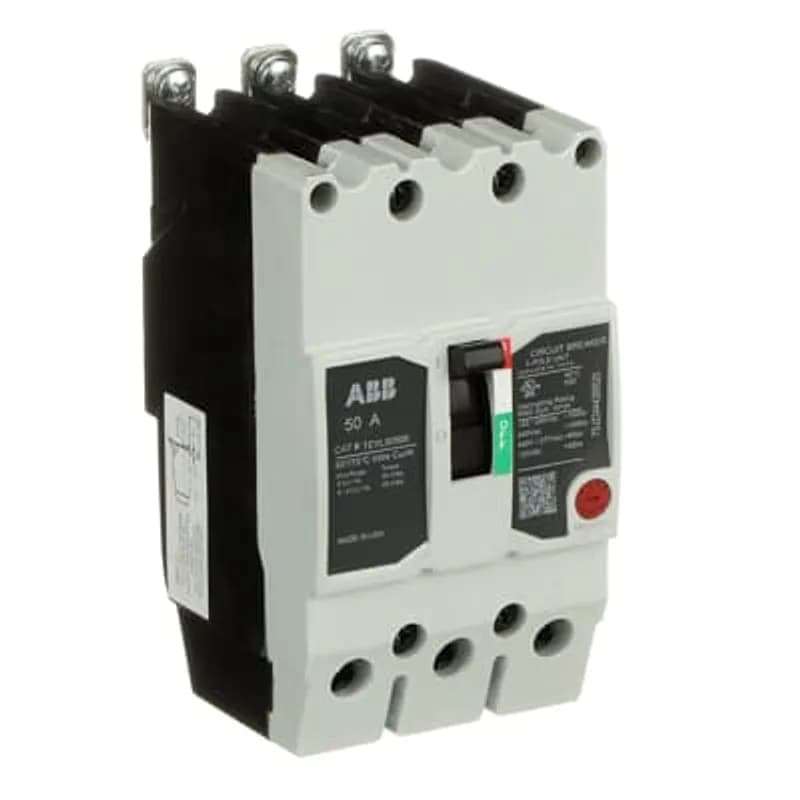

ABB - Electrification TEYL3050B - The TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEYL breakers are available in 1, 2, and 3 pole versions 2&3 pole versions can be ordered with auxiliary contact, shunt trip, undervoltage release, or bell alarm accessories. TEYX CIRCUIT BREAKER 3P 50A
ABB - Electrification

TEYL3050B

UPC: 783164462586

Contact for Pricing

Overview

The ABB TEYX 3-Pole Circuit Breaker (SKU: TEYL3050B) is a compact, 1-inch wide per pole, bolt-on thermal-magnetic circuit breaker engineered for reliable protection on grounded 480Y/277 Vac systems. Its versatile bolt-on mounting base accessory enables seamless integration into varied applications, functioning effectively as a lug-lug breaker. Engineered for safety and operational integrity, all TEY circuit breakers incorporate robust Quick-make / Quick-break mechanisms, ensuring rapid and decisive circuit interruption. Common trip bars provide unified protection across all poles, while easily identifiable trip indication offers clear visual confirmation of fault events. TEYL breakers are available in 1, 2, and 3-pole configurations. The 2 and 3-pole versions offer enhanced functionality with optional accessories, including auxiliary contacts for remote signaling, shunt trip units for remote tripping, undervoltage releases for protection against voltage fluctuations, and bell alarm accessories for audible fault notification. This 50 Amp, 3-pole model is ideal for demanding industrial and commercial power distribution applications where dependable circuit protection is paramount. Manufactured in the USA, the TEYX series embodies ABB's commitment to quality and performance in electrical safety.
  • Compact 1-inch wide per pole design
  • Bolt-on mounting for versatile lug-lug applications
  • Quick-make / Quick-break mechanisms ensure safety
  • Common trip bars for unified pole protection
  • Easy-to-spot trip indication for clear fault identification

Specifications

Amperage Rating
50A
Application
Thermal Magnetic
Connection
#10-#4
Connection Type
Lug-lug
Current Rating
50 A
Frame
TEYL
Interrupt Rating
100kA@120/240 Vac,100kA@240 Vac,65kA@480Y/277 Vac, 42kA@125 Vdc,35kA@250 Vdc
Mounting Type
Bolt-On
Number Of Poles
3
Poles
3P
Series
TEY
Special Features
The TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEYL breakers are available in 1, 2, and 3 pole versions 2&3 pole versions can be ordered with auxiliary contact, shunt trip, undervoltage release, or bell alarm accessories. TEYX CIRCUIT BREAKER 3P 50A
Standard
E11592
Trip Range
Yes
Trip Range, Maximum
Yes
Trip Range, Minimum
Yes
Trip Type
LI
Voltage Rating
480Y/277 VAC
Package Dimensions (L x W x H)
5.375 IN x 3 IN x 3.5 IN
Package Dimensions (L x W x H)
13.6525 cm x 7.62 cm x 8.89 cm
Package Weight (Imperial)
3.250 L
Package Weight (Metric)
1.474 kg

Similar Products

TEYL3020B

Amperage Rating: 20A

Connection: #14-#10

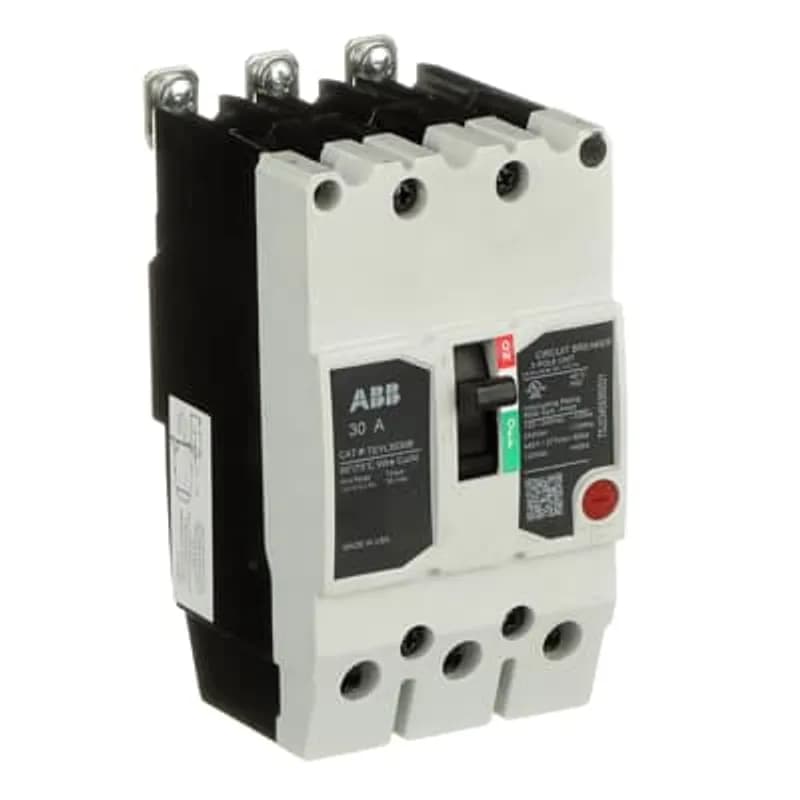

TEYL3030B

Amperage Rating: 30A

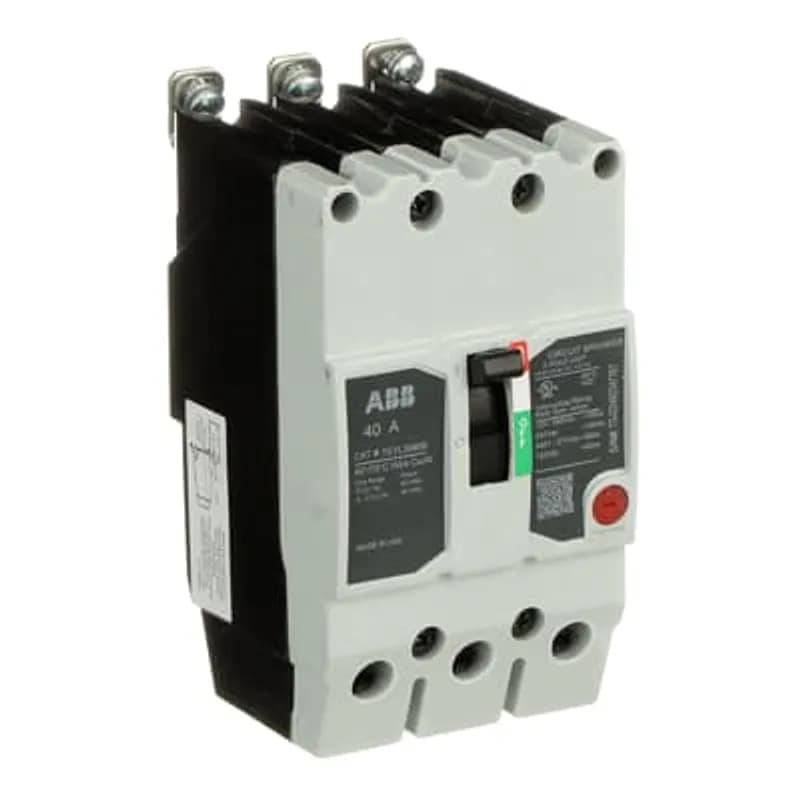

TEYL3040B

Amperage Rating: 40A

TEYL3060B

Amperage Rating: 60A

Current Rating: 60 A

Poles: 3

TEYL3070B

Connection: #4-2/0

Amperage Rating: 70A

Current Rating: 70 A

TEYL3080B

Connection: #4-2/0

Amperage Rating: 80A

You May Also Be Interested In

The TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEYL breakers are available in 1, 2, and 3 pole versions 2&3 pole versions can be ordered with auxiliary contact, shunt trip, undervoltage release, or bell alarm accessories. TEYx Circuit Breaker 3P 100A

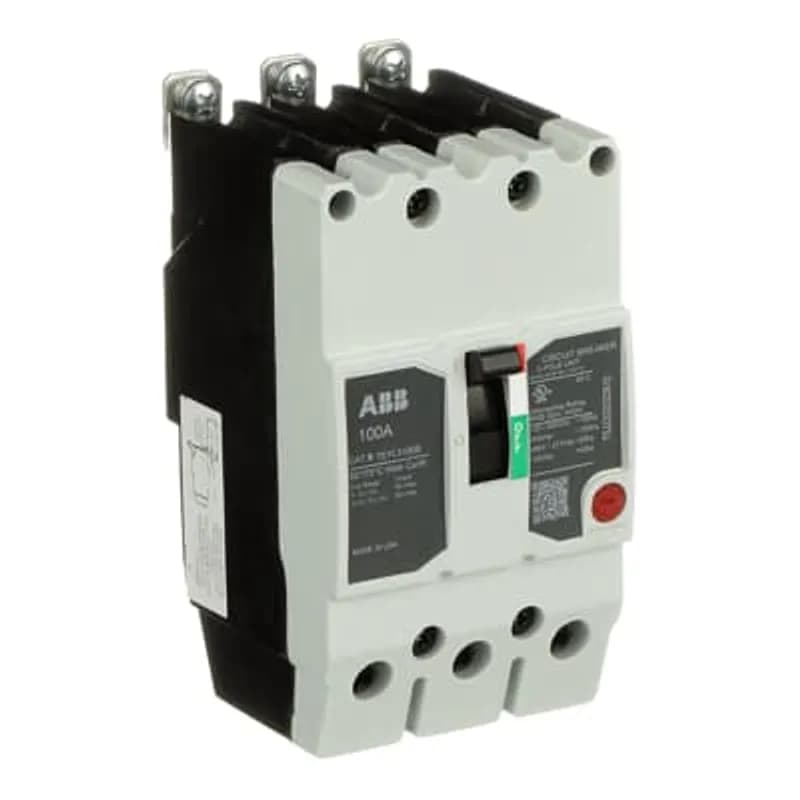

TEYL3100B

The TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEYL breakers are available in 1, 2, and 3 pole versions, 2&3 pole versions can be ordered with auxiliary contact, shunt trip, undervoltage release, or bell alarm accessories. TEYX CIRCUIT BREAKER 3P 80A

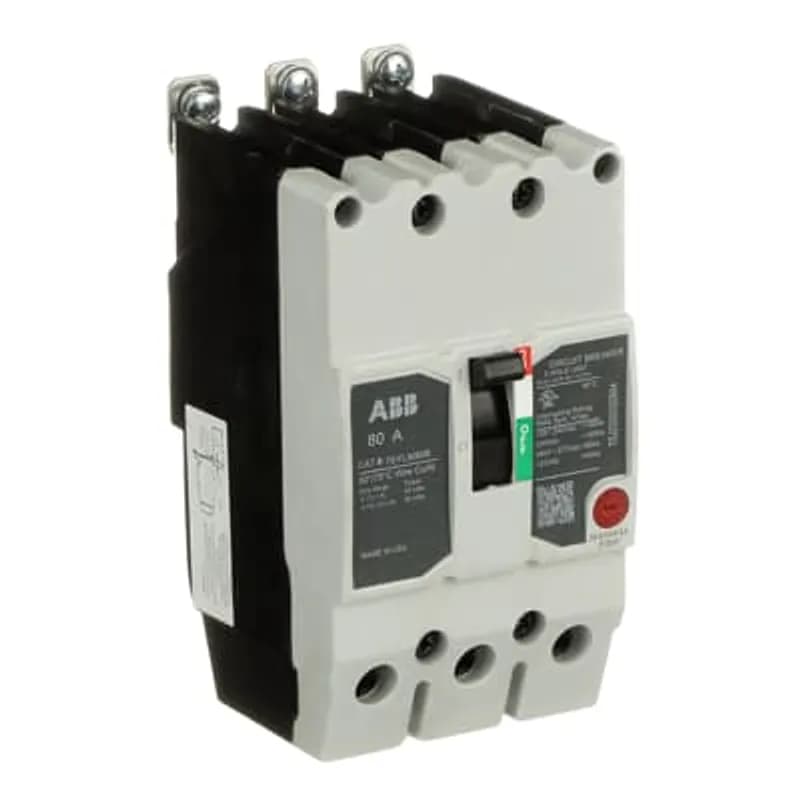

TEYL3080B
