ABB - Electrification SU201MR-K10 - SU201MR-K10 MCB K-Char., 10kA, 10A, 1P, RTT UL 489, Ring Cable Lug
ABB - Electrification

SU201MR-K10

Contact for Pricing

Overview

The ABB SU201MR-K10 Miniature Circuit Breaker (MCB) is engineered for robust and reliable circuit protection in demanding industrial and commercial environments. This 1-pole device boasts a 10A current rating and a significant 10kA breaking capacity, ensuring effective safeguarding against overloads and short circuits. Crucially, the SU201MR-K10 is UL 489 certified, a vital compliance standard for electrical equipment used in North America, guaranteeing adherence to stringent safety regulations. Installation is streamlined thanks to its integrated ring cable lug connection, which simplifies wiring and reduces assembly time for panel builders and electrical contractors. This feature contributes to efficient project execution and maintenance. Key features and benefits include: * **High Breaking Capacity:** 10kA rating provides substantial protection against fault currents. * **UL 489 Certified:** Meets rigorous North American safety standards for industrial applications. * **Convenient Ring Cable Lug:** Facilitates secure and efficient electrical connections. * **1-Pole Configuration:** Ideal for single-phase circuits and space-constrained panels. * **Durable Construction:** Built by ABB Electrification for longevity and consistent performance.
  • ABB SU201MR-K10 Miniature Circuit Breaker (MCB)
  • 10A Current Rating, 1-Pole Configuration
  • 10kA Breaking Capacity for robust fault protection
  • UL 489 Certified for North American industrial safety standards
  • Integrated Ring Cable Lug for simplified and secure connections

Specifications

Amperage Rating
10 A
Amperage Rating, Maximum
10 A
Amperage Rating, Minimum
10 A
Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
Connection Type
Ring Cable Lug
Current Rating
10 A
Number of Poles
1
Poles
1P
Series
SU200MR
Size
82x110x108mm
Special Features
SU201MR-K10 MCB K-Char., 10kA, 10A, 1P, RTT UL 489, Ring Cable Lug
Standard
RoHs, CSA, cUL, CE, GOST
Trip Type
K
Tripping Characteristic
K
Type
Contactors
Voltage Rating
(277 V AC) / (48 V DC)
Package Dimensions (L x W x H)
4.72 IN x 1.57 IN x 3.27 IN
Package Dimensions (L x W x H)
11.9888 cm x 3.9878 cm x 8.3058 cm
Package Weight (Imperial)
0.600 L
Package Weight (Metric)
0.272 kg

Similar Products

SU201MR-K1

Amperage Rating, Maximum: 1 A

Amperage Rating, Minimum: 1 A

Amperage Rating: 1 A

SU201MR-K1.6

Current Rating: 1.6 A

Series: SU201MR

SU201MR-K13

Current Rating: 13 A

Series: SU201MR

SU201MR-K15

Amperage Rating, Maximum: 15 A

Amperage Rating, Minimum: 15 A

Amperage Rating: 15 A

SU201MR-K16

SU201MR-K20

Amperage Rating: 20 A

You May Also Be Interested In

SU202MR-K10 MCB K-Char., 10kA, 10A, 2P, RTT UL 489, Ring Cable Lug

SU202MR-K10

SU201MR-K1 MCB K-Char., 10kA, 1A, 1P, RTT UL 489, Ring Cable Lug

SU201MR-K1

SU201MR-K3 MCB K-Char., 10kA, 3A, 1P, RTT UL 489, Ring Cable Lug

SU201MR-K3

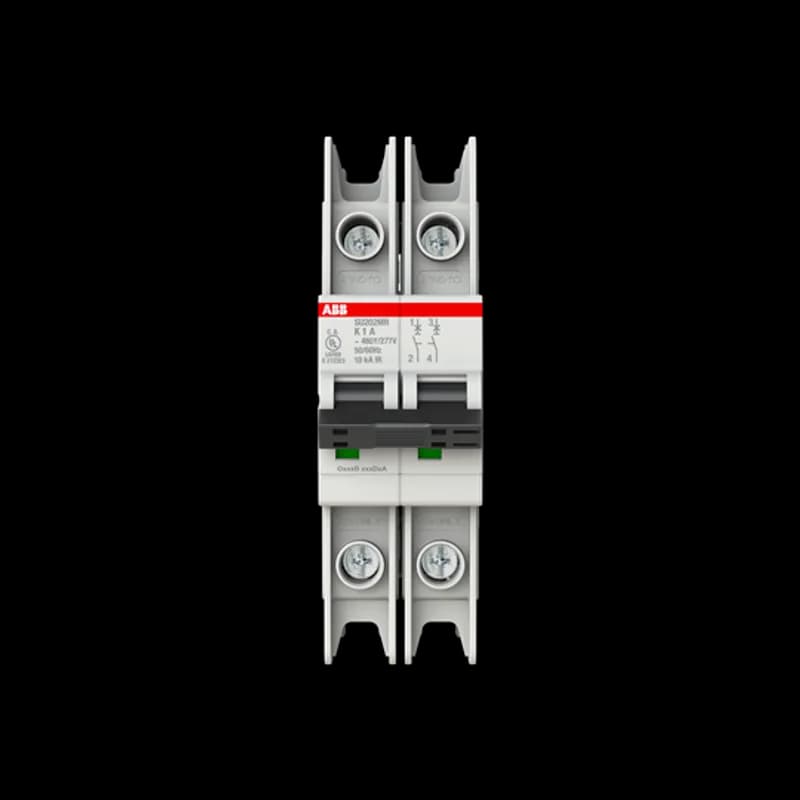

SU202MR-K1 MCB K-Char., 10kA, 1A, 2P, RTT UL 489, Ring Cable Lug
