ABB - Electrification ST203M-C2 - ST203M-C2 Miniature Circuit Breaker ST203M-C2 Miniature Circuit Breaker C-Char., 10kA, 2A, 3P
ABB - Electrification

ST203M-C2

Contact for Pricing

Overview

The ABB ST203M-C2 Miniature Circuit Breaker (SKU: ST203M-C2) offers reliable electrical protection for industrial and commercial systems. This 3-pole (3P) device features a rated current of 2A and a short-circuit breaking capacity of 10kA. Its C-characteristic trip curve is optimized for applications with moderate inrush currents, such as lighting circuits, small motors, and control systems, ensuring prompt tripping during overloads and short circuits without nuisance tripping from normal startup surges. Engineered by ABB - Electrification, this breaker is built for durability and compliance with international safety standards. Its compact design facilitates installation in space-constrained electrical panels. The ST200M series, to which this breaker belongs, supports a rated voltage of 480Y/277 V AC and is available in various pole configurations and current ratings from 0.5A to 63A, with C, K, and Z trip curves. This specific model, ST203M-C2, is designed for AC applications and meets UL 1077 and CSA 22.2 No. 235 supplemental protection standards. It is manufactured in Switzerland (CH).
  • ABB ST203M-C2 Miniature Circuit Breaker
  • Rated Current: 2A
  • Number of Poles: 3P
  • Short Circuit Breaking Capacity: 10kA
  • Trip Characteristic: C-Curve

Specifications

Amperage Rating, Maximum
2 A
Amperage Rating, Minimum
2 A
Interrupt Rating
(240 V AC) 10 kA / (480Y / 277 VAC) 10 kA / (125 V DC) 10 kA
Number of Poles
3
Special Features
ST203M-C2 Miniature Circuit Breaker ST203M-C2 Miniature Circuit Breaker C-Char., 10kA, 2A, 3P
Tripping Characteristic
C
Voltage Rating
(240 V AC) / (125 V DC)
Package Dimensions (L x W x H)
2.72 IN x 2.07 IN x 3.46 IN
Package Dimensions (L x W x H)
6.9088 cm x 5.2578 cm x 8.7884 cm
Package Weight (Imperial)
0.830 L
Package Weight (Metric)
0.377 kg

Similar Products

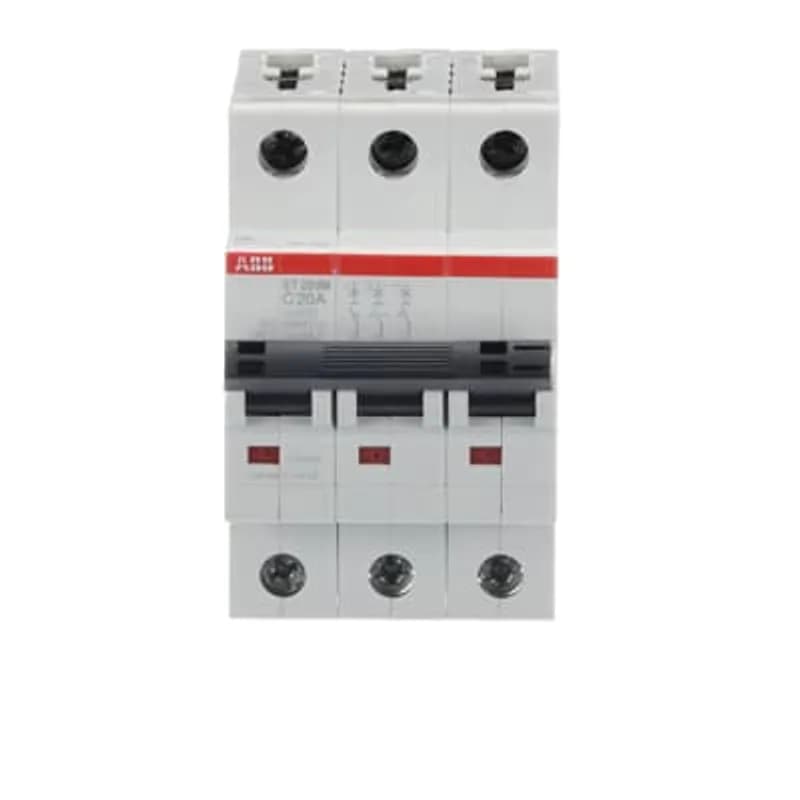

ST203M-C20

Amperage Rating: 20 A

Trip Type: C

Current Rating: 20 A

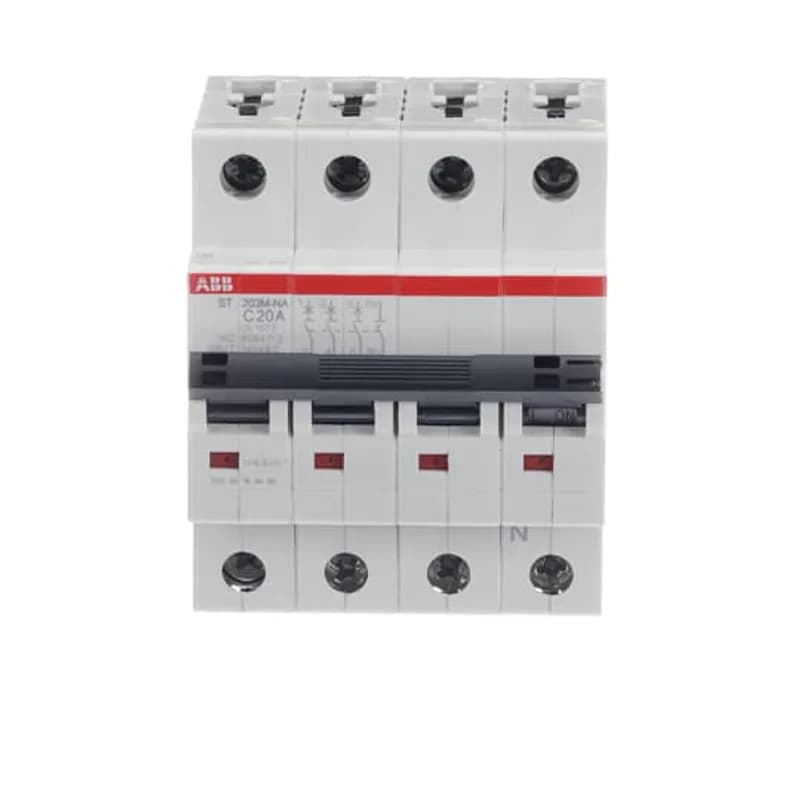

ST203M-C20NA

Trip Type: C

Amperage Rating: 20 A

Current Rating: 20 A

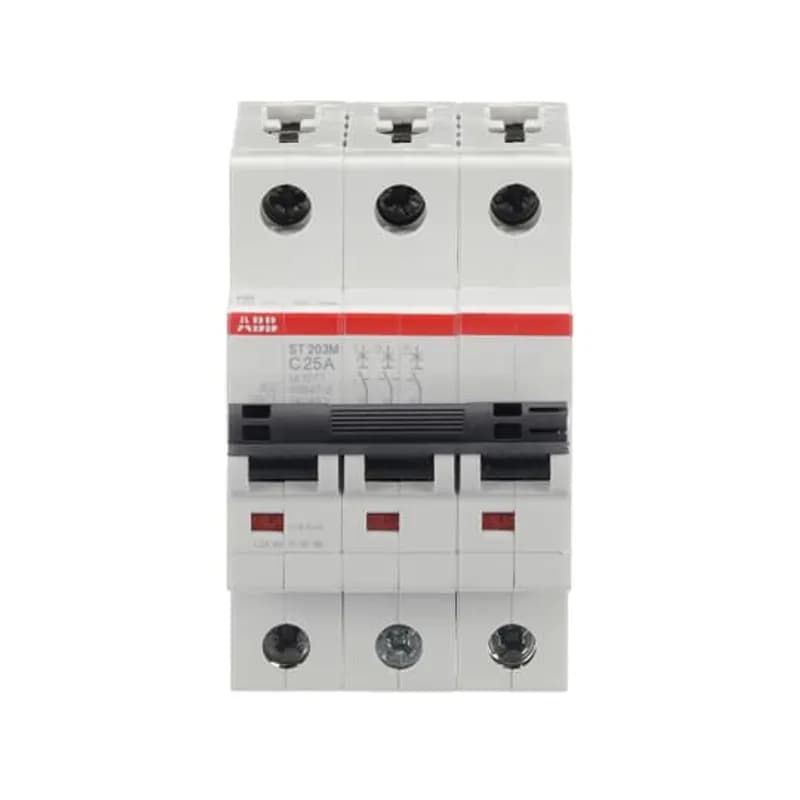

ST203M-C25

Current Rating: 25 A

Poles: 3P

Series: ST203M

ST203M-C25NA

Trip Type: C

Amperage Rating: 25 A

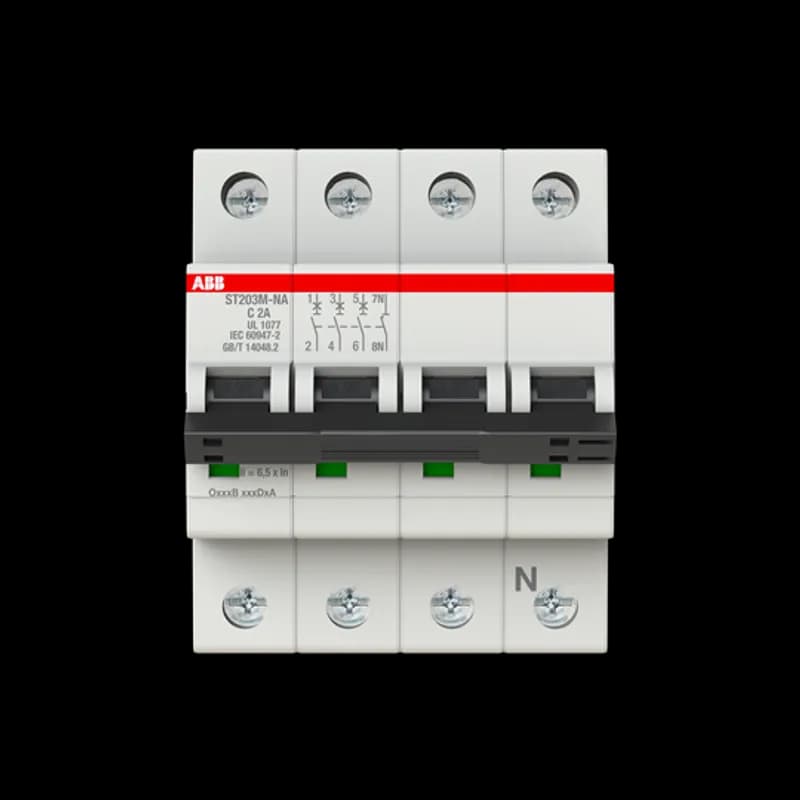

ST203M-C2NA

Trip Type: C

Amperage Rating: 2 A

Current Rating: 2 A

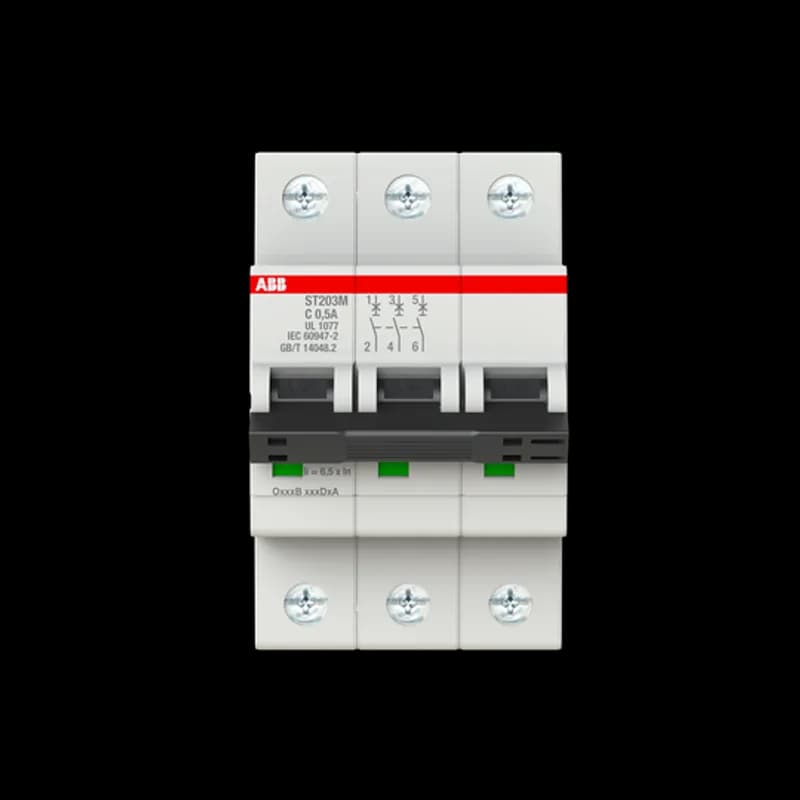

ST203M-C0.5

Amperage Rating, Maximum: 0.5 A

Amperage Rating, Minimum: 0.5 A

Current Rating: 0.5 A

You May Also Be Interested In

ST203M-B2 Miniature Circuit Breaker ST203M-B2 Miniature Circuit Breaker B-Char., 10kA, 2A, 3P

ST203M-B2

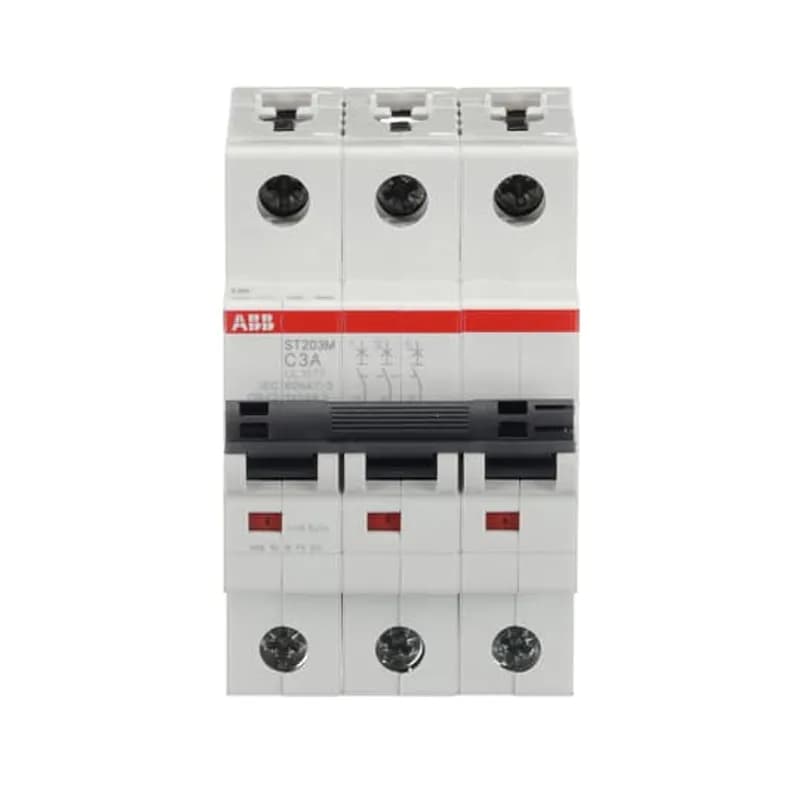

ST203M-C3 Miniature Circuit Breaker ST203M-C3 Miniature Circuit Breaker C-Char., 10kA, 3A, 3P

ST203M-C3

ST203M-D2 Miniature Circuit Breaker ST203M-D2 Miniature Circuit Breaker D-Char., 10kA, 2A, 3P

ST203M-D2

ST203M-C2NA Miniature Circuit Breaker ST203M-C2NA Miniature Circuit Breaker C-Char., 10kA, 2A, 3P+NA

ST203M-C2NA

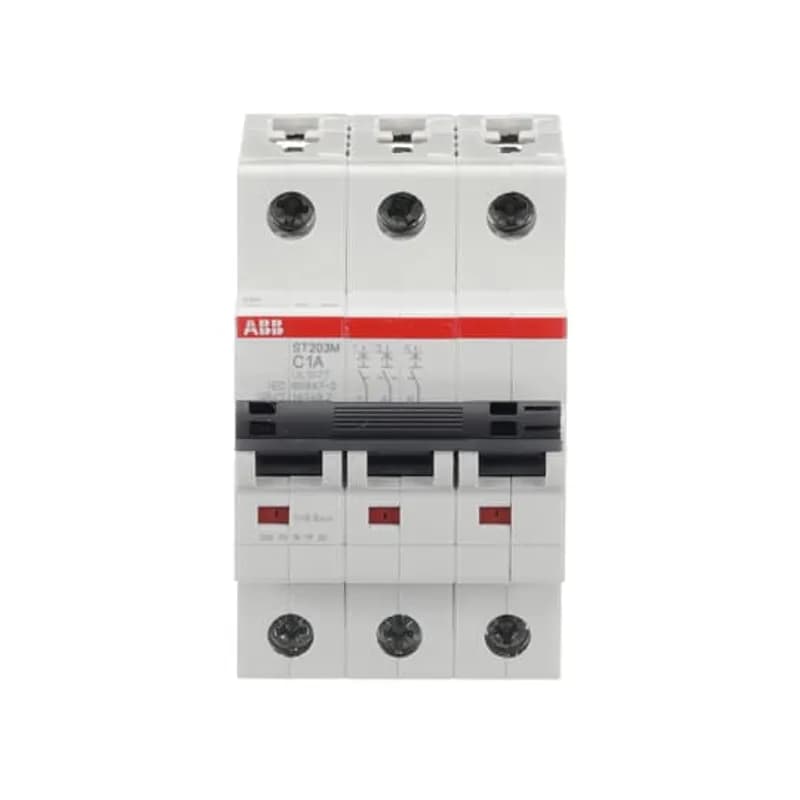

ST203M-C1 Miniature Circuit Breaker ST203M-C1 Miniature Circuit Breaker C-Char., 10kA, 1A, 3P
