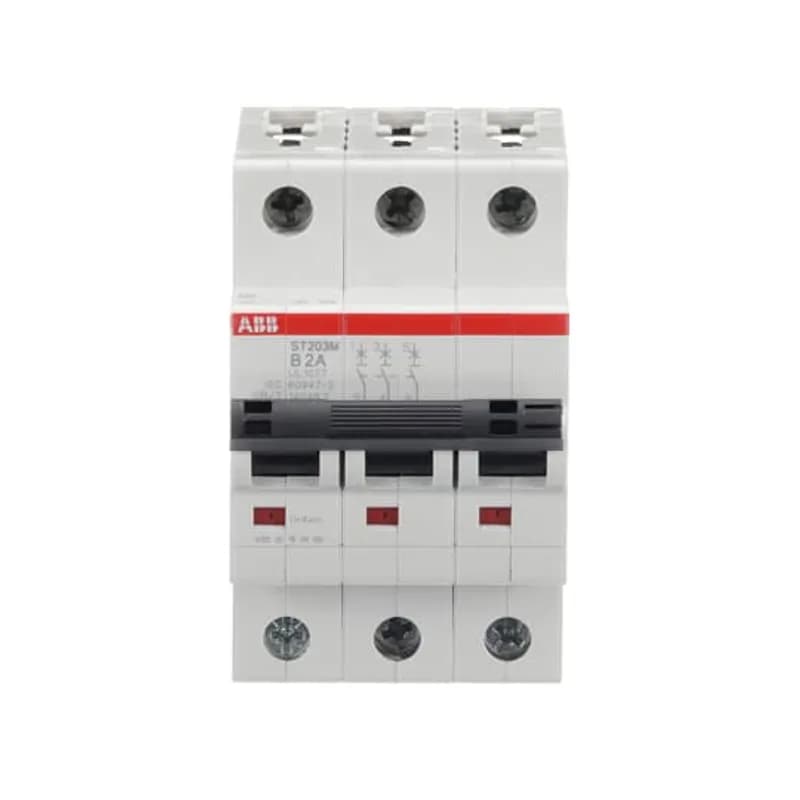

ABB - Electrification ST203M-B2 - ST203M-B2 Miniature Circuit Breaker ST203M-B2 Miniature Circuit Breaker B-Char., 10kA, 2A, 3P
ABB - Electrification

ST203M-B2

Contact for Pricing

Overview

The ABB ST203M-B2 Miniature Circuit Breaker (MCB) is engineered for robust and reliable electrical protection in demanding industrial and commercial environments. This 3-pole device, with a 2A current rating, offers precise overcurrent and short-circuit protection for low-voltage distribution systems. Its B-characteristic tripping curve ensures rapid response to overloads and short circuits, making it ideal for safeguarding sensitive electronic equipment and preventing damage to electrical installations. With a significant 10kA short-circuit breaking capacity, the ST203M-B2 is built to withstand fault conditions, ensuring operational continuity and safety. Designed for panel builders, OEMs, and electrical contractors, this compact MCB facilitates efficient installation in space-constrained electrical panels. It adheres to stringent international safety standards, providing peace of mind and dependable performance. Key specifications include: * **Current Rating:** 2A * **Poles:** 3-pole * **Short-Circuit Breaking Capacity:** 10kA * **Tripping Characteristic:** B-Curve This ABB circuit breaker is a vital component for ensuring the integrity and safety of electrical circuits across a wide spectrum of applications, from building automation to machinery control.
  • ABB ST203M-B2 Miniature Circuit Breaker
  • 2 Ampere (2A) Current Rating
  • 3-Pole (3P) Configuration
  • 10kA Short-Circuit Breaking Capacity
  • B-Characteristic Tripping Curve

Specifications

Amperage Rating, Maximum
2 A
Amperage Rating, Minimum
2 A
Interrupt Rating
(240 V AC) 10 kA / (480Y / 277 VAC) 10 kA / (125 V DC) 10 kA
Number of Poles
3
Special Features
ST203M-B2 Miniature Circuit Breaker ST203M-B2 Miniature Circuit Breaker B-Char., 10kA, 2A, 3P
Tripping Characteristic
B
Voltage Rating
(240 V AC) / (125 V DC)
Package Dimensions (L x W x H)
2.72 IN x 2.07 IN x 3.46 IN
Package Dimensions (L x W x H)
6.9088 cm x 5.2578 cm x 8.7884 cm
Package Weight (Imperial)
1.300 L
Package Weight (Metric)
0.590 kg

Similar Products

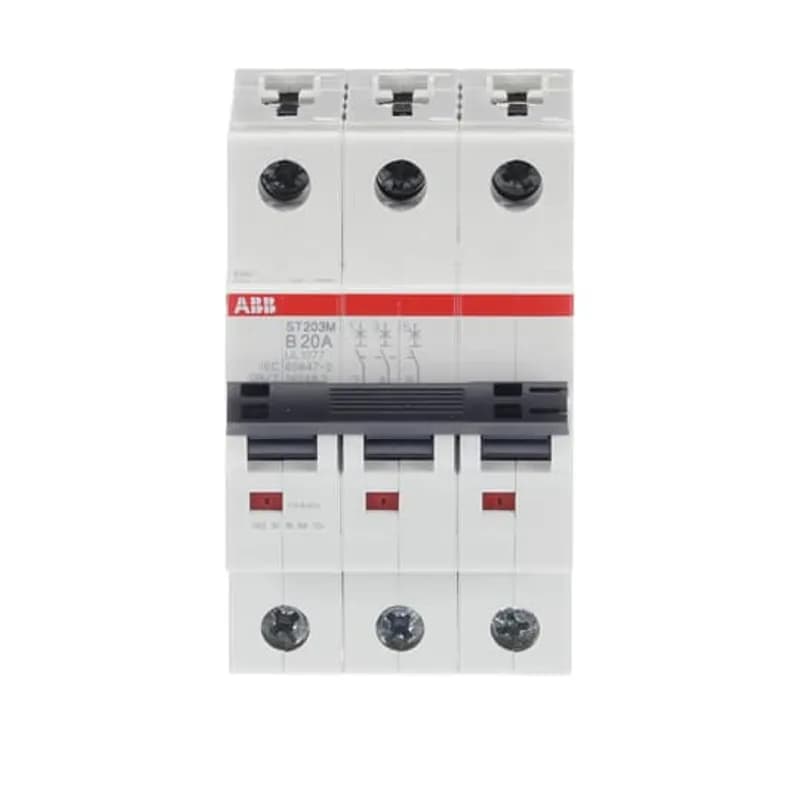

ST203M-B20

Current Rating: 20 A

Poles: 3P

Series: ST203M

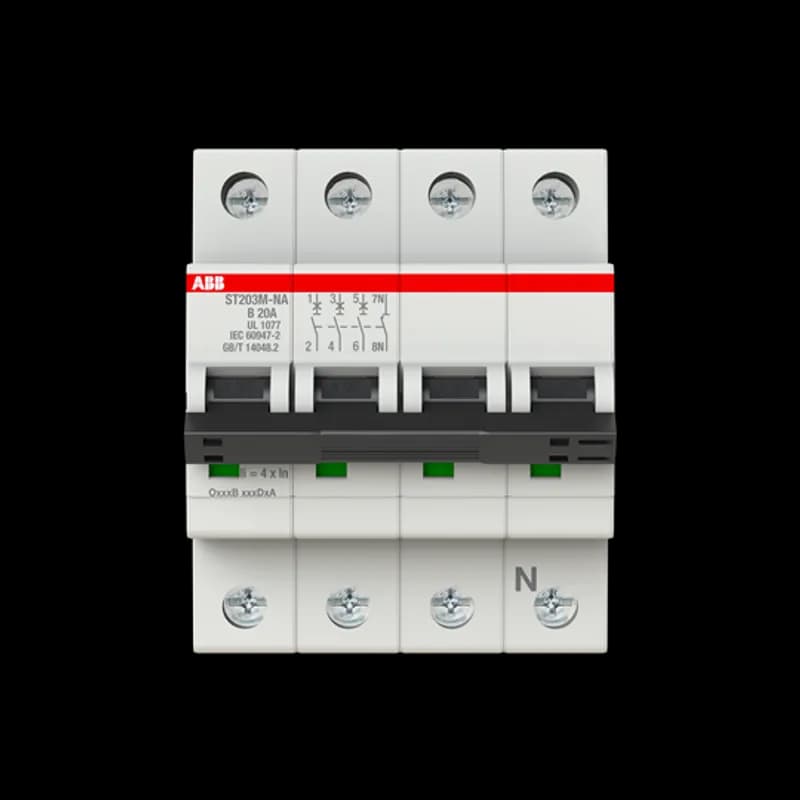

ST203M-B20NA

Trip Type: B

Amperage Rating: 20 A

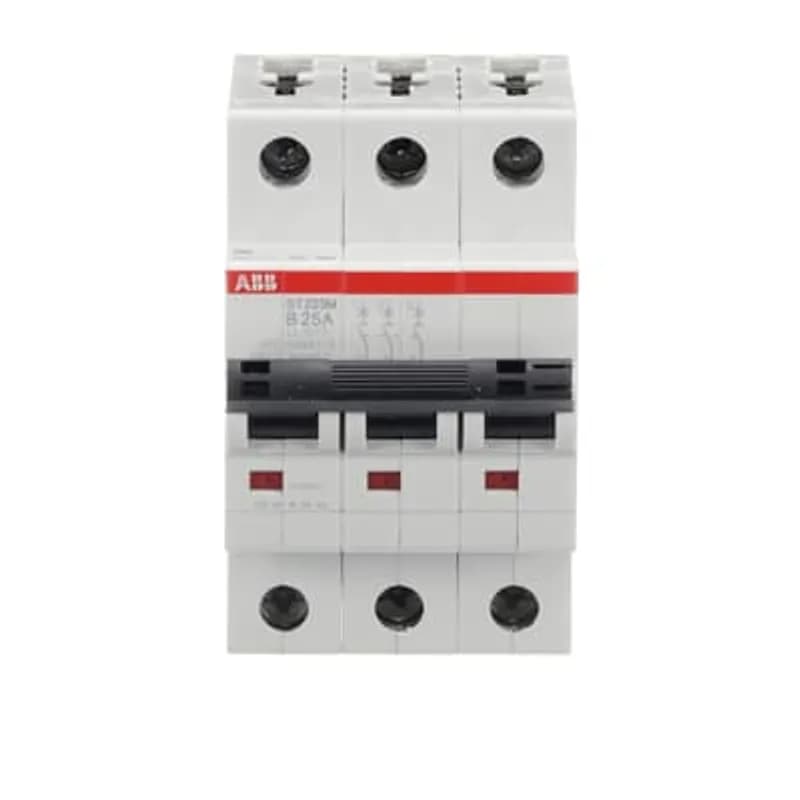

ST203M-B25

Amperage Rating, Maximum: 25 A

Amperage Rating, Minimum: 25 A

Amperage Rating: 25 A

ST203M-B25NA

Trip Type: B

Amperage Rating: 25 A

Current Rating: 25 A

ST203M-B2NA

Trip Type: B

Amperage Rating: 2 A

ST203M-B0.5

Amperage Rating, Maximum: 0.5 A

Amperage Rating, Minimum: 0.5 A

You May Also Be Interested In

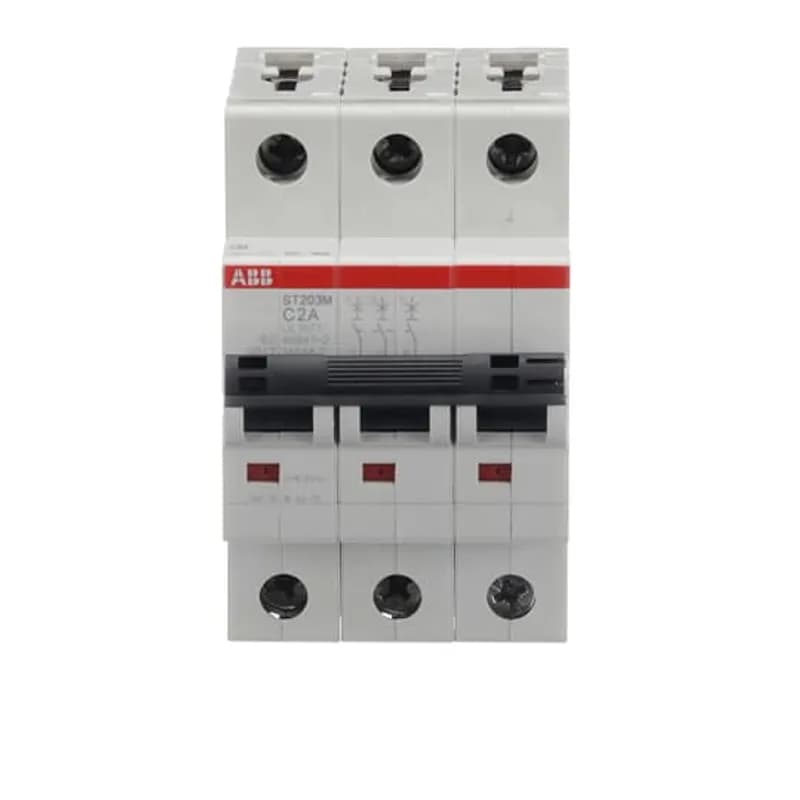

ST203M-C2 Miniature Circuit Breaker ST203M-C2 Miniature Circuit Breaker C-Char., 10kA, 2A, 3P

ST203M-C2

ST203M-B2NA Miniature Circuit Breaker ST203M-B2NA Miniature Circuit Breaker B-Char., 10kA, 2A, 3P+NA

ST203M-B2NA

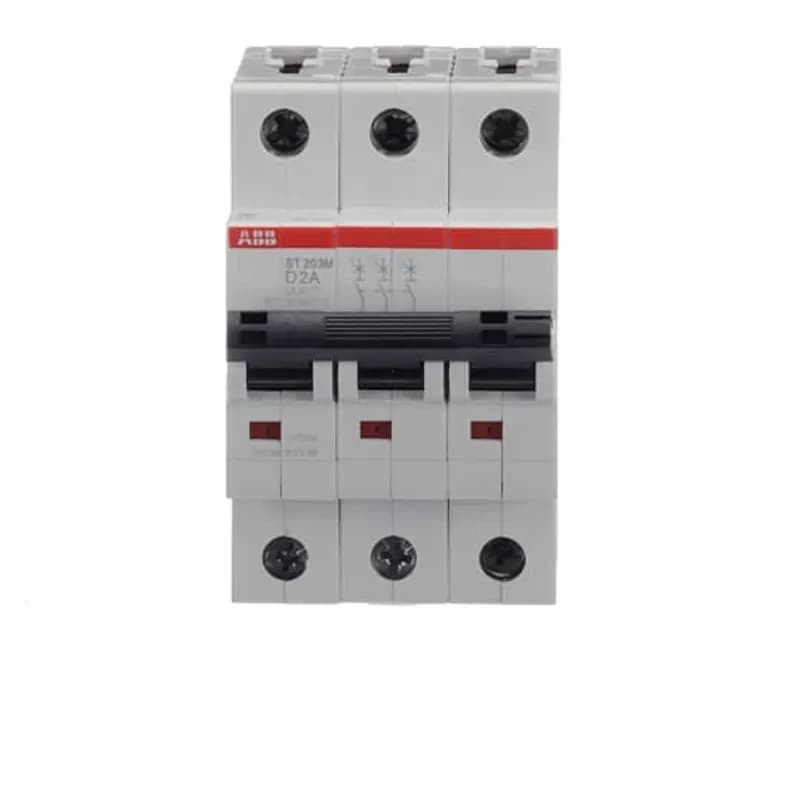

ST203M-D2 Miniature Circuit Breaker ST203M-D2 Miniature Circuit Breaker D-Char., 10kA, 2A, 3P

ST203M-D2

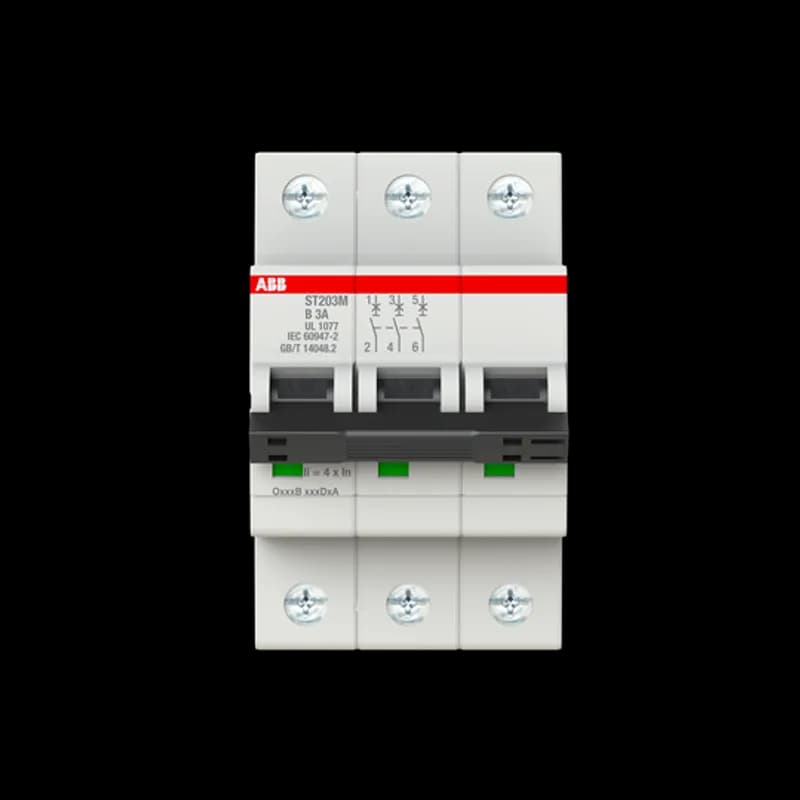

ST203M-B3 Miniature Circuit Breaker ST203M-B3 Miniature Circuit Breaker B-Char., 10kA, 3A, 3P
