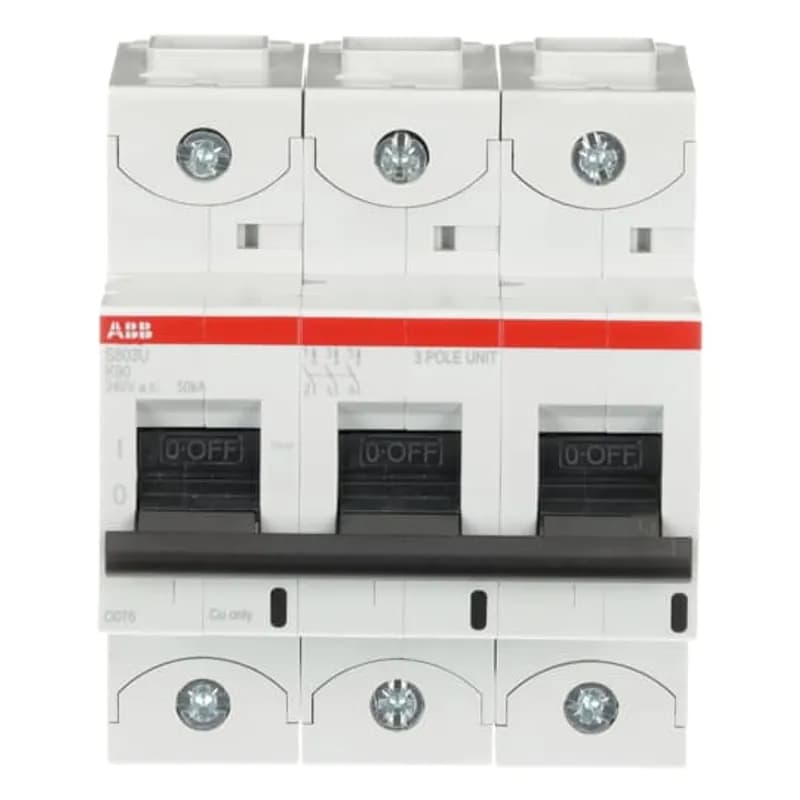

ABB - Electrification S803U-K90 - S803U-K90 3 Pole K Characteristic 90A 50kA 240/415VAC High Performance Circuit Breaker HPCB
ABB - Electrification

S803U-K90

Contact for Pricing

Overview

The ABB S803U-K90 High Performance Circuit Breaker (HPCB) delivers precision protection for industrial and commercial electrical systems. Engineered with a 3-pole configuration and K characteristic curve, this circuit breaker is optimized for applications requiring rapid response to overloads and short circuits. Rated at 90A with a 50kA short-circuit breaking capacity, the S803U-K90 ensures reliable performance in high-demand environments up to 240/415VAC. Designed for critical infrastructure, manufacturing facilities, and commercial buildings, the S803U-K90 combines advanced thermal-magnetic tripping technology with robust construction. Its K characteristic curve provides enhanced protection for inductive loads, such as motors and transformers, while minimizing nuisance tripping. The breaker’s high breaking capacity ensures compliance with stringent safety standards, reducing downtime and maintenance costs. Key features include: - 3-pole design for balanced load distribution - K characteristic curve for inductive load protection - 90A continuous current rating - 50kA short-circuit rating at 240/415VAC - High-performance construction for durability in harsh conditions
  • 3-pole configuration for balanced load distribution
  • K characteristic curve for inductive load protection
  • 90A continuous current rating with 50kA short-circuit capacity
  • Rated for 240/415VAC systems
  • High-performance design for harsh industrial environments

Specifications

Amperage Rating
90 A
Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
Current Rating
90 A
Number of Poles
3
Poles
3
Series
S803U
Size
82x110x108mm
Special Features
S803U-K90 3 Pole K Characteristic 90A 50kA 240/415VAC High Performance Circuit Breaker HPCB
Standard
IEC/EN 60947-2 / UL 489
Trip Type
K
Tripping Characteristic
K
Type
Contactors
Voltage Rating
(240 V AC)
Voltage Rating
240/415 VAC
Package Dimensions (L x W x H)
3.39 IN x 4.13 IN x 3.9 IN
Package Dimensions (L x W x H)
8.6106 cm x 10.4902 cm x 9.906 cm
Package Weight (Imperial)
1.700 L
Package Weight (Metric)
0.771 kg

Similar Products

S803U-K10

Standard: IEC/EN 60947-2 / UL 489 / CSA C22.2 No.5

Amperage Rating: 10 A

Voltage Rating: 240/415VAC

S803U-K100

Standard: RoHs, CSA, cUL, CE, GOST

Voltage Rating: (240 V AC)

Amperage Rating: 100 A

S803U-K20

Amperage Rating: 20 A

S803U-K30

Amperage Rating: 30 A

Current Rating: 30 A

S803U-K40

Amperage Rating: 40 A

S803U-K50

Amperage Rating: 50 A

You May Also Be Interested In

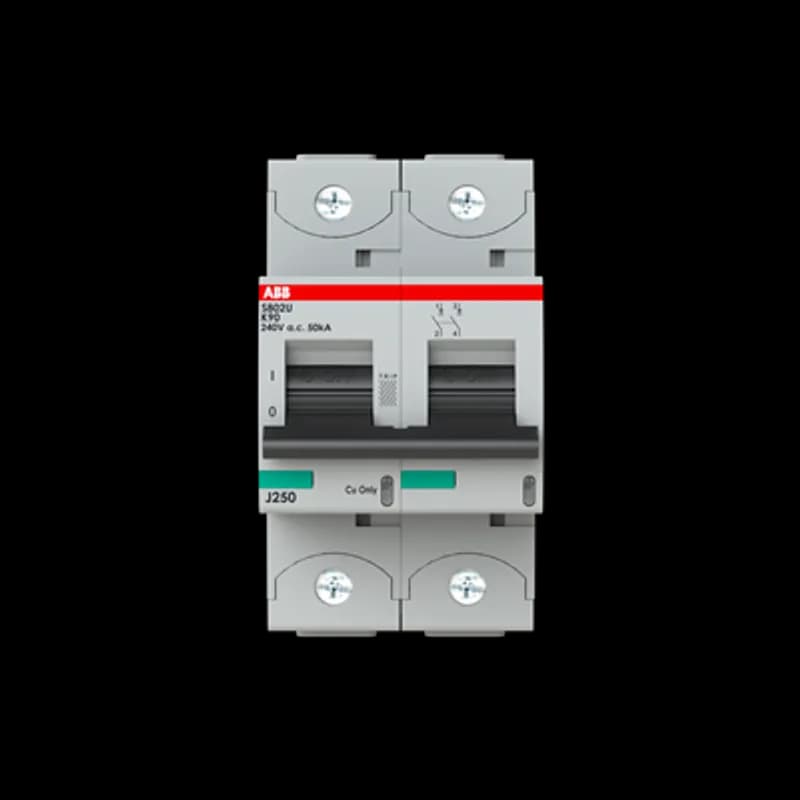

S802U-K90 2 Pole K Characteristic 90A 50kA 240/415VAC High Performance Circuit Breaker HPCB

S802U-K90

S802U-Z90 2 Pole Z Characteristic 90A 50kA 240/415VAC High Performance Circuit Breaker HPCB

S802U-Z90

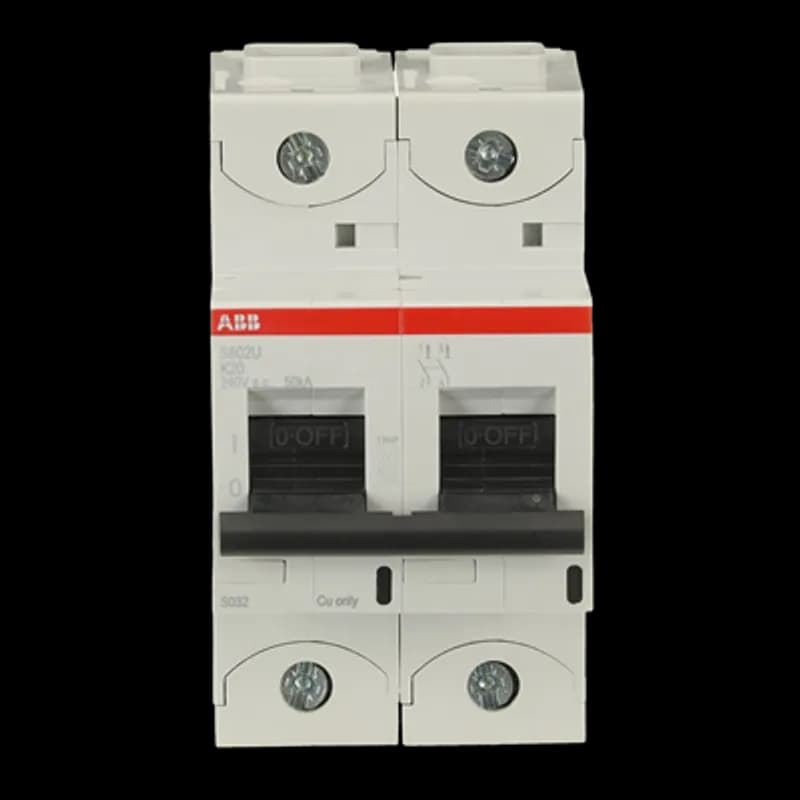

S802U-K20 2 Pole K Characteristic 20A 50kA 240/415VAC High Performance Circuit Breaker HPCB
