Contact for Pricing
Overview

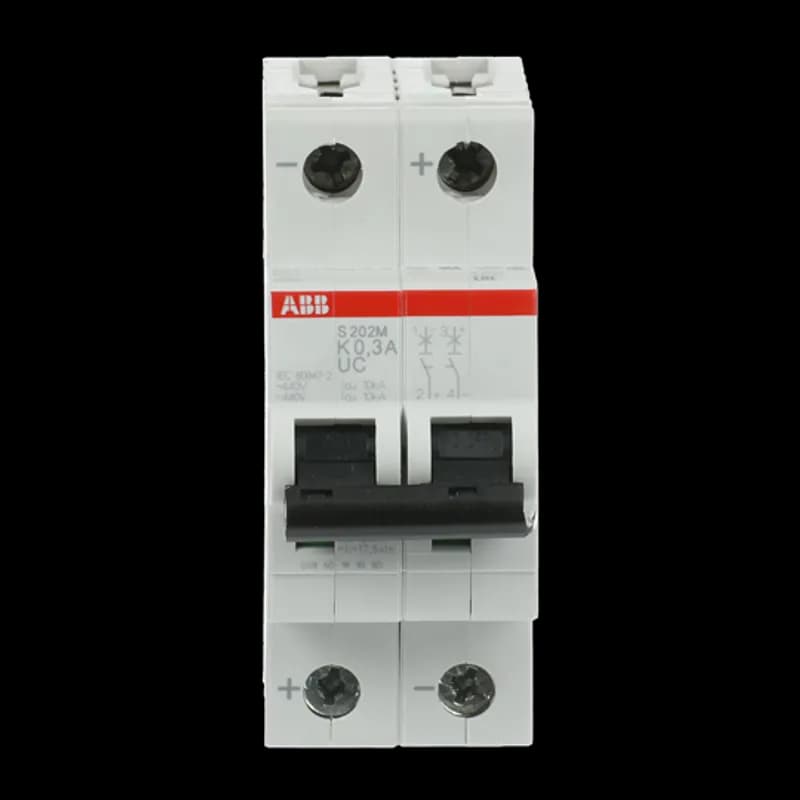

- 2-pole miniature circuit breaker (MCB) with 0.3A rated current
- K tripping characteristic for fast short-circuit response
- Rated for AC/DC applications (500V DC, 480Y/277V AC)
- Interrupting rating: 10 kA (AC), 25 kA (DC at 220V)
- Compatible with System pro M compact® accessories
- Modular DIN rail mounting for flexible installation
- Power loss: 2.3W per pole at rated conditions
- Meets UL1077, IEC/EN 60947-2, CSA 22.2 No. 235 standards
Specifications
Amperage Rating | 3 A |
Amperage Rating, Maximum | 3 A |
Amperage Rating, Minimum | 3 A |
Application | Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits. |
Current Rating | 0.3 A |
Interrupt Rating | (500 V DC) 10 kA / (480Y / 277 V AC) 6 kA |
Number of Poles | 2 |
Poles | 2P |
Series | S 200 M UC |
Size | 82x110x108mm |
Special Features | The miniature circuit breaker S 200 M UC extends the establishedABB System pro M compact® product range with an MCB for DC and AC applications. The S 200 M UC impresses with its performance range and the accordingly large amount of approvals. Its high inbuilt short circuit breaking capacity across theentire model line, its flexible AC and DC application and its approval and compliance in accordance with all major international and local standards make it truly unique.All current System pro M compact® accessories can be combined easily with the new model line. Whether warehousing or project engineering, planning, installing or maintaining your equipment, the S 200 M UC is a simple and flexible solution. |
Standard | CSA 22.2 No. 235 / IEC/EN 60947-2 / UL 1077 |
Trip Type | K |
Tripping Characteristic | K |
Type | Contactors |
Voltage Rating | (500 V DC) / (480Y / 277 V AC) |
Package Dimensions (L x W x H) | 2.28 IN x 3.62 IN x 3.15 IN |
Package Dimensions (L x W x H) | 5.7912 cm x 9.1948 cm x 8.001 cm |
Package Weight (Imperial) | 2.870 L |
Package Weight (Metric) | 1.302 kg |
Frequently Asked Questions
What is the rated current of the ABB S202MUC-K3?
The ABB S202MUC-K3 has a rated current of 0.3A.
How many poles does the S202MUC-K3 modular device have?
The ABB S202MUC-K3 modular device features 2 poles.
Is the S202MUC-K3 compatible with System pro M compact accessories?
Yes, the S200 M UC line, including the S202MUC-K3, is universally compatible with all current System pro M compact® accessories.
Where is the ABB S202MUC-K3 manufactured?
The ABB S202MUC-K3 is manufactured in the USA.
What are the benefits of the S 200 M UC series compatibility?
The compatibility of the S 200 M UC series simplifies warehousing, project engineering, planning, installation, and maintenance processes.
