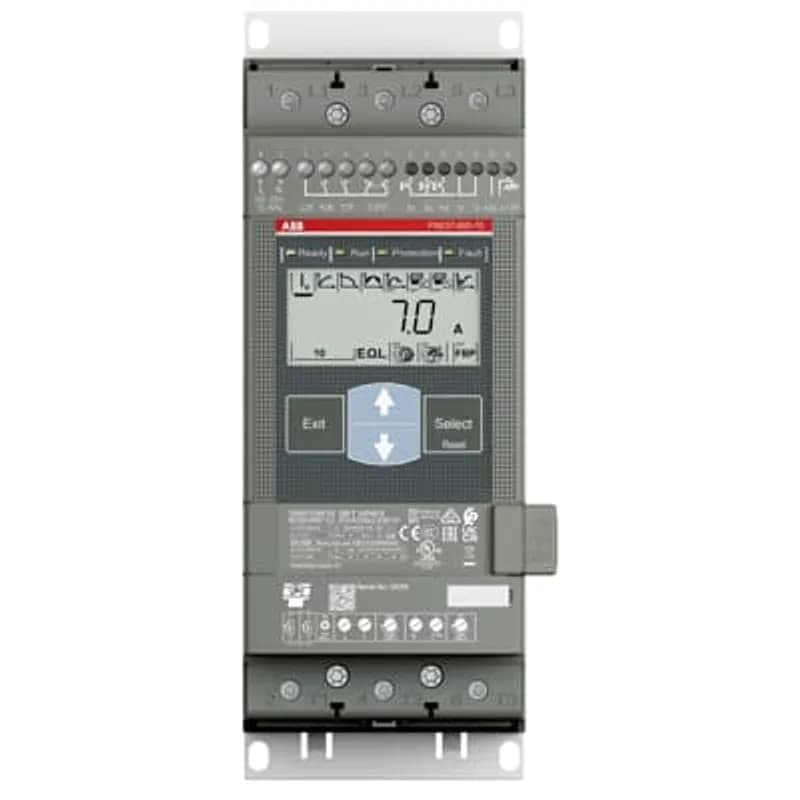

ABB - Electrification PSE37-600-70 - The softstarter PSE37-600-70 has a rated maximum operational current of 37 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR, and Event signal is available from a relay output in NO (normally open state). The PSE has functions such as current limit, kickstart, analog output, EOL, underload, and locked rotor protection. To interact with PSE, it has an Illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs Start/Stop or by Reset of fault. Another popular option is the built-in fieldbus communication Modbus RTU. You can also use an external adaptor and a Fieldbus plug. PSE is a true general pur­pose softstarter. It’s a perfect balance be­tween high starting capacity and cost effi­ciency. Very suitable for small to medium-sized three-phase motors with nominal currents from 18...370 A. Typical applications are, for example, pumps, fans, compressors, and conveyors.
ABB - Electrification

PSE37-600-70

Contact for Pricing

Overview

The ABB PSE37-600-70 softstarter (SKU: PSE37-600-70) delivers precise motor control for three-phase applications with a rated maximum operational current of 37 A and an operating voltage range of 208 to 600 V AC. Designed for small to medium-sized motors (nominal currents from 18 to 370 A), it combines high starting capacity with cost efficiency, making it ideal for pumps, fans, compressors, and conveyors. The unit features two-phase control with configurable soft start and stop via either voltage or torque ramp, reducing mechanical stress and extending equipment lifespan. For energy savings and simplified installation, the PSE37-600-70 includes a built-in bypass that activates during full-speed operation. Its rated control voltage spans 100 to 250 V AC at 50/60 Hz, ensuring compatibility with standard industrial power systems. Advanced protection functions include current limiting, kickstart capability, end-of-line (EOL) detection, underload monitoring, and locked rotor protection to safeguard motors and processes. User interaction is streamlined through an illuminated, language-neutral symbol display that eliminates the need for text-based menus. For enhanced local control, an optional IP66-rated external keypad can be added, providing durable operation in harsh environments. Communication flexibility is achieved through multiple methods: hardwired Start/Stop/Reset inputs for direct control, built-in Modbus RTU fieldbus communication for integration with automation systems, and compatibility with external fieldbus adapters via a dedicated plug. This versatility ensures seamless integration into existing control architectures while maintaining operational simplicity.
  • Rated operational current: 37 A
  • Operational voltage: 208-600 V AC
  • Two-phase controlled with voltage or torque ramp
  • Built-in bypass for energy saving and easy installation
  • Built-in Modbus RTU communication
  • Advanced protection: current limit, kickstart, EOL, underload, locked rotor
  • Modbus RTU fieldbus communication for industrial automation
  • Illuminated, symbol-based display for easy operation
  • Optional IP66-rated external keypad for enhanced usability
  • Compact design suitable for small to medium three-phase motors

Specifications

Special Features
<b>PSR softstarter - The compact range</b></br>The PSR softstarter range is a simple yet reliable starting solution that utilizes only the most basic of soft starting features: soft start and stop. It performs well in applications requiring many starts per hour and is perfect for installations where you need to save space.<b></br></br>Main benefits</b></br>* Small and compact starting solution</br>* Can perform many starts per hour</br>* Reduce energy loss at full speed with built-in bypass.</br></br><b>Main features</b></br>* Rated operational current: 3 to 105 A</br>* Operational voltage: 208–600 V AC</br>* Control supply voltage: 24 V AC/DC or 100–240 V AC.</br>
Package Dimensions (L x W x H)
11.61 IN x 5.12 IN x 9.45 IN
Package Dimensions (L x W x H)
29.4894 cm x 13.0048 cm x 24.003 cm
Package Weight (Imperial)
7.200 L
Package Weight (Metric)
3.266 kg
