Contact for Pricing

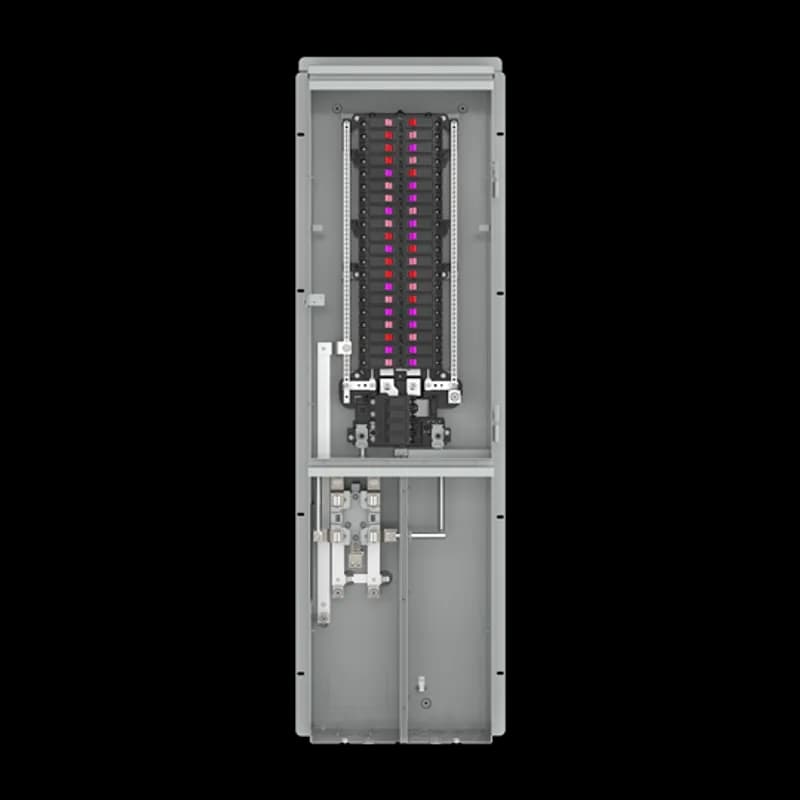

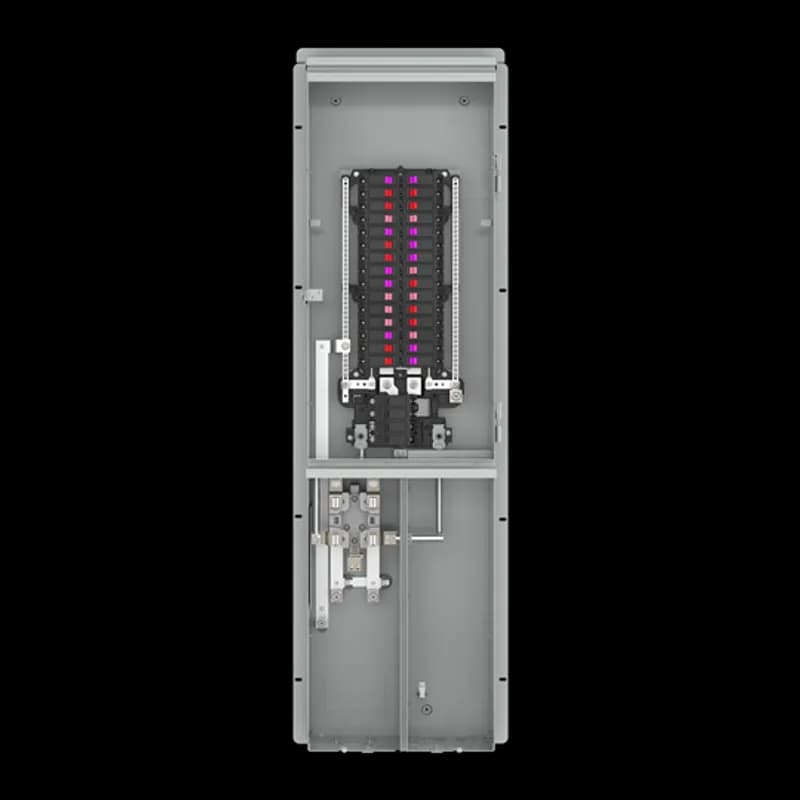

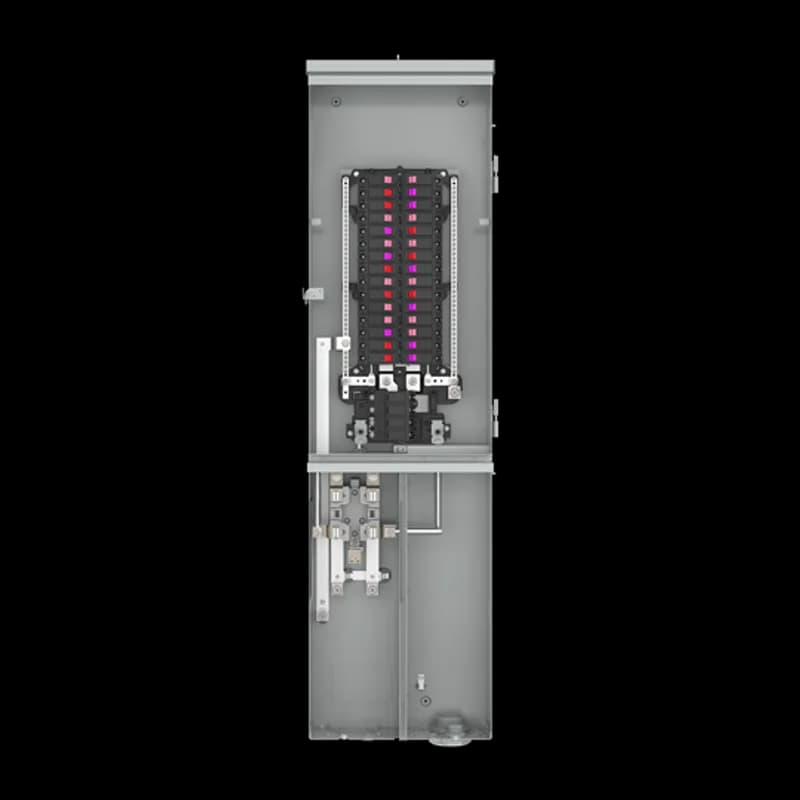

Overview
- 200A Main Breaker Rating, 225A Bus Rating
- 40 Spaces / 80 Circuits Capacity
- NEMA 3R Outdoor Enclosure for Weather Protection
- Plug-on Neutral Technology with ReliaLock™ Connection
- Solar Ready per NEC 705.12 for PV System Integration
Specifications
Amperage Rating | 200A |
Amperage Rating | 200 A |
Connection Type | Plug-on neutral |
Current Rating | 200 A |
Enclosure | Outdoor |
Frequency | 60 Hz |
Interrupt Rating | 22 kA |
Interrupt Rating | 22kAIC |
Load Regulation | 120/240V ac |
Material | Galvanized Steel |
Mounting Type | One-tool installation with integrated mounting rails |
NEMA Rating | NEMA 3R |
Number Of Feeders | Top |
Phase | 1 |
Phase | 1 Phase |
Poles | 3P+G |
Series | RELIAHOME |
Size | 40 spaces / 80 circuits |
Standard | UL |
Voltage Rating | 120/240 Vac |
Wiring Configuration | 3-Wire |
Wiring Configuration | 3 Wire |
Package Dimensions (L x W x H) | 5.281 IN x 14.876 IN x 39.286 IN |
Package Dimensions (L x W x H) | 13.4137 cm x 37.785 cm x 99.7864 cm |
Package Weight (Imperial) | 0.001 L |
Package Weight (Metric) | 0.001 kg |
You May Also Be Interested In
Frequently Asked Questions
What is the operating voltage range?
The device operates on 24V DC with a range of 20-28V DC.
Is the product compatible with other devices?
The product is designed to work with all ABB residential circuit breakers.
What type of circuit breakers are compatible?
The device is compatible with ABB residential circuit breakers.
What are the installation requirements?
The device must be installed in a suitable environment with proper grounding and ventilation.
