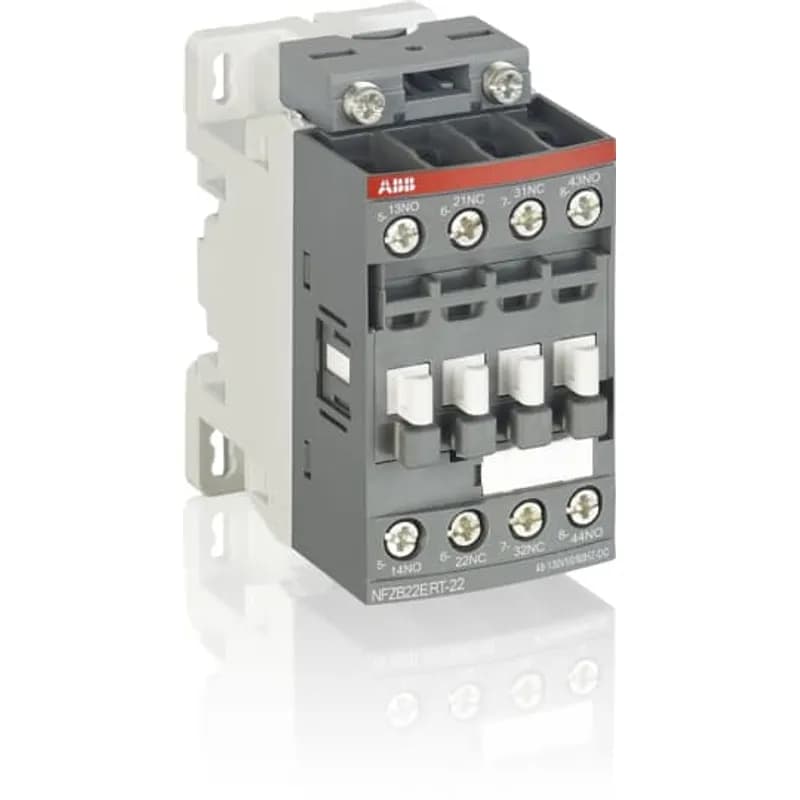

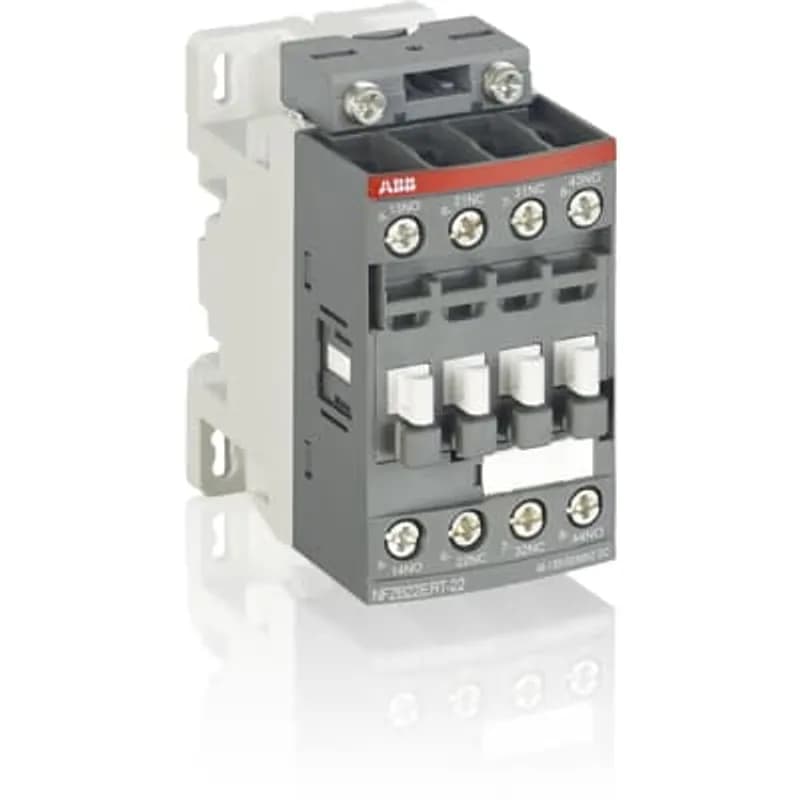

ABB - Electrification NFZB40ERT-22 - NFZB..RT contactor relays comply with the latest railway rolling stock standards and allow installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are used for switching auxiliary and control circuits. Improve the compactness of the installations thanks to reduced dimension and side-by-side mounting requiring less 15% width (without spacing) from -40 °C up to +70 °C. Meet all main rollling stocks standards: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2 and applicable parts of EN 50155 standards, shocks and vibration withstand conforming to IEC 61373 cat. 1, class B. Reach the highest levels in fire and smoke behaviour with compliance to European standard EN 45545-2 (HL2, HL3 hazard levels) in group mounting Reduce train energy with lighter devices and requiring 68% less coil energy consumption in operation. Electronic coil interface handling large DC voltage fluctuation voltage, including several Uc DC control voltages used for battery supply and accepting sinusoïdal AC 50/60 Hz control supplies included inside Ucmin.... Ucmax voltage range. Max permitted AC 50/60 Hz control voltage must not be exceeded (see technical data). Wide range of auxiliary contact blocks for front and side mounting.
ABB - Electrification

NFZB40ERT-22

Contact for Pricing

Overview

The ABB NFZB..RT series of contactor relays, including SKU NFZB40ERT-22, are specifically designed for the demanding requirements of railway rolling stock. These relays are compliant with the latest railway standards, including IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2, and applicable parts of EN 50155, making them suitable for installation in passenger or driver cabins, particularly for trains operating in tunnels or underground environments. They ensure reliable switching of auxiliary and control circuits. Key features include enhanced compactness due to reduced dimensions and side-by-side mounting capabilities, requiring up to 15% less width without spacing. These relays operate reliably across a wide temperature range from -40 °C to +70 °C. They meet stringent fire and smoke behavior standards with compliance to European standard EN 45545-2 (HL2, HL3 hazard levels) in group mounting. Furthermore, they offer superior shock and vibration resistance, conforming to IEC 61373 cat. 1, class B. Energy efficiency is a significant benefit, with devices contributing to reduced train energy consumption by utilizing 68% less coil energy in operation. The electronic coil interface is designed to handle large DC voltage fluctuations, supporting various Uc DC control voltages for battery supply. It also accepts sinusoidal AC 50/60 Hz control supplies within the specified Ucmin to Ucmax voltage range. A wide range of auxiliary contact blocks is available for both front and side mounting to accommodate diverse system configurations. Specific models and their ratings include: * **AF38Z-40-00-20, AF38Z-40-00-21, AF38Z-40-00-22:** These models feature a general use rating of 55 A at 600 V AC and a rated operational current of 55 A at θ ≤ 40 °C, with 0 auxiliary contacts fitted. * **AF09Z-40-00K-22:** This model offers a general use rating of 25 A at 600 V AC and a rated operational current of 25 A at θ ≤ 40 °C. It is equipped with 2 auxiliary contacts (2 front, 2 side) and has a rated control circuit voltage range of 48-130 V.
  • Compliant with latest railway standards: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2, EN 50155
  • High fire and smoke behavior: EN 45545-2 (HL2, HL3 hazard levels)
  • Shock and vibration resistance: IEC 61373 cat. 1, class B
  • Wide operating temperature range: -40 °C to +70 °C
  • Energy efficient: 68% less coil energy consumption, electronic coil interface for voltage flexibility

Specifications

Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
Current Rating
55 A (main), 25 A (auxiliary)
Frequency
50/60 Hz
Mounting Type
Front and side mounting
Mounting Type
Side-by-side
Poles
4
Rated Control Circuit Voltage
50 Hz /60 Hz DC Operation 48 ... 130 V
Series
NFZB..RT
Size
82x110x108mm
Special Features
NFZB..RT contactor relays comply with the latest railway rolling stock standards and allow installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are used for switching auxiliary and control circuits. Improve the compactness of the installations thanks to reduced dimension and side-by-side mounting requiring less 15% width (without spacing) from -40 °C up to +70 °C. Meet all main rollling stocks standards: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2 and applicable parts of EN 50155 standards, shocks and vibration withstand conforming to IEC 61373 cat. 1, class B. Reach the highest levels in fire and smoke behaviour with compliance to European standard EN 45545-2 (HL2, HL3 hazard levels) in group mounting Reduce train energy with lighter devices and requiring 68% less coil energy consumption in operation. Electronic coil interface handling large DC voltage fluctuation voltage, including several Uc DC control voltages used for battery supply and accepting sinusoïdal AC 50/60 Hz control supplies included inside Ucmin.... Ucmax voltage range. Max permitted AC 50/60 Hz control voltage must not be exceeded (see technical data). Wide range of auxiliary contact blocks for front and side mounting.
Standard
RoHs, CSA, cUL, CE, GOST
Terminal Type
Ring-Tongue Terminals
Type
Contactors
Voltage Rating
20...500 V DC / 24...500 V AC
Voltage Rating
48-130 V AC/DC (control), 600 V AC (main)
Package Dimensions (L x W x H)
3.11 IN x 3.425 IN x 1.85 IN
Package Dimensions (L x W x H)
7.8994 cm x 8.6995 cm x 4.699 cm
Package Weight (Imperial)
0.730 L
Package Weight (Metric)
0.331 kg
MT-63 34A 3D SCREW EXP (MT63-3D-34-S-E)

1311001000

MT-63 34A 3D SCREW EXP (MT63-3D-34-S-E)
MT-63 19A 3D SCREW EXP (MT63-3D-19-S-E)

1311000700

MT-63 19A 3D SCREW EXP (MT63-3D-19-S-E)
One-hole, metric conductor, standard barrel with window lug, 4-6mm wire, M8 stud hole.

LCMA6-8-C

One-hole, metric conductor, standard barrel with window lug, 4-6mm wire, M8 stud hole.
Ground Lug

DNGL

Ground Lug
CONTACT BLOCK BU BLB-02

BLB-02

CONTACT BLOCK BU BLB-02
CONTACT BLOCK BU BFB-40

BFB-40

CONTACT BLOCK BU BFB-40
