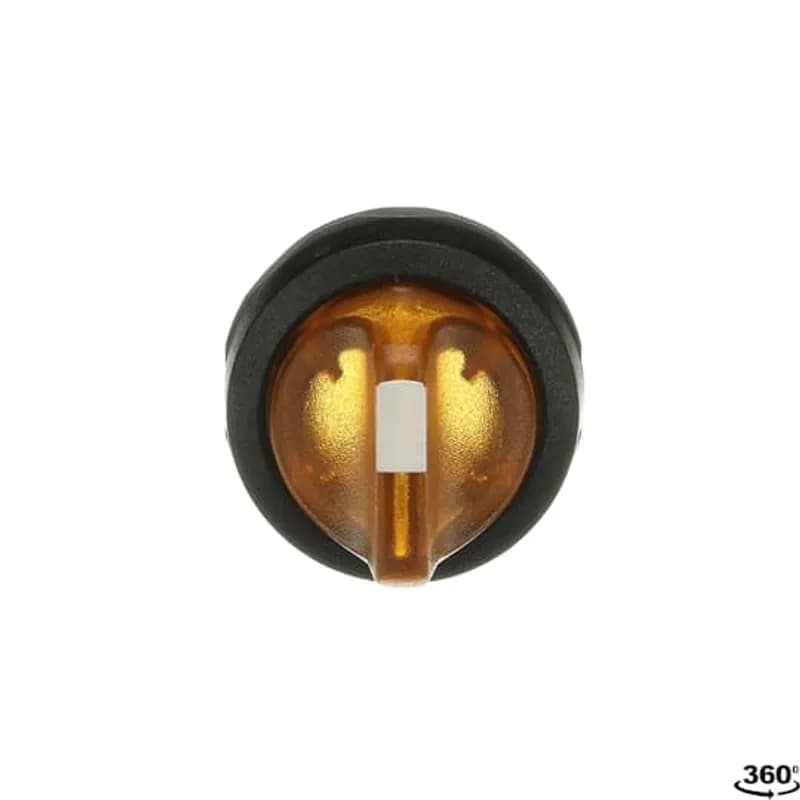

ABB - Electrification M3SS3-11Y - Modular Selector Switch - 3-Pos Maintained/Momentary, A and B fixed, spring return from C to B - Short handle - Yellow - Illuminated - Black plastic - No contact block
ABB - Electrification

M3SS3-11Y

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB M3SS3-11Y Modular Selector Switch (SKU: M3SS3-11Y) from ABB Electrification is a key component for industrial control panels, offering precise operational control and clear visual feedback. This 3-position switch features a maintained/momentary operating principle, with fixed positions A and B, and a spring return from position C to B. The short handle design is optimized for space-saving installations within control enclosures, measuring 30mm (1.18") in diameter and 48.5mm (1.91") in length. The vibrant yellow bezel enhances visibility, and the integrated illumination provides immediate status indication, crucial in varied lighting conditions. Constructed from durable black plastic, this switch is built for longevity in industrial environments. As part of ABB's extensive modular plastic pilot device range, the M3SS3-11Y offers flexibility and ease of integration. It requires separate contact blocks and an LED block (MLBL, sold separately) for illumination, allowing for customized configurations to meet specific application needs. The illuminated feature is designed for use with compatible LED blocks, details of which can be found on pages 58-59 of the ABB Pilot Device catalog. The switch's dimensions are 30mm (1.18") for the bezel diameter and 48.5mm (1.91") for the overall length, with a panel cutout diameter of Ø 29mm (1.14"). Key features include: * **3-Position Operation:** Provides versatile control with maintained and momentary functions. * **Illuminated Bezel:** Offers clear visual indication of operational status. * **Short Handle:** Compact design for space-saving panel installations. * **Durable Black Plastic Construction:** Ensures resilience in industrial settings. * **Modular Design:** Allows for flexible configuration with separate contact blocks and LED modules.
  • 3-Position Maintained/Momentary Selector Switch
  • Illuminated Yellow Bezel for Clear Status Indication
  • Short Handle Design for Space-Saving Installations
  • Durable Black Plastic Construction for Industrial Use
  • Modular Design Requires Separate Contact and LED Blocks

Specifications

Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
Color
Yellow
Material
Black plastic
Poles
3
Series
M3SS
Size
82x110x108mm
Special Features
Modular Selector Switch - 3-Pos Maintained/Momentary, A and B fixed, spring return from C to B - Short handle - Yellow - Illuminated - Black plastic - No contact block
Standard
RoHs, CSA, cUL, CE, GOST
Type
Contactors
Package Dimensions (L x W x H)
4.62 IN x 8.86 IN x 6.3 IN
Package Dimensions (L x W x H)
11.7348 cm x 22.5044 cm x 16.002 cm
Package Weight (Imperial)
0.040 L
Package Weight (Metric)
0.018 kg

Similar Products

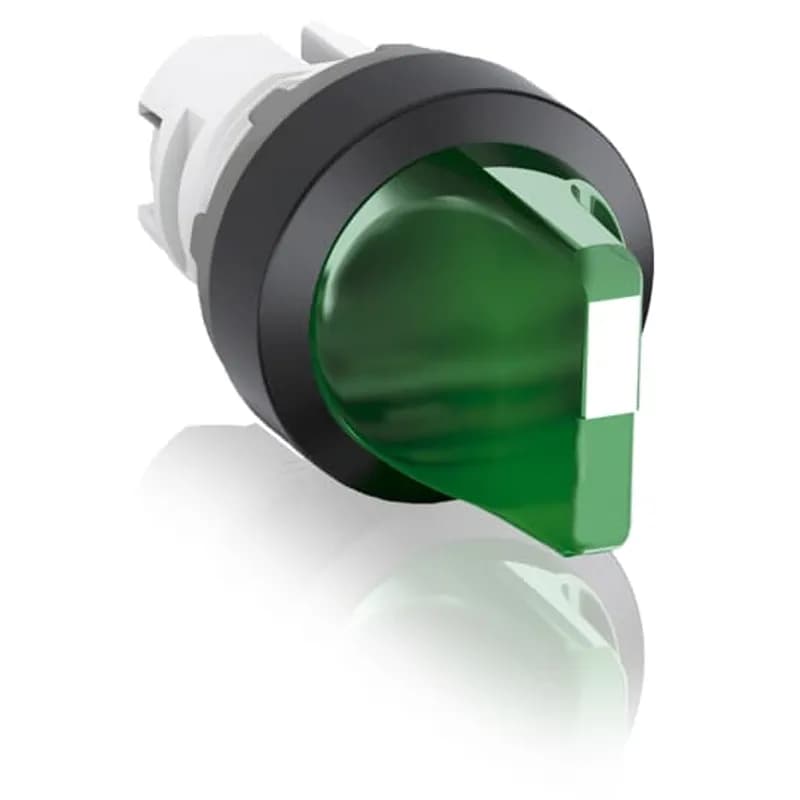

M3SS3-11G

Color: Green

M3SS3-11L

M3SS3-10B

Color: Black

Series: M3SS3

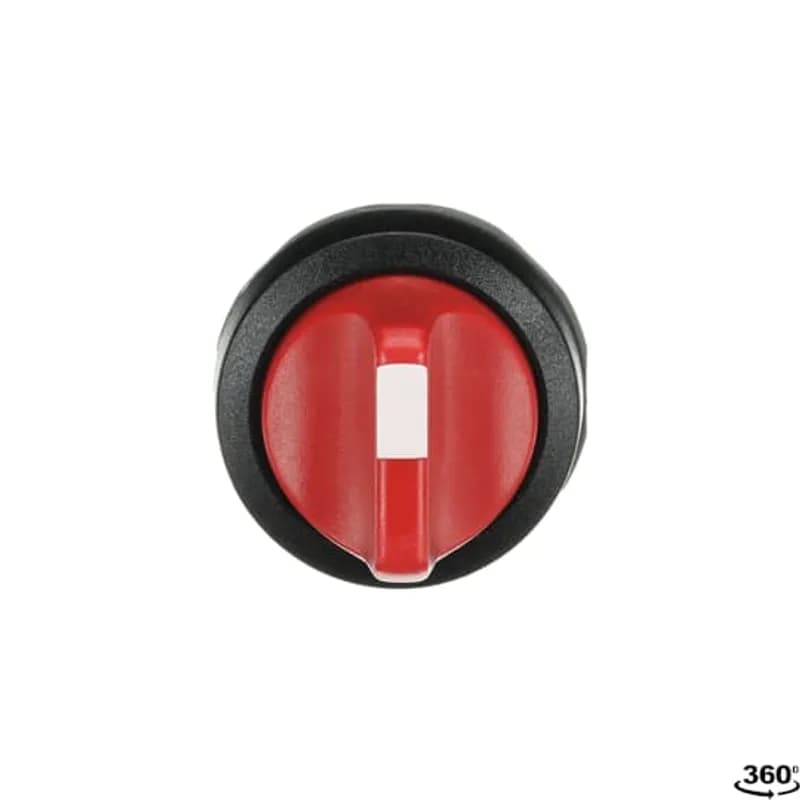

M3SS3-10R

Color: Red

M3SS1-11Y

Size: 30 x 48.5 x 43 mm

Series: PILOT DEVICES

M3SS2-11Y

You May Also Be Interested In

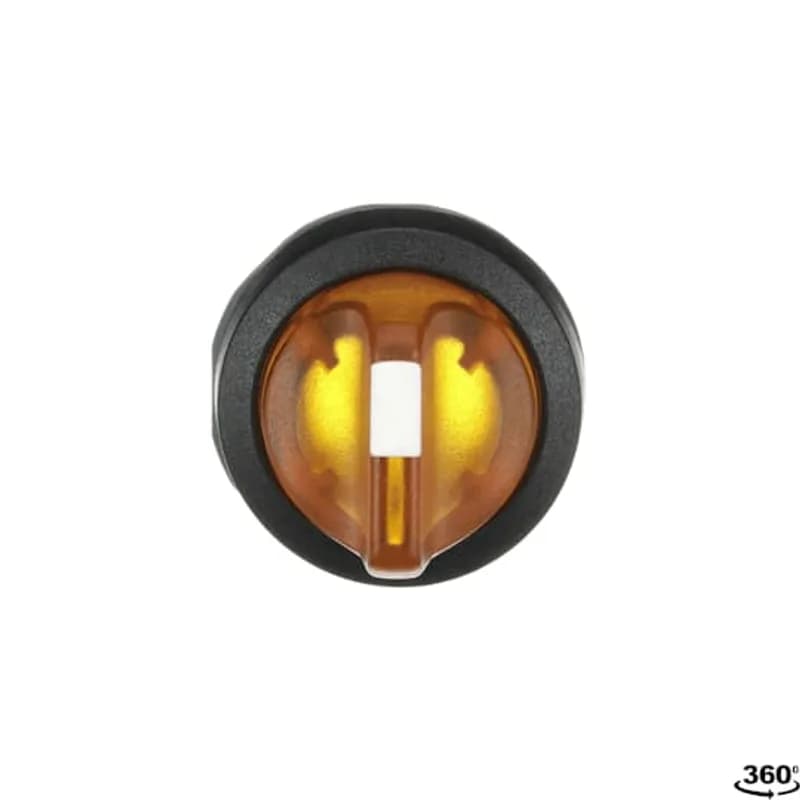

Modular Selector Switch - 3-Pos Maintained/Momentary, B and C fixed, spring return from A to B - Short handle - Yellow - Illuminated - Black plastic - No contact block

M3SS7-11Y

Modular Selector Switch - 3-Pos Momentary, spring return from A and C to B - Short handle - Yellow - Illuminated - Black plastic - No contact block

M3SS2-11Y

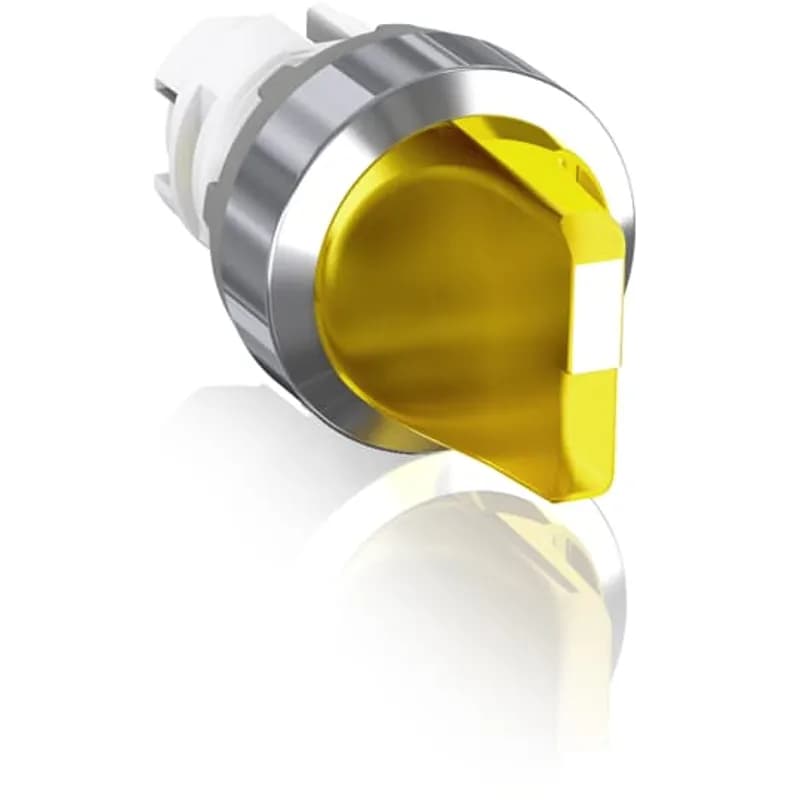

Modular Selector Switch - 3-Pos Momentary, spring return from A and C to B - Short handle - Yellow - Illuminated - Chrome plastic - No contact block

M3SS2-21Y

Modular Selector Switch - 3-Pos Maintained - Short handle - Yellow - Illuminated - Black plastic - No contact block

M3SS1-11Y

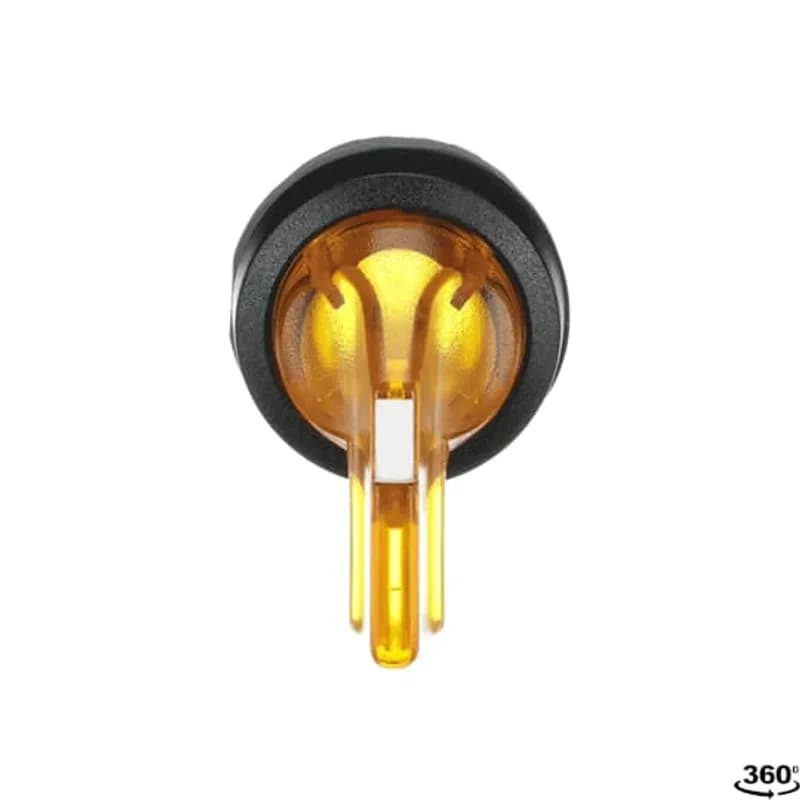

Modular Selector Switch - 3-Pos Maintained - Long handle - Yellow - Illuminated - Black plastic - No contact block
