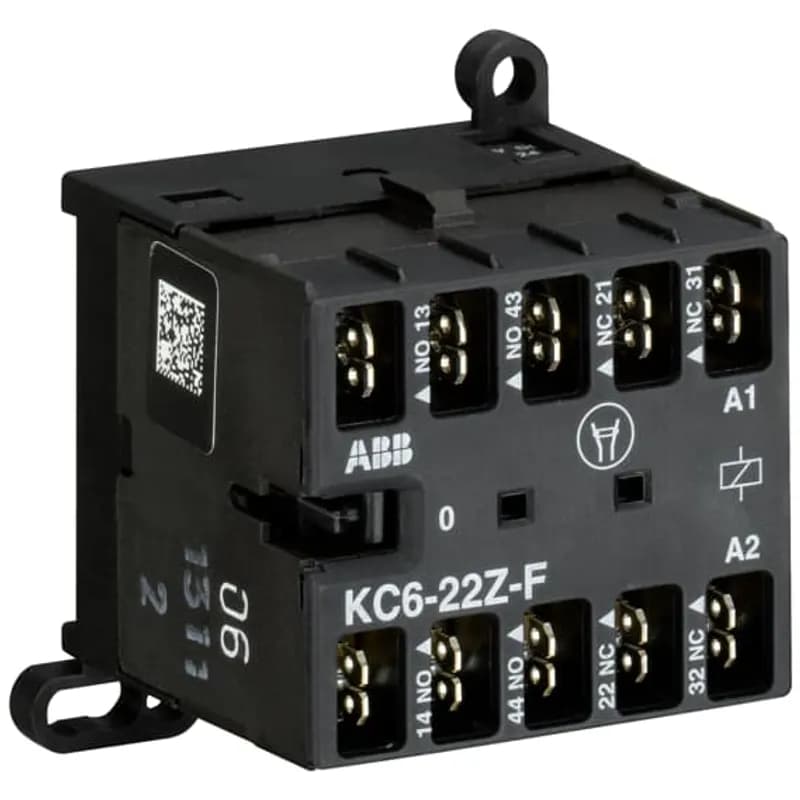

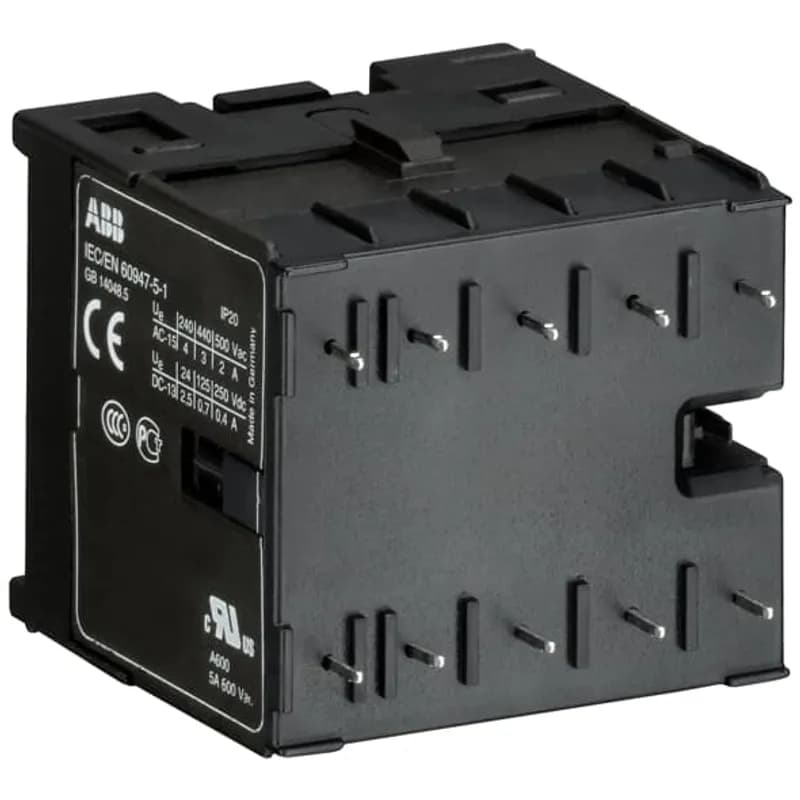

ABB - Electrification KC6-22Z-F-05 - The KC6-22Z-F mini contactor relay is a compact 4 pole contactor relay with flat pin connection. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the noiseless and hum-free coil and a a switch position indication.
ABB - Electrification

KC6-22Z-F-05

Contact for Pricing

Overview

The ABB KC6-22Z-F-05 mini contactor relay is a compact 4-pole solution designed for applications where reliability and space efficiency are critical. Engineered by ABB - Electrification, this mini contactor relay features a flat pin connection for secure and stable electrical contact, making it ideal for installations where precision matters. With a rated capacity of up to 3 A / 400 V (AC-15), it is well-suited for switching control signals in a variety of environments, including residential buildings, commercial facilities, and industrial applications. Key features of the KC6-22Z-F-05 include a noiseless and hum-free coil, ensuring quiet operation in sensitive environments. The switch position indication provides clear visibility of the relay's state, enhancing operational safety and maintenance efficiency. Its compact design allows for easy integration into tight spaces, making it a versatile choice for modern electrical control systems. The KC6-22Z-F-05 is part of ABB's trusted line of industrial control products, known for their durability and performance. Whether used in automation systems, lighting controls, or HVAC applications, this mini contactor relay delivers consistent and dependable operation. Trust ABB's engineering excellence for your control signal switching needs with the KC6-22Z-F-05.
  • 4-pole compact design for space-efficient installations
  • Flat pin connection for secure and stable electrical contact
  • Rated for control signal switching up to 3 A / 400 V (AC-15)
  • Noiseless and hum-free coil for quiet operation
  • Switch position indication for enhanced safety and maintenance

Specifications

Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
Connection Type
Flat Pin
Current Rating
3 A
Poles
4P
Poles
4
Rated Control Circuit Voltage
220 ... 240 V DC
Series
KC6
Series
KC6-22Z-F
Size
82x110x108mm
Special Features
The KC6-22Z-F mini contactor relay is a compact 4 pole contactor relay with flat pin connection. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the noiseless and hum-free coil and a a switch position indication.
Standard
RoHs, CSA, cUL, CE, GOST
Terminal Type
Flat-Pin Connections
Type
Contactors
Voltage Rating
400 V
Package Dimensions (L x W x H)
11.024 IN x 4.528 IN x 2.126 IN
Package Dimensions (L x W x H)
28.001 cm x 11.5011 cm x 5.4 cm
Package Weight (Imperial)
3.902 L
Package Weight (Metric)
1.770 kg

Similar Products

KC6-22Z-F-01

Rated Control Circuit Voltage: 24 V DC

KC6-22Z-F-04

Rated Control Circuit Voltage: 110 ... 125 V DC

KC6-22Z-P-01

Terminal Type: Soldering Pins

Rated Control Circuit Voltage: 24 V DC

KC6-22Z-P-04

Rated Control Circuit Voltage: 110 ... 125 V DC

Terminal Type: Soldering Pins

Voltage Rating: 400 V AC

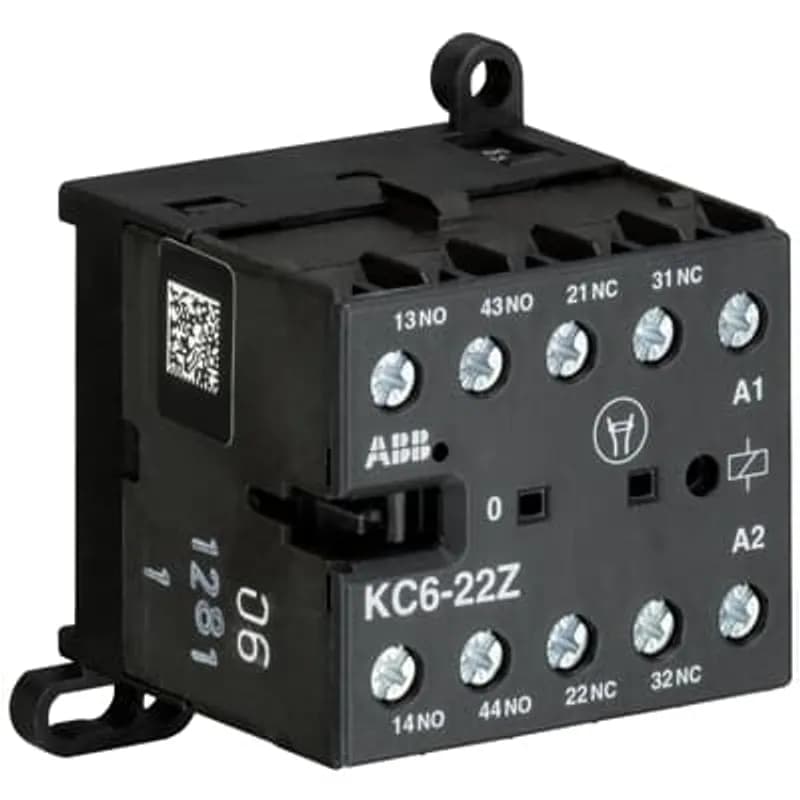

KC6-22Z-01

Terminal Type: Screw Terminals

Rated Control Circuit Voltage: 24 V DC

Connection Type: Screw Terminal

KC6-22Z-04

Rated Control Circuit Voltage: 110 ... 125 V DC

Terminal Type: Screw Terminals

Connection Type: Screw Terminal
