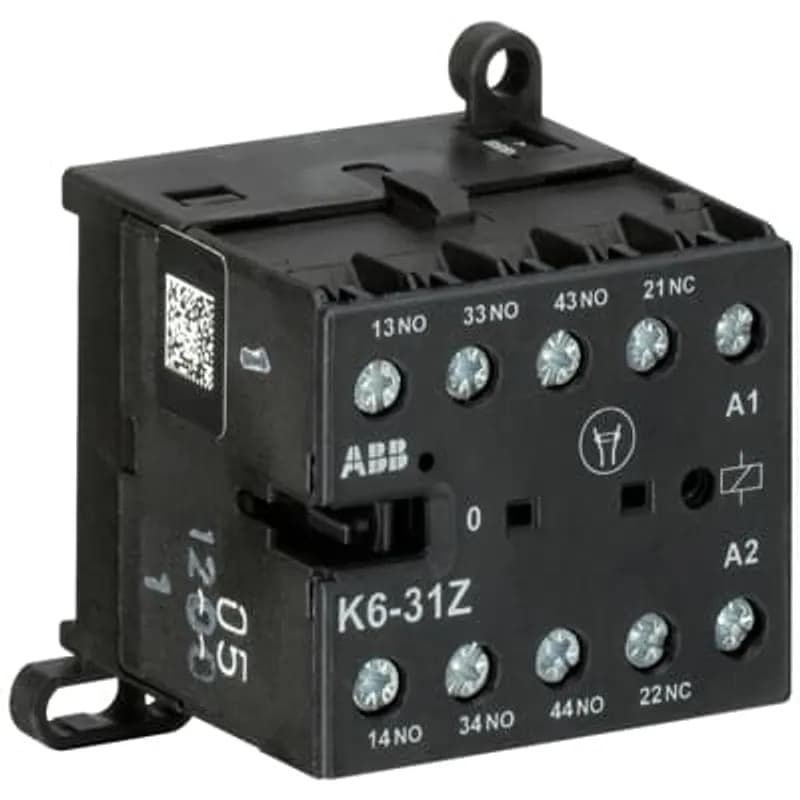

ABB - Electrification K6-31Z-01 - The K6-31Z mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
ABB - Electrification

K6-31Z-01

Contact for Pricing

Overview

The ABB K6-31Z is a compact 4-pole mini contactor relay designed for space-constrained control applications in residential, commercial, and industrial environments. This AC-operated unit features 3 Normally Open (N.O.) and 1 Normally Closed (N.C.) contacts, making it ideal for switching control signals and small loads up to AC-15 4 A / 240 V. The relay is engineered for reliability and efficiency, with a low-consumption coil drawing just 3.5 VA at both pull-in and holding stages, ensuring energy savings without compromising performance. Key features include a hum-free coil for silent operation, which is particularly beneficial in noise-sensitive environments such as offices or residential buildings. The K6-31Z meets the requirements for Mechanically Linked contacts per IEC/EN 60947-5-1 annex L, enhancing safety and reliability in critical circuits. Its compact design (47.5 mm x 42.2 mm x 45.2 mm) allows for easy integration into tight spaces, while the clear switch position indication simplifies status monitoring. Installation flexibility is a major advantage, with support for both rail and wall mounting. The relay also accommodates add-on auxiliary contact blocks for front or side mounting, enabling expanded functionality to meet specific application needs. Available in multiple control circuit voltages (24 V, 48 V, 110-127 V, 220-240 V, and 380-415 V), the K6-31Z provides versatility for global applications. With a weight of just 0.175 kg per unit, it is lightweight yet robust, backed by ABB’s reputation for quality and innovation in motor protection and control solutions.
  • 4-pole design with 3 N.O. + 1 N.C. contacts for versatile control
  • AC-operated with low-consumption coil (3.5 VA at pull-in and holding)
  • Hum-free coil ensures silent operation in sensitive environments
  • Meets IEC/EN 60947-5-1 annex L for mechanically linked contacts
  • Supports rail and wall mounting with add-on auxiliary contact blocks
  • Compact dimensions: 47.5 mm x 42.2 mm x 45.2 mm, weight: 0.175 kg
  • Available in multiple control circuit voltages: 24 V, 48 V, 110-127 V, 220-240 V, 380-415 V

Specifications

Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
Connection Type
Screw Terminal
Current Rating
3 A
Mounting Type
Rail or Wall Mounting
Poles
4P
Rated Control Circuit Voltage
24 V AC
Series
K6
Size
82x110x108mm
Special Features
The K6-31Z mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
Standard
RoHs, CSA, cUL, CE, GOST
Terminal Type
Screw Terminals
Type
Contactors
Voltage Rating
400 V
Package Dimensions (L x W x H)
11.024 IN x 4.528 IN x 2.126 IN
Package Dimensions (L x W x H)
28.001 cm x 11.5011 cm x 5.4 cm
Package Weight (Imperial)
4.012 L
Package Weight (Metric)
1.820 kg

Similar Products

K6-31Z-80

Rated Control Circuit Voltage: 220 ... 240 V AC

Series: K6-31Z

K6-31Z-84

Rated Control Circuit Voltage: 110 ... 127 V AC

Series: K6-31Z

K6-31Z-85

Rated Control Circuit Voltage: 380 ... 415 V AC

Mounting Type: Rail or Wall

Series: K6-31Z

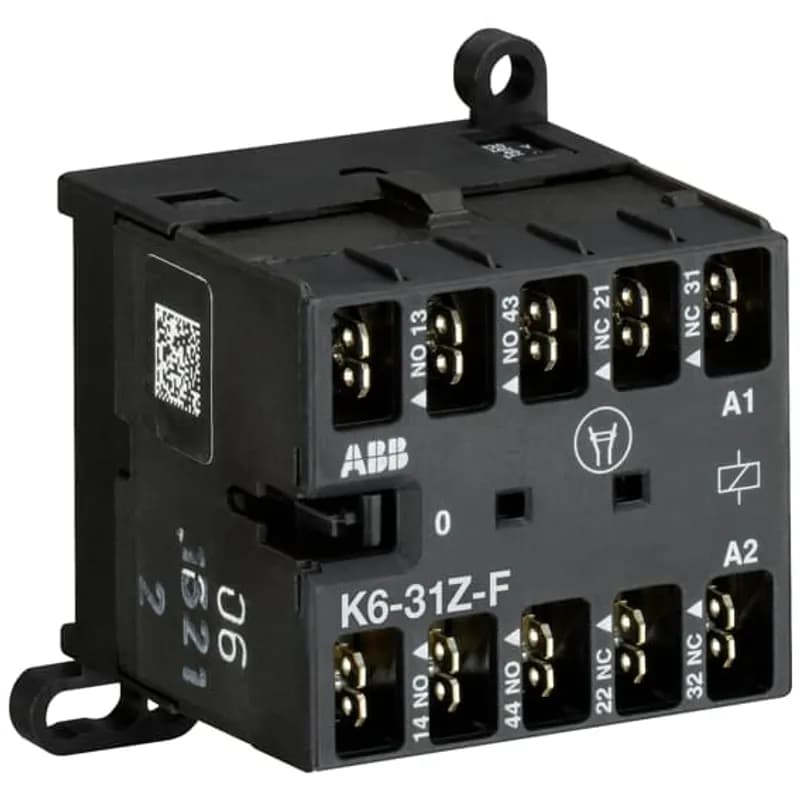

K6-31Z-F-01

Terminal Type: Flat-Pin Connections

Poles: 4

Connection Type: Flat Pin

K6-31Z-F-80

Rated Control Circuit Voltage: 220 ... 240 V AC

Terminal Type: Flat-Pin Connections

Voltage Rating: 400 V AC-15

K6-31Z-F-84

Terminal Type: Flat-Pin Connections

Rated Control Circuit Voltage: 110 ... 127 V AC

Voltage Rating: 400 V AC-15

You May Also Be Interested In

The B6S-30-01 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil, the integrated protective circuit with diodes and additional overvoltage protection, a switch position indication and the integrated possibility for rail or wall mounting.

B6S-30-01-2.8

The B6S-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil, the integrated protective circuit with diodes and additional overvoltage protection, a switch position indication and the integrated possibility for rail or wall mounting.

B6S-30-10-1.7

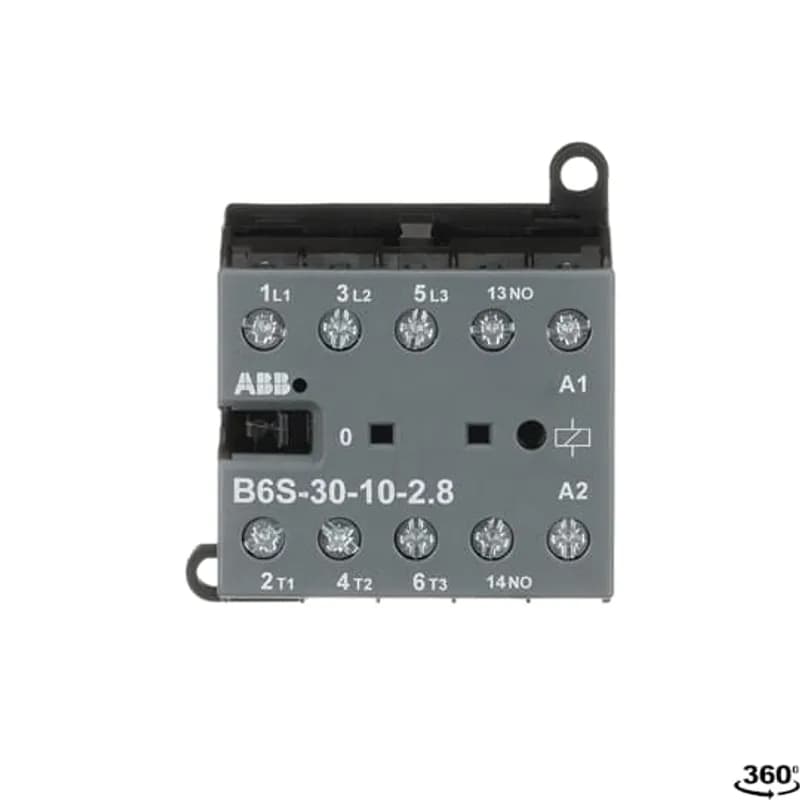

The B6S-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil, the integrated protective circuit with diodes and additional overvoltage protection, a switch position indication and the integrated possibility for rail or wall mounting.

B6S-30-10-2.8

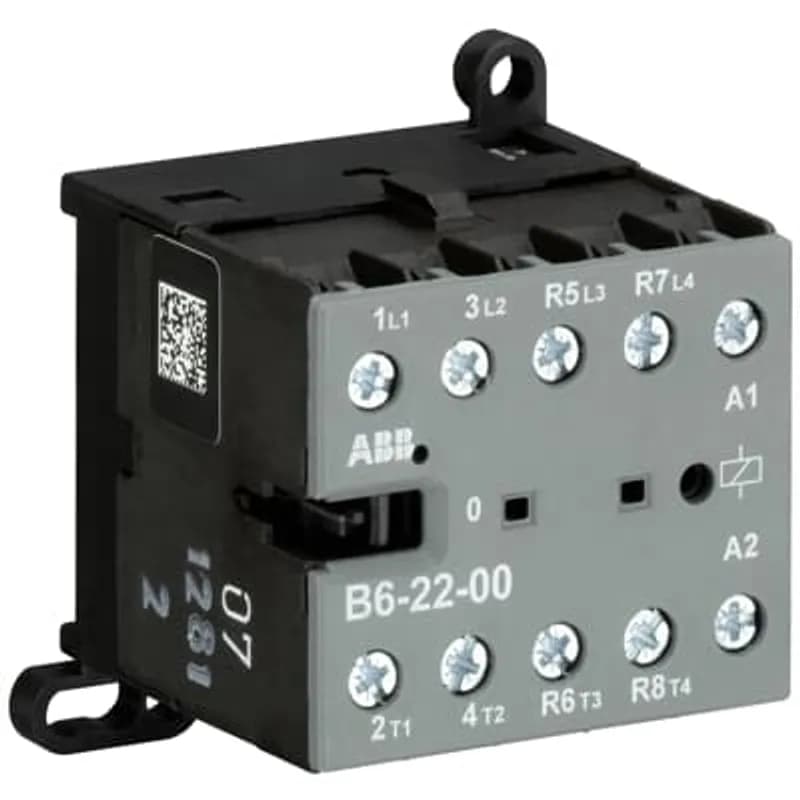

The B6-22-00 mini contactor is a compact 4 pole contactor with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
