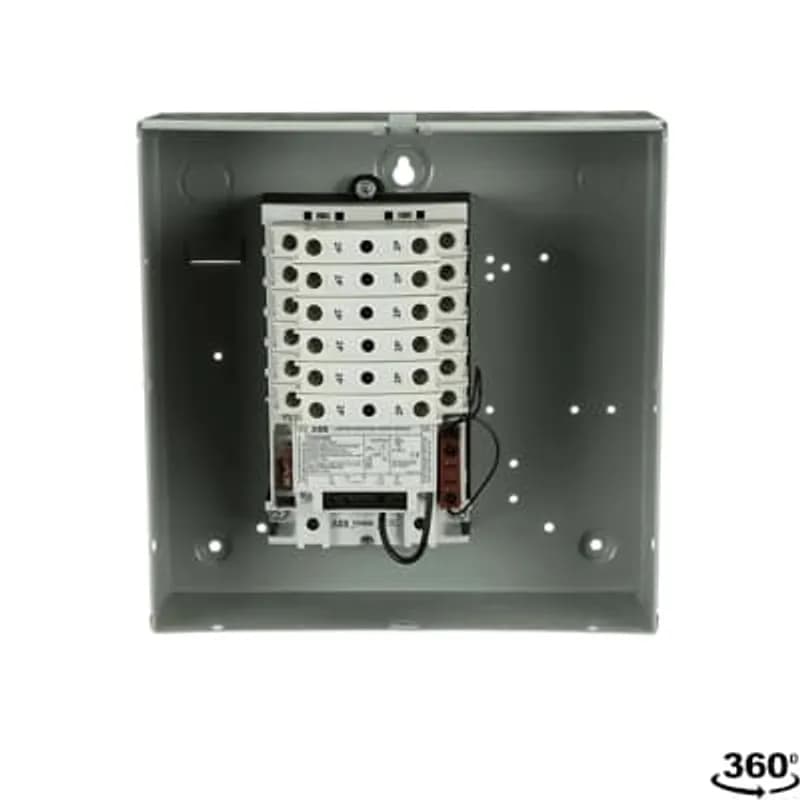

ABB - Electrification CR463MD0CJA10A0 - CR463M Mechanically Held Contactors. Standard Assembled Forms. Modular design permits fast, on-site configuration. 2-12 power poles. 30 amp rating. Snap-in auxiliary contacts. Common components for both electrically and mechanically held versions. Continuously rated, interchangeable coils. Finger-safe terminals. Two-or-three-wire control module: low input VA permits long wire runs. Verifies contact status and has built-in delays that minimize excessively frequent signals from faulty controllers. Come in a wide range of input voltages. Four modules cover input voltages from 24-277 VAC and 12-24 VDC. All modules may be used with coil voltage from 24 VAC-277 VAC. Clear labeling shows control module rating, wire size and torque. Field configurable from standard electrically held contactor with simple, easy-to-install kits of control modules, latch mechanisms and auxiliary contacts.
ABB - Electrification

CR463MD0CJA10A0

UPC: 783166621035

Contact for Pricing

Overview

The ABB CR463M Mechanically Held Contactor (SKU: CR463MD0CJA10A0) offers robust and reliable switching for demanding industrial applications. This standard assembled form features a modular design, allowing for fast, on-site configuration and customization. With a 30 amp rating and the capacity for 2 to 12 power poles, it provides flexible power control. The CR463M series utilizes common components for both electrically and mechanically held versions, simplifying inventory and maintenance. Its continuously rated, interchangeable coils ensure operational longevity and adaptability. Safety is paramount with finger-safe terminals, protecting personnel from electrical hazards. The advanced two-or-three-wire control module boasts low input VA, enabling long wire runs and reducing voltage drop. This module actively verifies contact status and incorporates built-in delays to prevent excessive signaling from faulty controllers, enhancing system stability. The CR463M contactors are available with a wide range of input voltages, with four modules covering 24-277 VAC and 12-24 VDC. All modules are compatible with coil voltages from 24 VAC to 277 VAC. Clear labeling on each unit provides essential information regarding control module rating, wire size, and torque specifications. Field configurability is a key advantage, allowing conversion from a standard electrically held contactor to a mechanically held configuration using simple, easy-to-install kits for control modules, latch mechanisms, and auxiliary contacts. This specific model, CR463MD0CJA10A0, is designed for NEMA Type 4/4X enclosures, offering superior protection against environmental factors. Manufactured in the US, this contactor is built for durability and performance in critical industrial settings.
  • 30 Amp rating with 2-12 power poles for versatile control
  • Modular design for fast, on-site configuration and customization
  • Finger-safe terminals ensure operator safety
  • Advanced control module with contact status verification and built-in delays
  • NEMA Type 4/4X enclosure rating for robust environmental protection

Specifications

Coil Voltage
110V (50 Hz) /115-120 VAC (60 Hz)
Special Features
CR463M Mechanically Held Contactors. Standard Assembled Forms. Modular design permits fast, on-site configuration. 2-12 power poles. 30 amp rating. Snap-in auxiliary contacts. Common components for both electrically and mechanically held versions. Continuously rated, interchangeable coils. Finger-safe terminals. Two-or-three-wire control module: low input VA permits long wire runs. Verifies contact status and has built-in delays that minimize excessively frequent signals from faulty controllers. Come in a wide range of input voltages. Four modules cover input voltages from 24-277 VAC and 12-24 VDC. All modules may be used with coil voltage from 24 VAC-277 VAC. Clear labeling shows control module rating, wire size and torque. Field configurable from standard electrically held contactor with simple, easy-to-install kits of control modules, latch mechanisms and auxiliary contacts.
Package Dimensions (L x W x H)
10.2 IN x 10.2 IN x 4.82 IN
Package Dimensions (L x W x H)
25.908 cm x 25.908 cm x 12.2428 cm
Package Weight (Imperial)
12.400 L
Package Weight (Metric)
5.625 kg
