ABB - Electrification CADP40-10 - Form "C" Aux Contact SPDT. Fits 20-40AmpFrame
ABB - Electrification

CADP40-10

UPC: 662019758503

Contact for Pricing

Overview

The ABB CADP40-10 is a Form C SPDT auxiliary contact block, designed for integration with ABB definite purpose contactors in 20-40 Amp frames. Manufactured by ABB Electrification, this contact block adheres to IEC/EN 60947-5-1 standards, offering a rated insulation voltage of 690V and a conventional thermal current of 16A at 40°C. It supports AC-15 rated operational currents up to 6A at 24-127V, and 4A at 220-240V. For DC-13 applications, it handles up to 3A at 24V DC (72W) and 0.3A at 250V DC (75W). The CADP40-10 features robust screw terminals compatible with rigid or flexible conductors ranging from 0.75mm² to 4mm². It boasts a mechanical durability of 3 million operating cycles and a maximum switching frequency of 300 cycles/hour. This auxiliary contact block is ideal for expanding the control and signaling capabilities of ABB contactors, providing reliable status feedback and interlock functions within industrial automation systems. Its compact design ensures efficient panel space utilization while delivering dependable performance. SKU: CADP40-10.
  • Form C SPDT (Single Pole Double Throw) contact configuration
  • Rated insulation voltage (Ui) of 690V according to IEC/EN 60947-5-1
  • Conventional thermal current (Ith) of 16A at 40°C
  • Screw terminals for rigid/flexible conductors (0.75-4mm²)
  • 3 million mechanical operating cycles for long-term reliability

Specifications

Special Features
Form "C" Aux Contact SPDT. Fits 20-40AmpFrame
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.070 L
Package Weight (Metric)
0.032 kg

Similar Products

CADP40-11

Special Features: Form "Z" SPDT Aux Contact 1NO 1NC. Fits 20-40Amp Frame size

CADP40-20

Current Rating: 20-40 A

Poles: 2 SPDT

Series: CADP

CA4-40E

Size: 82x110x108mm

Standard: RoHs, CSA, cUL, CE, GOST

Type: Contactors

CA4-40EK

Rated Frequency: Auxiliary Circuit 50 Hz / Auxiliary Circuit 60 Hz

Connection Type: Push-in Spring Terminal

Mounting Type: Clip-On

CA4-40ERT

Size: 82x110x108mm

Standard: RoHs, CSA, cUL, CE, GOST

Type: Contactors

CA4-40N

Size: 82x110x108mm

Standard: RoHs, CSA, cUL, CE, GOST

Type: Contactors

You May Also Be Interested In

Form "Z" SPDT Aux Contact 1NO 1NC. Fits 20-40Amp Frame size

CADP40-11

Double Form "C". Qty 2 Aux Contact SPDT. Fits 20-40Amps frames

CADP40-20

FRNT MNT AS LINE AUX CONTACT, 1NO

CA3-10

AUX,1NO,AS/L09-18,FRONT,SPRNG

CA3-10S

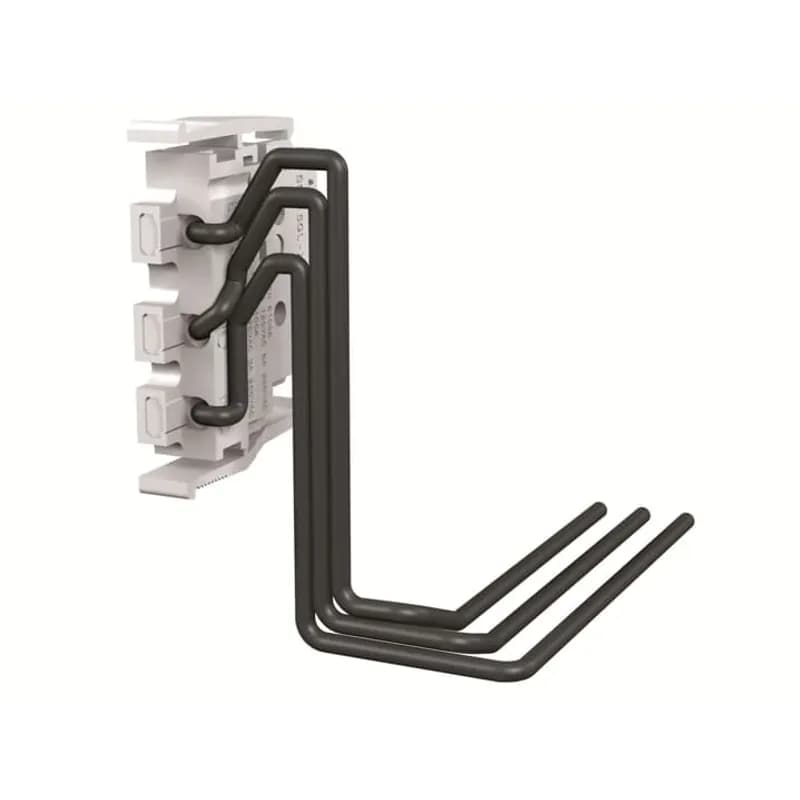

AUX-C 250 V XT1 -XT4 F/P
