Overview
- 3-pole mini contactor for reliable load switching
- 20 A / 690 V (AC-1) and 5.5 kW (AC-3) rating
- 1 auxiliary contact for control signal integration
- Flat pin connection type for easy wiring
- Compact design with rail and wall mounting options
- DIN rail and wall mounting options
- Packaged in quantities of 10 units
Specifications
Application | Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits. |
Rated Control Circuit Voltage | 12 V DC |
Size | 82x110x108mm |

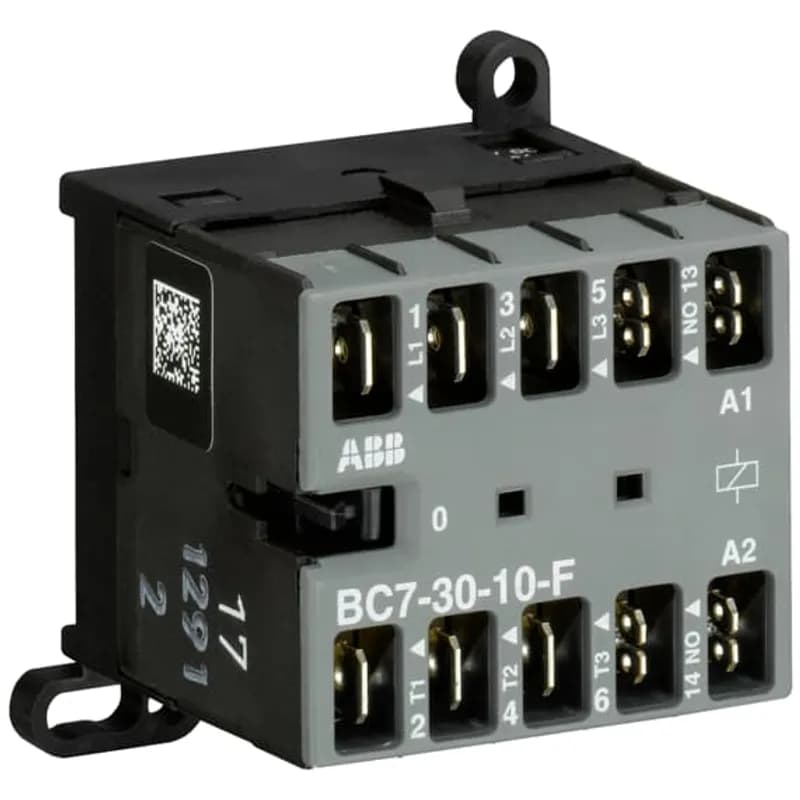

Special Features | The BC7-30-10-F mini contactor is a compact 3 pole contactor with 1 auxiliary contact and flat pin connection. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting. |
Standard | RoHs, CSA, cUL, CE, GOST |
Terminal Type | Flat-Pin Connections |
Type | Contactors |
Package Dimensions (L x W x H) | 11.024 IN x 4.528 IN x 2.126 IN |
Package Dimensions (L x W x H) | 28.001 cm x 11.5011 cm x 5.4 cm |
Package Weight (Imperial) | 3.902 L |
Package Weight (Metric) | 1.770 kg |
Frequently Asked Questions
What is the rated control circuit voltage?
The rated control circuit voltage is 24V DC.
What type of product is the BC7-30-10-F-07?
The BC7-30-10-F-07 is a compact, 3-pole mini contactor with 1 auxiliary contact and flat pin connection.
What are the general use ratings for this mini contactor?
The general use rating is UL CSA 600V AC, 30A.
What are the dimensions of the product?
The product has a net depth of 70mm, width of 45mm, and height of 75mm.
What is the maximum operating voltage for the main circuit?
The maximum operating voltage for the main circuit is 600V AC.
What is the rated insulation voltage?
The rated insulation voltage is 690V.
What is the ambient air temperature range for operation?
The device can operate in an ambient air temperature range of -25 to 50 degrees C.
What is the maximum operating altitude for this device?
The maximum operating altitude is 2000 meters.
What is the rated operational power at 400V AC?
The rated operational power at 400V AC is 15 kW (three phase).
What are the rated operational currents at different voltages and temperatures?
At 400V AC and 50 degrees C, the rated operational current is 30A. At 600V AC and 50 degrees C, it is 22A.
