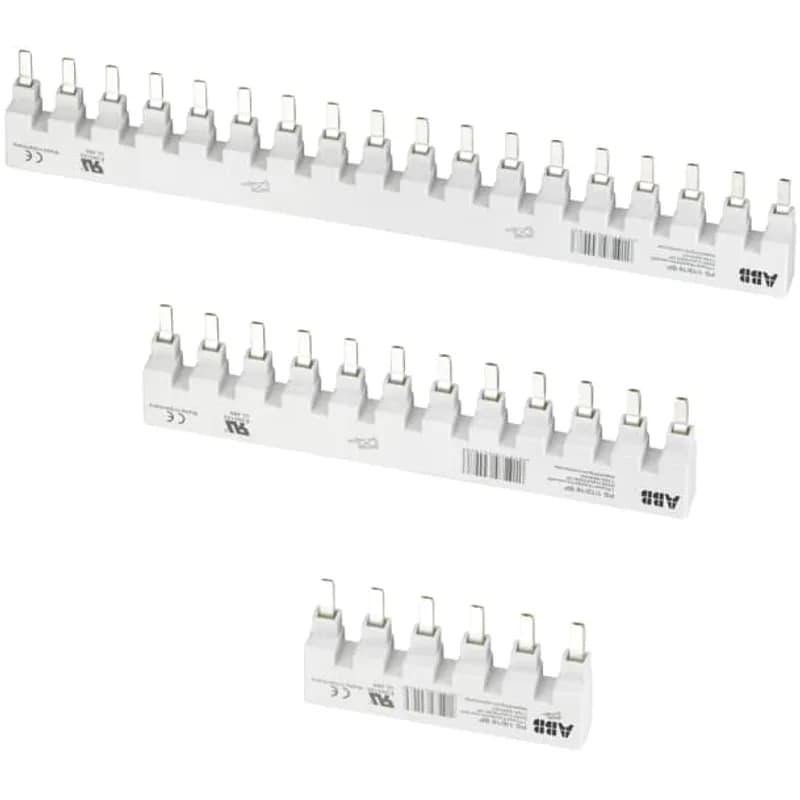

ABB - Electrification AST 35/38-2 CB - Feeder MCB 2-3ph UL508 Busbar
ABB - Electrification

AST 35/38-2 CB

Contact for Pricing

Overview

The ABB AST 35/38-2 CB is a feeder terminal designed for industrial power distribution in 2- or 3-phase busbar systems compliant with UL 508 standards. This terminal supports Miniature Circuit Breakers (MCBs) and E90 fuse disconnectors, making it ideal for motor control centers, switchgear, and panelboards. The terminal features a durable PA66 housing (gray RAL 7035), brass chassis, and zinc-plated steel terminal screws for reliable performance. It offers a protection degree of IP20 and supports conductor cross-sections from 6-50 mm² (10 AWG to 1/0 AWG) for solid/stranded copper wires and 6-35 mm² (10 AWG to 2 AWG) for flexible wires with ferrules. Electrical ratings include 1,000 V AC/DC (UL) and 1,000 V AC / 1,500 V DC (IEC) for voltage, with current ratings of 115 A (UL) and 160 A (IEC). Specified tightening torques ensure secure connections, and the pin length is designed for shock protection. Certified for CE, RoHS, and REACH compliance, this terminal is cULus listed under UL 508 for supplementary protection circuits.
  • Feeder terminal for 2- or 3-phase UL508 busbar systems
  • Supports Miniature Circuit Breakers (MCBs) and E90 fuse disconnectors
  • Voltage rating: 1000V AC/DC (UL), 1000V AC / 1500V DC (IEC)
  • Current rating: 115A (UL), 160A (IEC)
  • Conductor compatibility: 6-50 mm² solid/stranded, 6-35 mm² flexible with ferrules

Specifications

Connection Type
Busbar
Current Rating
115 A (UL), 160 A (IEC)
IP Rating
IP20
Material
PA66 housing, brass chassis, zinc-plated steel terminal screw
Mounting Type
Busbar system
Poles
2-3 phase
Series
AST 35/38
Voltage Rating
1,000 V AC/DC (UL), 1,000 V AC / 1,500 V DC (IEC)
Package Dimensions (L x W x H)
7.205 IN x 3.622 IN x 3.15 IN
Package Dimensions (L x W x H)
18.3007 cm x 9.1999 cm x 8.001 cm
Package Weight (Imperial)
0.276 L
Package Weight (Metric)
0.125 kg
