ABB - Electrification AF52-30-22-13 - AF52 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 2-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles with a non-removable front-mounted 2 N.O. + 2 N.C. auxiliary contact block, side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 including the "Mechanically Linked" symbol on the contactor side. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available. Note: 2-stack contactors available in some countries: please consult your ABB representative.
ABB - Electrification

AF52-30-22-13

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

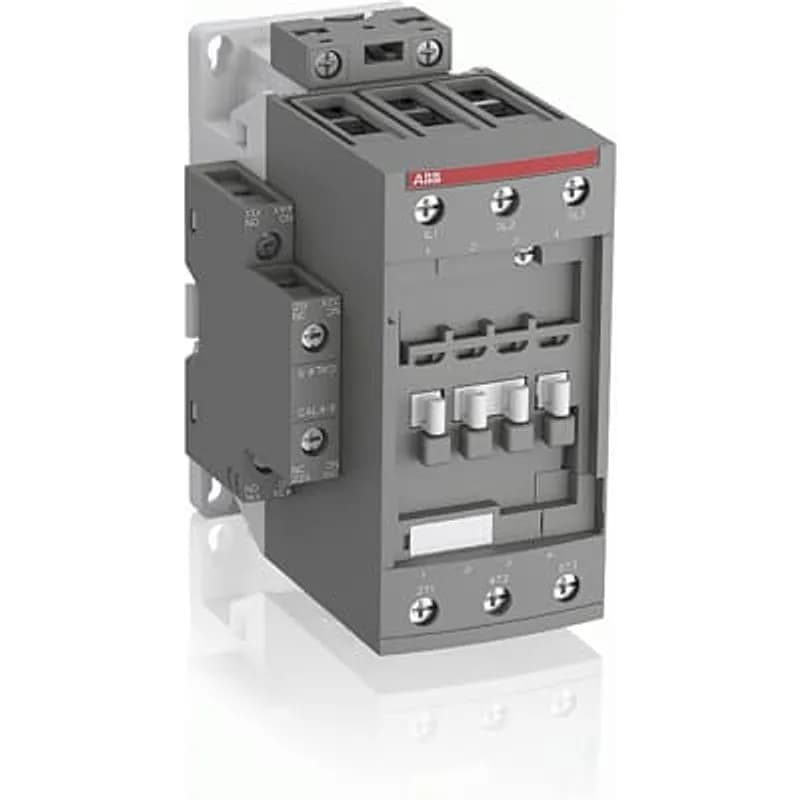

The ABB AF52-30-22-13 is a robust 3-pole contactor designed for reliable control of power circuits up to 690 V AC and 220 V DC. Primarily utilized for managing 3-phase motors and non-inductive or slightly inductive loads, this contactor offers significant operational flexibility. Its electronic coil interface accepts a broad control voltage range, with specific models like the AF52-30-11-12 covering 48-130 V AC/DC. This wide voltage acceptance minimizes the need for multiple coil types across different global installations. The AF52 series features built-in surge protection, eliminating the requirement for external surge suppressors and simplifying installation. This block-type contactor is equipped with 3 main poles and a non-removable front-mounted auxiliary contact block featuring 2 Normally Open (N.O.) and 2 Normally Closed (N.C.) contacts. Additional side-mounted auxiliary contact blocks can be added for expanded control configurations. The AF52-30-22-13 specifically offers a general use rating of 80 A at 600 V AC and is rated for AC-1 at 80 A with a temperature of θ ≤ 40 °C. The control circuit operates within a range of 48-130 V AC/DC. Mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 and N.C. mirror contacts compliant with Annex F of IEC 60947-4-1 are available, ensuring adherence to international standards. A comprehensive selection of accessories is available to further customize its application. Key Specifications: - SKU: AF52-30-22-13 - Manufacturer: ABB - Electrification - Poles: 3 - General Use Rating (600 V AC): 80 A - Rated Operational Current AC-1 (θ ≤ 40 °C): 80 A - Rated Control Circuit Voltage (Uc min. ... Uc max.): 48...130 V AC/DC - Auxiliary Contacts Fitted: 2 N.O. + 2 N.C. (front-mounted) - Control Circuit: AC or DC operated - Built-in surge protection - Compliant with IEC 60947-5-1 and IEC 60947-4-1 standards - Country of Origin: US
  • ABB AF52-30-22-13 3-pole contactor for power circuits up to 690 V AC and 220 V DC.
  • Rated for 80 A general use at 600 V AC and 80 A AC-1 at θ ≤ 40 °C.
  • Features an electronic coil interface with a control voltage range of 48-130 V AC/DC.
  • Includes built-in surge protection, eliminating the need for external suppressors.
  • Equipped with 3 main poles and a front-mounted 2 N.O. + 2 N.C. auxiliary contact block.

Specifications

Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
Frequency
50/60 Hz
Poles
3
Rated Control Circuit Voltage
50 Hz /60 Hz DC Operation 100 ... 250 V
Series
AF52
Size
82x110x108mm
Special Features
AF52 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 2-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles with a non-removable front-mounted 2 N.O. + 2 N.C. auxiliary contact block, side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 including the "Mechanically Linked" symbol on the contactor side. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available. Note: 2-stack contactors available in some countries: please consult your ABB representative.
Standard
RoHs, CSA, cUL, CE, GOST
Terminal Type
Screw Terminals
Type
Contactors
Voltage Rating
690 V AC / 220 V DC
Package Dimensions (L x W x H)
5.906 IN x 7.087 IN x 4.016 IN
Package Dimensions (L x W x H)
15.0012 cm x 18.001 cm x 10.2006 cm
Package Weight (Imperial)
2.513 L
Package Weight (Metric)
1.140 kg
MT-63 34A 3D SCREW EXP (MT63-3D-34-S-E)

1311001000

MT-63 34A 3D SCREW EXP (MT63-3D-34-S-E)
MT-63 19A 3D SCREW EXP (MT63-3D-19-S-E)

1311000700

MT-63 19A 3D SCREW EXP (MT63-3D-19-S-E)
CONTACT BLOCK BU BLB-02

BLB-02

CONTACT BLOCK BU BLB-02
CONTACT BLOCK BU BFB-40

BFB-40

CONTACT BLOCK BU BFB-40
Copper One-Hole Lug, 45 Degree Bend Standard Barrel, Peep Hole, Max 35kV, Wire Size #1 AWG, 1/2 Inch Bolt Size, Silver Plated,Die Code 37, Die Color Code Green

54150UFSP

Copper One-Hole Lug, 45 Degree Bend Standard Barrel, Peep Hole, Max 35kV, Wire Size #1 AWG, 1/2 Inch Bolt Size, Silver Plated,Die Code 37, Die Color Code Green
One-hole, metric conductor, standard barrel with window lug, 4-6mm wire, M8 stud hole.

LCMA6-8-C

One-hole, metric conductor, standard barrel with window lug, 4-6mm wire, M8 stud hole.
