ABB - Electrification AF26Z-30-00-30 - AF26Z 3-pole contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF26Z contactors with coil 30 include a 24 V DC electronic coil interface with a built-in surge suppression, obtaining a reduced holding coil consumption up to 1.7 W for a low panel energy consumption and a direct control by PLC-output ≥ 250 mA 24 V DC, without need of additional interface relay. Only AF..Z..-30 contactors need to respect the polarity on the coil terminals (A1+ and A2-). The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks. (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Accessories: a wide range of accessories is available.
ABB - Electrification

AF26Z-30-00-30

Contact for Pricing

Overview

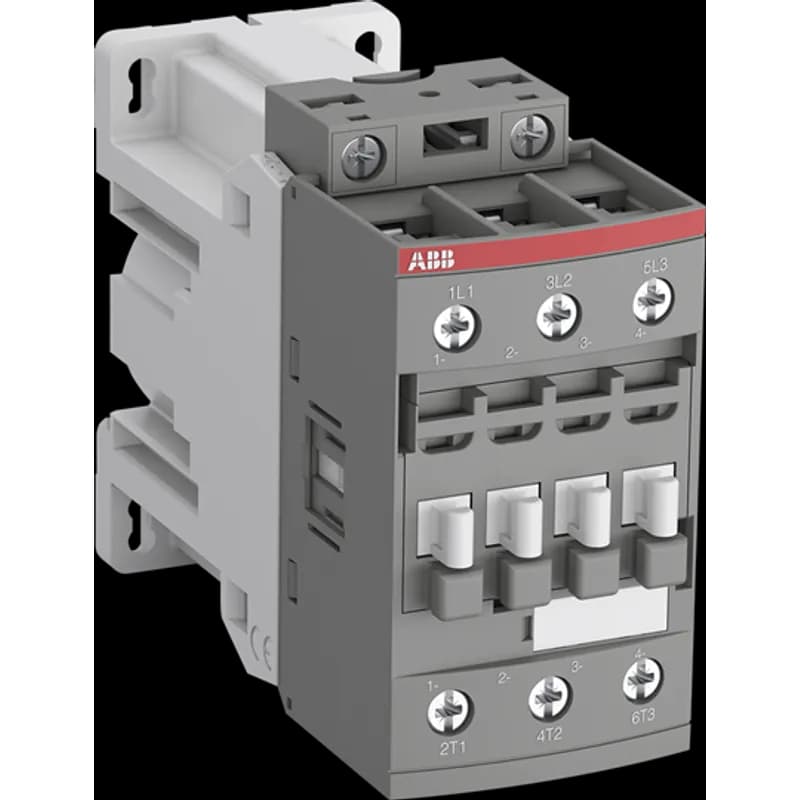

The ABB AF26Z-30-00-30 is a robust 3-pole contactor designed for reliable control of power circuits up to 690 V AC and 220 V DC. Primarily utilized for managing 3-phase motors and non-inductive or slightly inductive loads, this contactor offers exceptional performance and energy efficiency. Its integrated 24 V DC electronic coil interface features built-in surge suppression, significantly reducing holding coil consumption to as low as 1.7 W. This low energy draw contributes to reduced panel power consumption and enables direct control via PLC outputs of ≥ 250 mA at 24 V DC, eliminating the need for additional interface relays. Note that AF..Z..-30 contactors require correct polarity on the coil terminals (A1+ and A2-). The AF... series contactors are built with a block-type design, featuring 3 main poles and the option for front and side-mounted add-on auxiliary contact blocks. Mechanically-linked auxiliary contacts comply with IEC 60947-5-1 Annex L, and N.C. mirror contacts meet IEC 60947-4-1 Annex F. A comprehensive range of accessories is available to customize functionality. This model is rated for 400V AC-3 at 26A and supports 3-phase motor ratings up to 11 kW (15 hp) at 400V. It also handles general use rating of 45A at 600V AC. The unit's dimensions are 45 mm (width) x 80 mm (height) x 111.5 mm (depth). ABB's commitment to quality ensures dependable operation in demanding industrial applications. SKU: AF26Z-30-00-30. Manufacturer: ABB - Electrification. UNSPSC Code: 39121529. Country of Origin: US.
  • Controls power circuits up to 690 V AC and 220 V DC
  • Ideal for 3-phase motors and non-inductive/slightly inductive loads
  • 24 V DC electronic coil interface with surge suppression
  • Low holding coil consumption (up to 1.7 W) for energy efficiency
  • Direct PLC control capability (≥ 250 mA 24 V DC) without interface relay

Specifications

Mounting Type
Block type
Poles
3
Poles
3P
Rated Control Circuit Voltage
DC Operation 24 V
Series
AF
Series
AF26Z
Special Features
AF26Z 3-pole contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF26Z contactors with coil 30 include a 24 V DC electronic coil interface with a built-in surge suppression, obtaining a reduced holding coil consumption up to 1.7 W for a low panel energy consumption and a direct control by PLC-output ? 250 mA 24 V DC, without need of additional interface relay. Only AF..Z..-30 contactors need to respect the polarity on the coil terminals (A1+ and A2-). The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks. (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Accessories: a wide range of accessories is available.
Terminal Type
Screw Terminals
Voltage Rating
690 V AC / 220 V DC
Package Dimensions (L x W x H)
4.409 IN x 3.78 IN x 1.969 IN
Package Dimensions (L x W x H)
11.1989 cm x 9.6012 cm x 5.0013 cm
Package Weight (Imperial)
1.160 L
Package Weight (Metric)
0.526 kg
