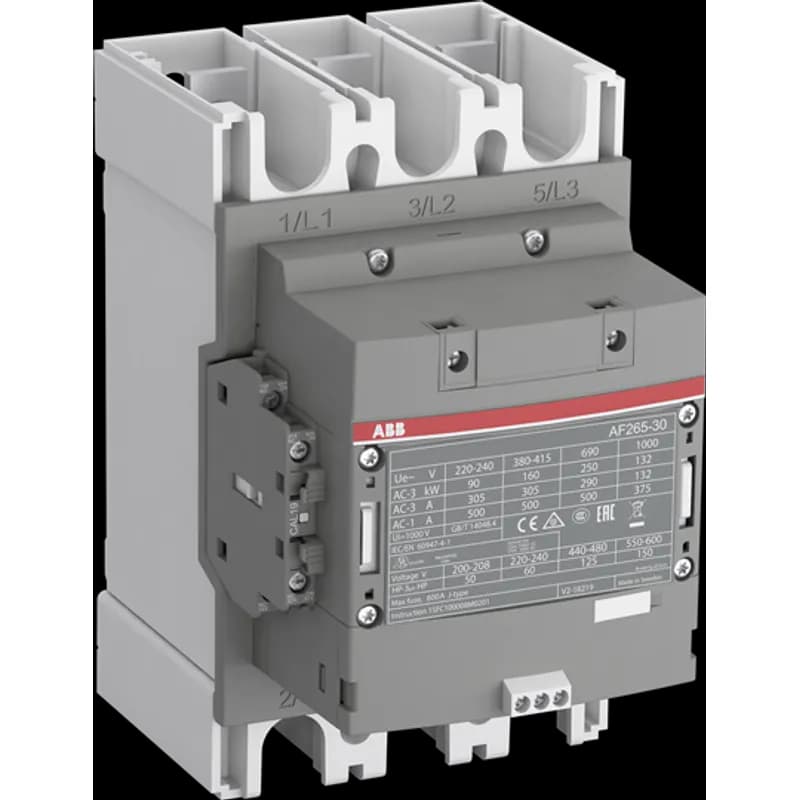

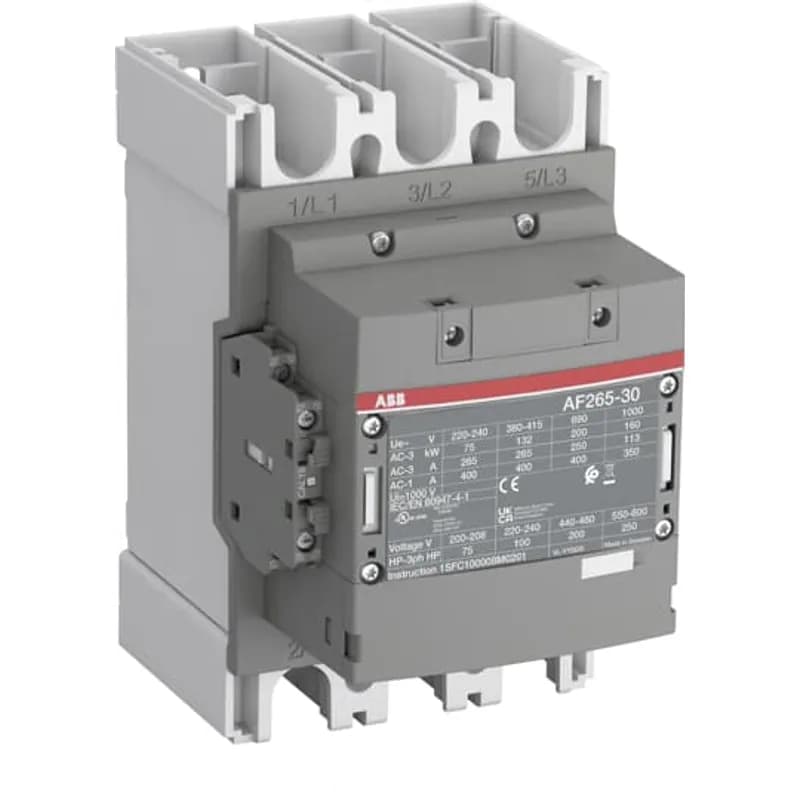

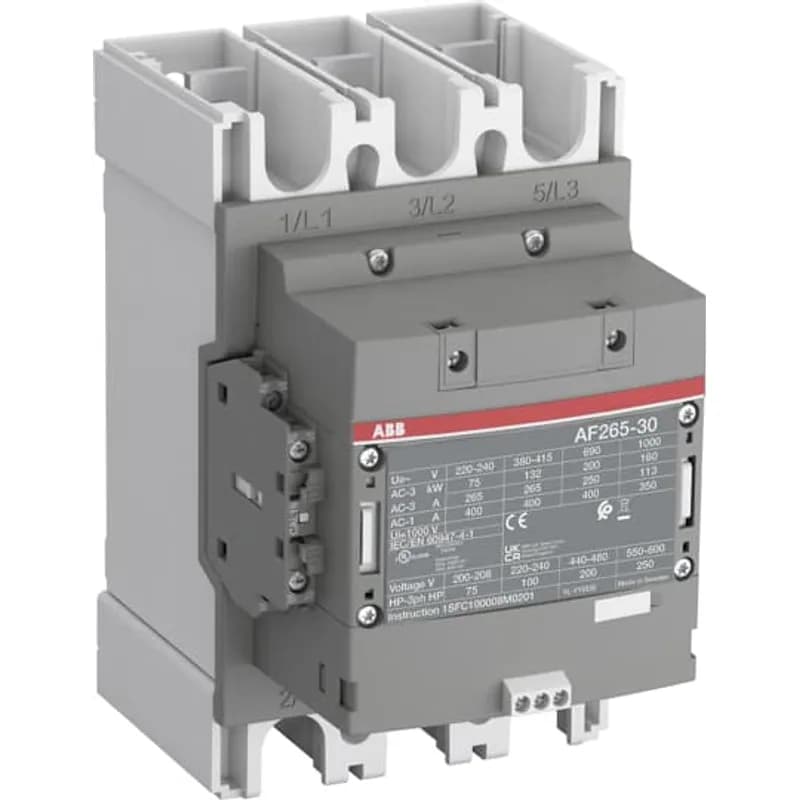

ABB - Electrification AF265-30-22-12 - A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 48-130 V, 50/60 Hz and DC
ABB - Electrification

AF265-30-22-12

Contact for Pricing

Overview

The ABB AF265-30-22-12 3-phase contactor is a robust industrial solution designed for critical applications including motor starting, isolation, bypass, and distribution systems. Engineered by ABB - Electrification, a global leader in power and automation technologies, this contactor delivers reliable performance in demanding environments. Key features include a wide control voltage range of 48-130V, supporting both AC (50/60 Hz) and DC operation. This versatility ensures compatibility with diverse control systems, reducing the need for additional components. The AF265-30-22-12 is rated for applications up to a maximum of 1000V, making it suitable for medium to high-voltage industrial systems. Built for durability, the contactor is ideal for heavy-duty applications where reliability and safety are paramount. Its design adheres to stringent industrial standards, ensuring long-term operational efficiency and minimal maintenance requirements. Whether used in motor control centers, distribution panels, or bypass systems, the AF265-30-22-12 provides consistent performance. ABB’s reputation for innovation and quality is reflected in this contactor, which combines advanced engineering with practical functionality. The AF265-30-22-12 is part of ABB’s comprehensive portfolio of industrial control products, trusted by professionals worldwide for its precision and dependability.
  • 3-phase contactor for motor starting, isolation, bypass, and distribution
  • Rated for applications up to 1000V
  • Wide control voltage range: 48-130V (AC 50/60 Hz and DC)
  • Designed for heavy-duty industrial environments
  • Manufactured by ABB - Electrification, a global leader in power and automation

Specifications

Rated Control Circuit Voltage
50 Hz /60 Hz DC Operation 48 ... 130 V
Special Features
A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 48-130 V, 50/60 Hz and DC
Terminal Type
Main Circuit: Bars
Package Dimensions (L x W x H)
6.89 IN x 8.78 IN x 10.63 IN
Package Dimensions (L x W x H)
17.5006 cm x 22.3012 cm x 27.0002 cm
Package Weight (Imperial)
11.784 L
Package Weight (Metric)
5.345 kg

Similar Products

AF265-30-22-11

Rated Control Circuit Voltage: 50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V

AF265-30-22-32

AF265-30-22-42

Voltage Rating: 110-120 V

Current Rating: 350 A

Frequency: 50/60 Hz

AF265-30-22-31

Voltage Rating: 24-60V AC / 20-60V DC

Current Rating: 350A

Poles: 3P

AF265-30-22-33

Rated Control Circuit Voltage: 50 Hz /60 Hz DC Operation 100 ... 250 V

Voltage Rating: 1000 V

Poles: 3P

AF265-30-22-34

Rated Control Circuit Voltage: 50 Hz /60 Hz DC Operation 250 ... 500 V

You May Also Be Interested In

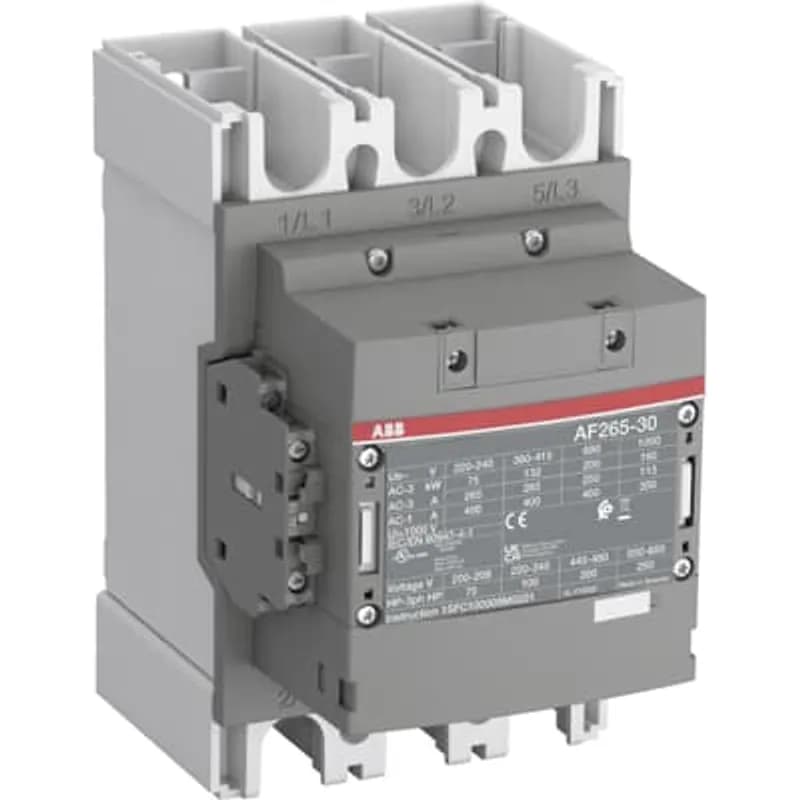

A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 48-130 V, 50/60 Hz and DC

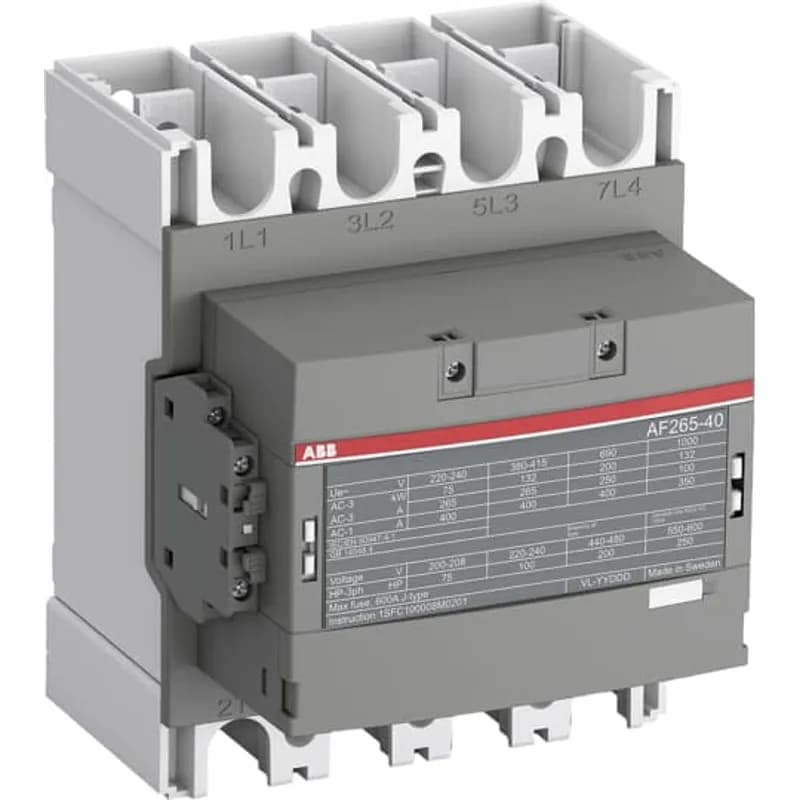

AF265-40-22-12

A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 48-130 V, 50/60 Hz and DC

AF265-30-11-12

A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 48-130 V, 50/60 Hz and DC

AF265-30-00-12

A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 48-130 V, 50/60 Hz and DC

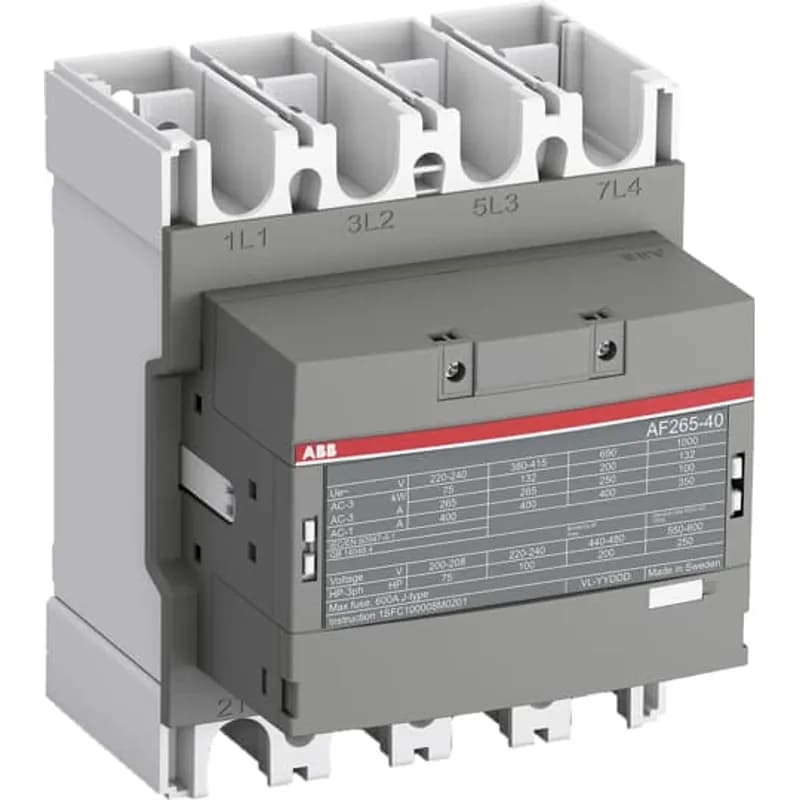

AF265-40-11-12
