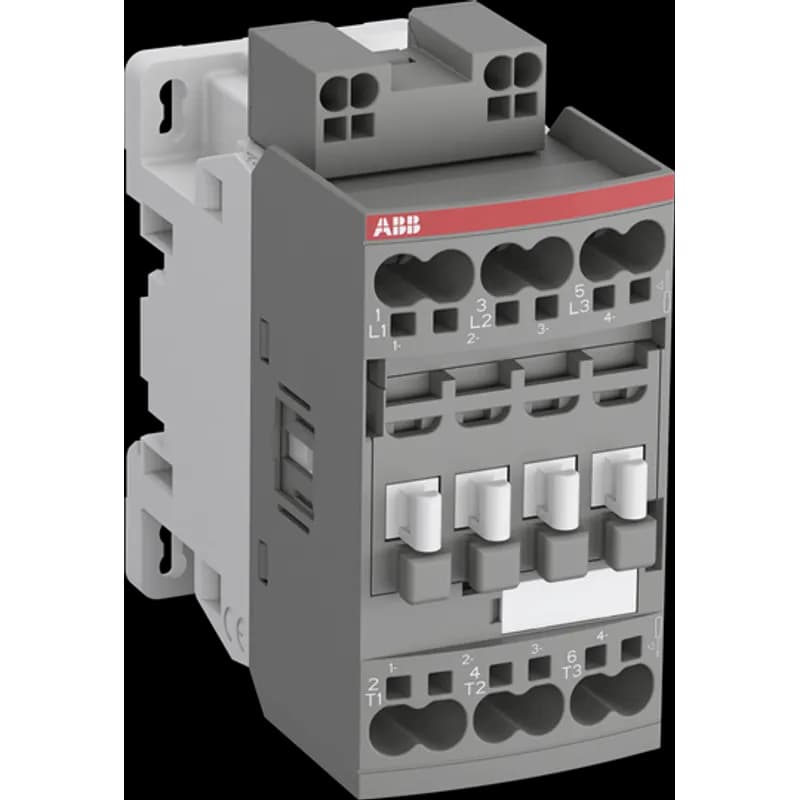

Overview
- 3-pole contactor for 3-phase motors and loads up to 690 V AC / 220 V DC
- Electronic coil interface accepts 24–500 V AC (50/60 Hz) or 20–500 V DC (only 4 coils cover all global voltages)
- Built-in surge protection eliminates need for external suppressors (IEC compliant)
- Push-in spring terminals enable tool-free, 50% faster wiring with secure, vibration-resistant connections
- 1-stack block design with 3 main poles, front/side auxiliary contacts (IEC 60947-5-1 & 60947-4-1 compliant)
Specifications
Connection Type | Push-in Spring terminals |
Frequency | 50/60 Hz |
Mounting Type | Block type |
Poles | 3 |
Rated Control Circuit Voltage | 50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V |
Series | AF |
Special Features | AF26..K 3-pole contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. AF26..K include Push-in Spring terminals. Only one push is all you need for extremely fast wiring: faster than ever installation, easier than ever wiring, reliable as ever connections. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks. (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Accessories: a wide range of accessories is available. |
Terminal Type | Push-in Spring Terminals |
Voltage Rating | 690 V AC / 220 V DC |
Package Dimensions (L x W x H) | 3.386 IN x 3.661 IN x 1.772 IN |
Package Dimensions (L x W x H) | 8.6004 cm x 9.2989 cm x 4.5009 cm |
Package Weight (Imperial) | 0.750 L |
Package Weight (Metric) | 0.340 kg |
Frequently Asked Questions
How many main poles does the AF26..K have?
The AF26..K has 3 main poles for 3-phase applications.
Does the AF26..K require external surge protection?
No. The AF26..K includes built-in surge protection, eliminating the need for additional surge suppressors.
Is the AF26..K suitable for motor control applications?
Yes. The AF26..K is designed for controlling 3-phase motors and slightly inductive loads.
What voltage range does the AF26..K control coil accept?
The control coil accepts 24–500 V AC (50/60 Hz) or 20–500 V DC, covering all common global voltages with only four coil variants.
What is the maximum load voltage for the AF26..K?
The AF26..K supports load voltages up to 690 V AC and 220 V DC.
What type of terminals does the AF26..K use?
The AF26..K uses push-in spring terminals for tool-free, single-push wiring with secure, vibration-resistant connections.
What standards does the AF26..K comply with?
The AF26..K complies with IEC 60947-5-1 (mechanically-linked auxiliary contacts) and IEC 60947-4-1 (N.C. mirror contacts).
Can auxiliary contact blocks be mounted on the AF26..K?
Yes. The AF26..K supports front and side-mounted auxiliary contact blocks for expanded functionality.
How to Install the ABB AF26-30-00K-11 Contactor
Step-by-step guide to mounting and wiring the AF26..K contactor
Estimated time: 15m
Tools needed:
Screwdriver, Wire strippers
Supplies needed:
DIN rail, Mounting screws, Control wires
- Mount the contactor
Secure the AF26..K to a DIN rail or flat surface using the provided mounting screws.
- Connect control wires
Insert control wires into the push-in spring terminals and push firmly until seated. Verify no wire is loose.
- Connect load wires
Connect load wires to the main poles (L1, L2, L3) ensuring proper phase alignment. Tighten terminal screws to specified torque.
- Verify connections
Visually inspect all connections for security. Apply power and test operation with a multimeter to confirm proper switching.
