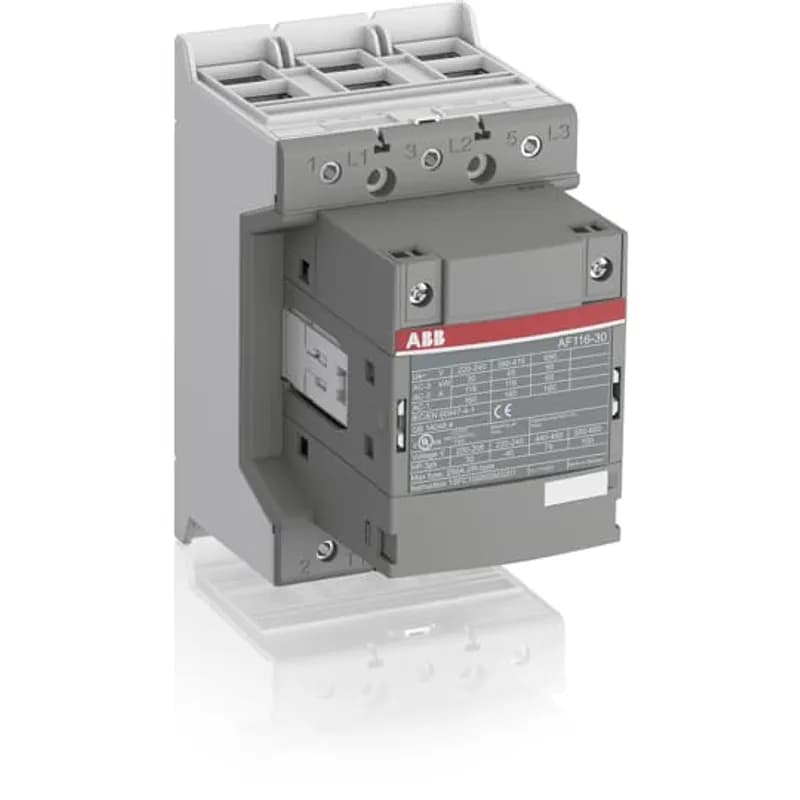

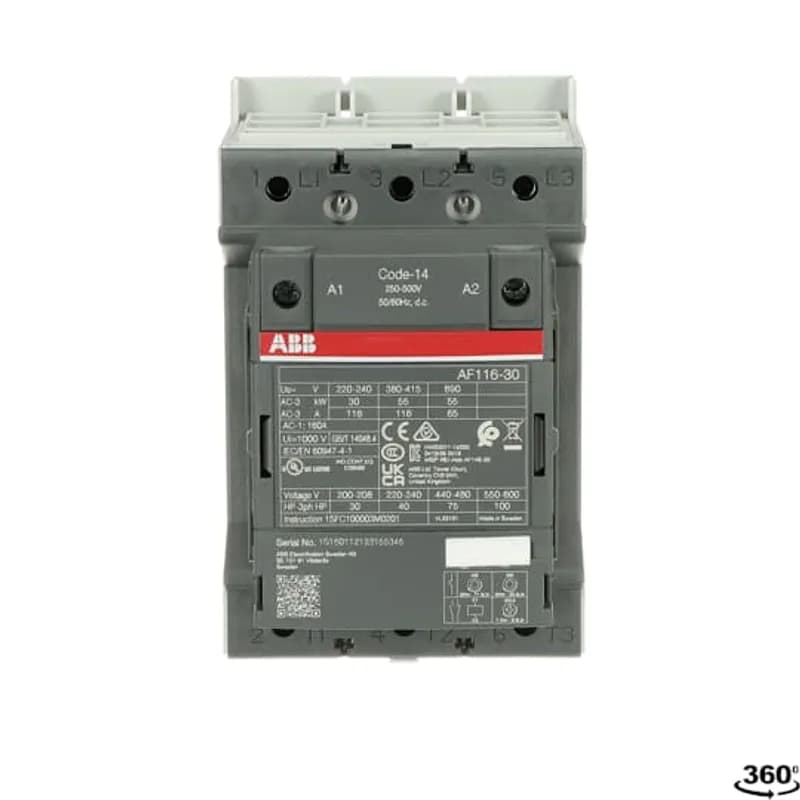

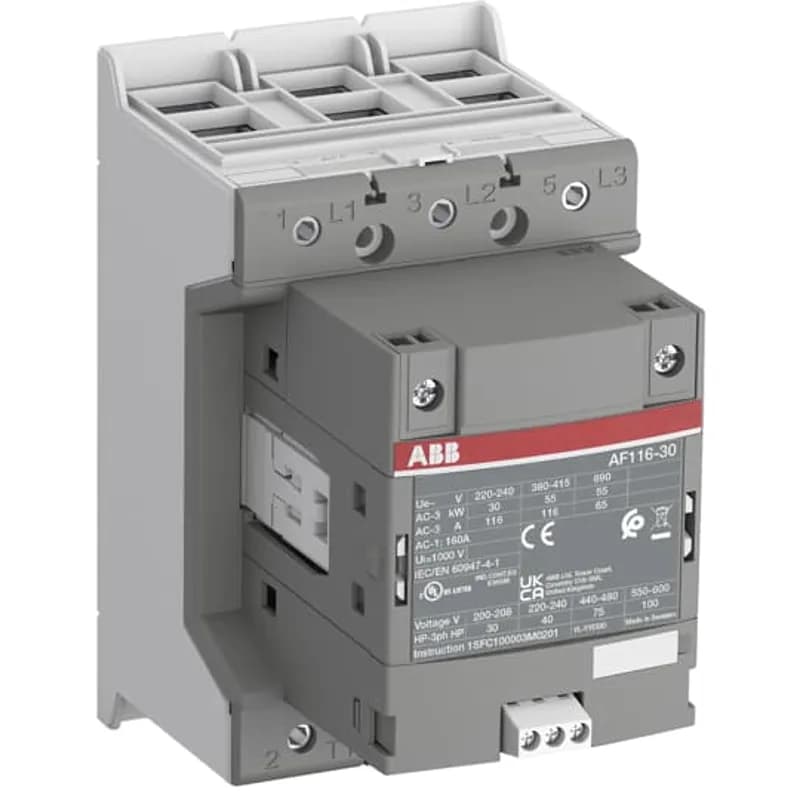

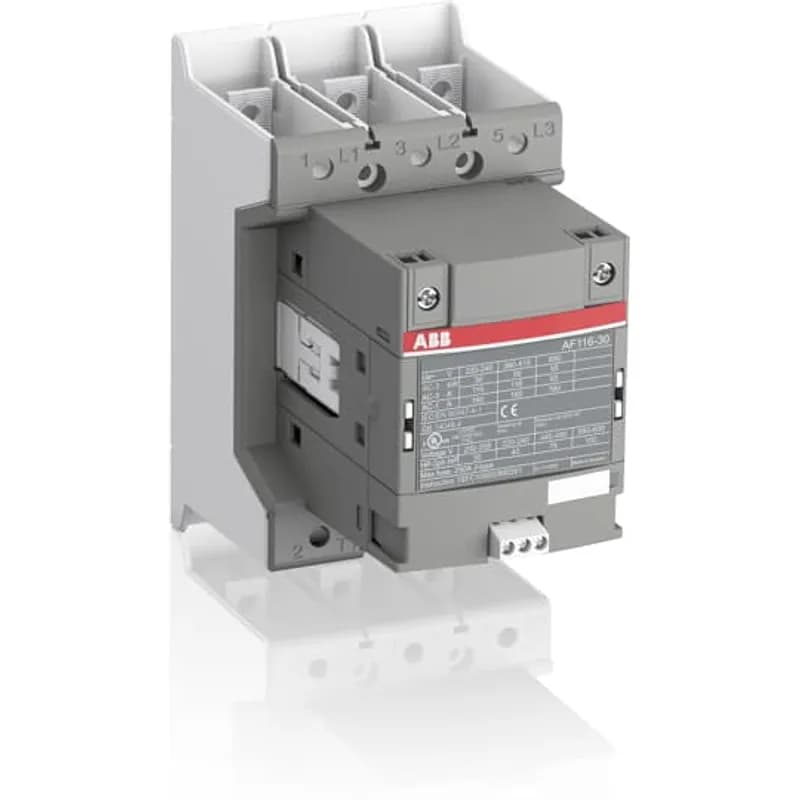

ABB - Electrification AF116-30-00-34 - A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Controlled with PLC and with wide control voltage range 250-500 V, AC/DC
ABB - Electrification

AF116-30-00-34

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB AF116-30-00-34 3-phase contactor is a robust industrial solution designed for demanding applications in motor starting, isolation, bypass, and distribution systems. Engineered by ABB - Electrification, a global leader in power and automation technologies, this contactor delivers reliable performance in high-voltage environments up to 690V. Its versatile design supports both AC and DC control voltages within a wide range of 250-500V, making it compatible with PLC-driven systems and industrial automation setups. Ideal for heavy-duty industrial applications, the AF116-30-00-34 ensures seamless operation in motor control centers, distribution panels, and bypass systems. The contactor’s compatibility with PLC interfaces enhances system integration, allowing for precise control and monitoring in modern industrial environments. With a focus on durability and efficiency, this contactor minimizes downtime and maintenance costs while maximizing operational reliability. ABB’s reputation for innovation and quality is reflected in the AF116-30-00-34, a product that meets stringent industry standards. Whether used in manufacturing plants, utilities, or commercial facilities, this contactor provides a dependable solution for critical power distribution and motor control tasks. Trust ABB to deliver power products that drive efficiency and reliability in your operations.
  • 3-phase contactor for motor starting, isolation, bypass, and distribution
  • Rated for applications up to 690V
  • Wide control voltage range: 250-500V AC/DC
  • PLC-compatible for seamless automation integration
  • Manufactured by ABB - Electrification for reliability and performance

Specifications

Poles
3
Rated Control Circuit Voltage
50 Hz /60 Hz DC Operation 250 ... 500 V
Series
AF116
Special Features
A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Controlled with PLC and with wide control voltage range 250-500 V, AC/DC
Terminal Type
Double Clamp
Voltage Rating
690 V
Package Dimensions (L x W x H)
7.638 IN x 4.528 IN x 6.654 IN
Package Dimensions (L x W x H)
19.4005 cm x 11.5011 cm x 16.9012 cm
Package Weight (Imperial)
4.295 L
Package Weight (Metric)
1.948 kg

Similar Products

AF116-30-00-31

Voltage Rating: 24-60V AC/DC

Current Rating: 160A

Poles: 3P

AF116-30-00-32

Voltage Rating: 48-130V DC

Current Rating: 160A

Poles: 3P

AF116-30-00-33

Rated Control Circuit Voltage: 50 Hz /60 Hz DC Operation 100 ... 250 V

Poles: 3P

AF116-30-00-14

AF116-30-00-11

Rated Control Circuit Voltage: 50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V

AF116-30-00-12

Rated Control Circuit Voltage: 50 Hz /60 Hz DC Operation 48 ... 130 V
