ABB - Electrification
A1A060TW
Contact for Pricing
Overview

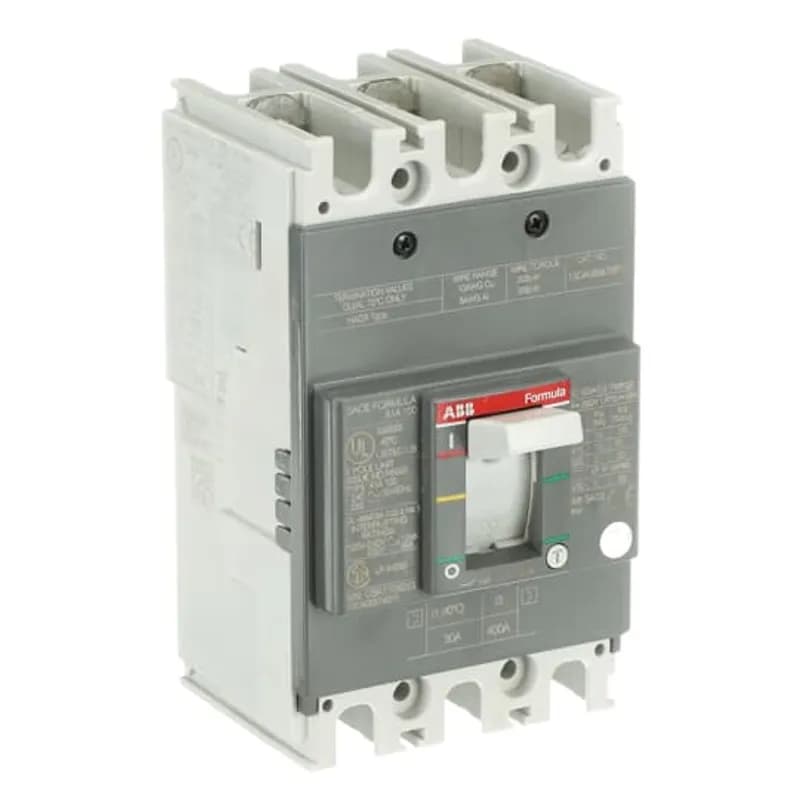

- 100A rated current, 3-pole thermal-magnetic MCCB
- UL certified with 10kA (Icu) and 25kA (Ics) short-circuit ratings
- Adjustable trip settings from 60-600A
- Front terminals for easy wiring and installation
- Compatible with ABB Formula series accessories and 35mm DIN rail/panel mounting
- Compatible with ABB Formula series accessories and 35mm DIN rail mounting
Specifications
Connection Type | Front Terminals |
Current Rating | 60-600 A |
Mounting Type | Fixed frame |
Poles | 3P |
Series | Formula |
Package Dimensions (L x W x H) | 4.35 IN x 5.37 IN x 4.88 IN |
Package Dimensions (L x W x H) | 11.049 cm x 13.6398 cm x 12.3952 cm |
Package Weight (Imperial) | 1.800 L |
Package Weight (Metric) | 0.817 kg |
