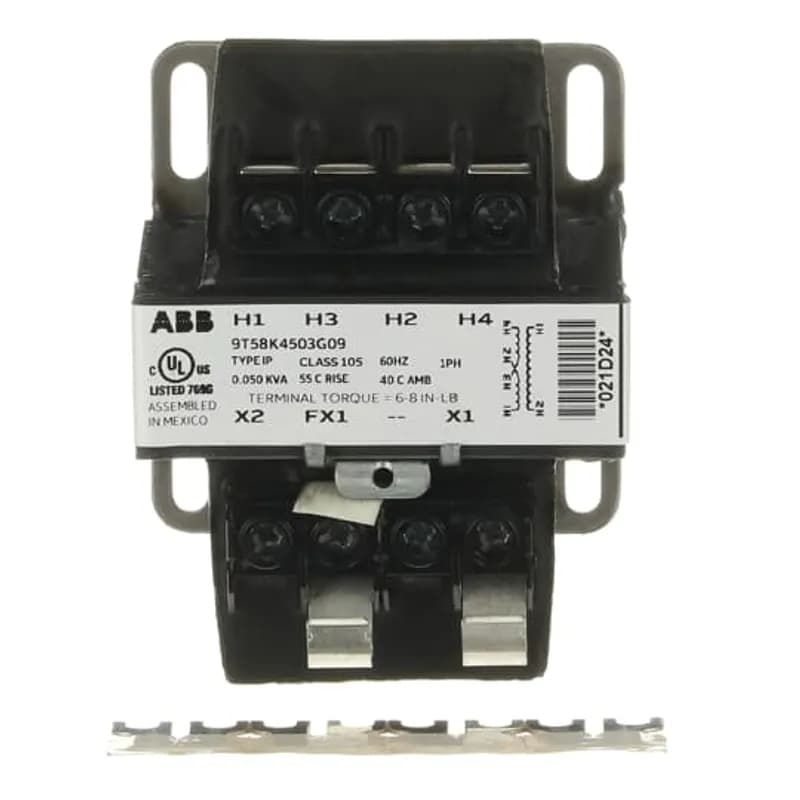

ABB - Electrification 9T58K4503G09 - ABB's Machine tool core and coil transformers are isolation transformers designed to provide a high degree of secondary voltage stability (regulation) during a brief period of overload condition (also referred to as “inrush current”). They are ideal for applications where power regulation and space optimization are critical. Machine tool core and coil transformers feature welded cores to deliver outstanding performance, long life, and quiet operation.
ABB - Electrification

9T58K4503G09

UPC: 783173154199

Contact for Pricing

Overview

ABB's Machine Tool Core and Coil Transformers (SKU: 9T58K4503G09) are precision-engineered isolation transformers designed to deliver exceptional secondary voltage stability during transient overload conditions, including inrush current spikes. Built for industrial environments where power regulation and space efficiency are critical, these transformers feature a welded core construction that ensures outstanding performance, extended operational life, and near-silent operation. Ideal for machine tool applications, they provide reliable voltage regulation to protect sensitive equipment from power fluctuations while optimizing installation footprint in compact spaces. The welded core design enhances durability and reduces magnetic losses, making these transformers a dependable choice for demanding manufacturing environments. With ABB's reputation for Electrification excellence, these transformers are engineered to meet the rigorous demands of modern industrial processes where consistent power quality is non-negotiable.
  • Welded core construction for superior durability and reduced magnetic losses
  • Exceptional secondary voltage stability during overload conditions (inrush current)
  • Compact design optimizes space in industrial installations
  • Long operational life with quiet, reliable performance
  • Ideal for machine tool applications requiring precise power regulation

Specifications

Frequency Rating
60 HZ
Height
2.68 in
Insulation
CLASSA
Phase
1
Primary Voltage
240x480 V
Secondary Voltage
24
Special Features
ABB's Machine tool core and coil transformers are isolation transformers designed to provide a high degree of secondary voltage stability (regulation) during a brief period of overload condition (also referred to as “inrush current”). They are ideal for applications where power regulation and space optimization are critical. Machine tool core and coil transformers feature welded cores to deliver outstanding performance, long life, and quiet operation.
Width
3.06 in
Package Dimensions (L x W x H)
6.5 IN x 4 IN x 5 IN
Package Dimensions (L x W x H)
16.51 cm x 10.16 cm x 12.7 cm
Package Weight (Imperial)
3.000 L
Package Weight (Metric)
1.361 kg
