Overview
- Engineered for high secondary voltage stability during inrush currents.
- Welded core construction for outstanding performance and quiet operation.
- UL and CSA recognized with 105°C insulation system and 55°C temperature rise.
- Includes primary fuse holders and secondary fuse clips for enhanced safety.
- Compact design for efficient integration into machine tool control panels.
Specifications
Frequency Rating | 60 HZ |
Height | 3.28 in |
Insulation | IS-12 |
Material | Welded core construction |
Material | Welded steel core and copper coil |
Phase | 1 |
Primary Voltage | 230x460 |
Secondary Voltage | 115 |
Series | Machine tool core and coil transformers |

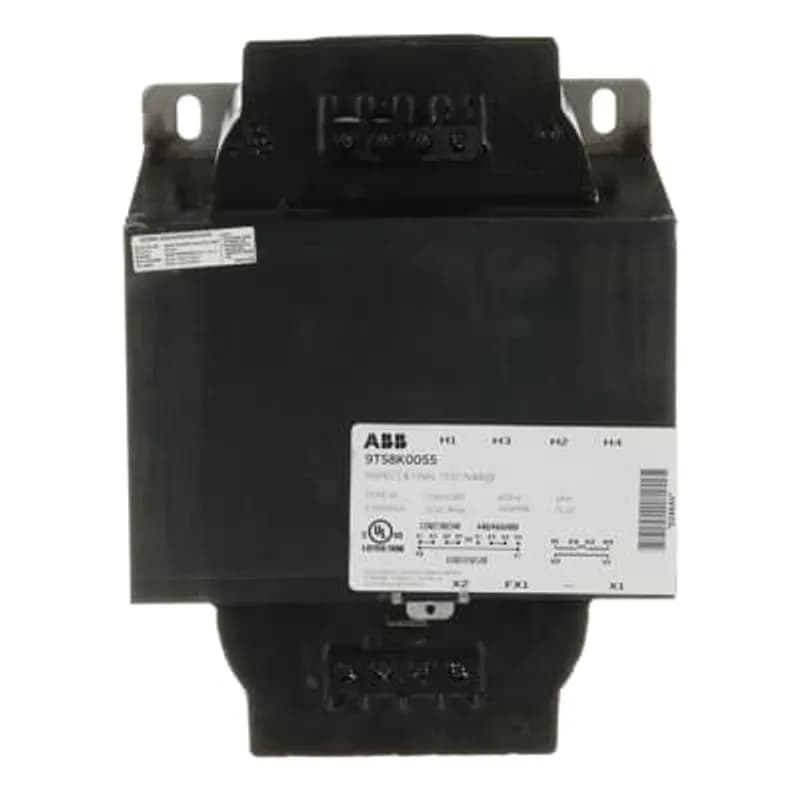

Special Features | ABB's Machine tool core and coil transformers are isolation transformers designed to provide a high degree of secondary voltage stability (regulation) during a brief period of overload condition (also referred to as “inrush current”). They are ideal for applications where power regulation and space optimization are critical. Machine tool core and coil transformers feature welded cores to deliver outstanding performance, long life, and quiet operation. |
Width | 3.81 in |
Package Dimensions (L x W x H) | 7.25 IN x 4.5 IN x 5.5 IN |
Package Dimensions (L x W x H) | 18.415 cm x 11.43 cm x 13.97 cm |
Package Weight (Imperial) | 6.000 L |
Package Weight (Metric) | 2.722 kg |
Frequently Asked Questions
What type of transformer is this product?
This product is an isolation transformer designed for machine tool core and coil applications.
What are the key features of this transformer?
It offers a high degree of secondary voltage stability and regulation during overload conditions, with welded cores for performance and quiet operation.
What material is the coil made of?
The coil material is copper (CU).
What is the frequency rating?
The frequency rating is 60 Hz.
What is the insulation system class?
The insulation system class is 180 degrees Celsius.
What is the operating temperature range?
The temperature rise is 150 degrees Celsius, and the ambient temperature is 40 degrees Celsius.
Does this transformer have an electrical shield?
Yes, it features an electrical shield.
