ABB - Electrification 9T21S1250 - ABB's Servicenter™ Single-Phase Integral Transformer and load center system comes equipped with an encapsulated transformer wired into rightly sized circuit breakers for both the primary and secondary transformer windings. Qualified to the seismic requirements of IEEE-693-2005 and IBC-2021 and CBC 2022. Accessible mounting flanges with keyhole slotted mounting holes to make installation easy. NEMA 3R painted enclosure. Clear, comprehensive documentation and labeling. The Servicenter system is UL Listed and is suitable for use service equipment with a 10 kAIC short circuit current rating. The load center portion of this system is ready to accept the ABB THQL plug-on circuit breakers.
ABB - Electrification

9T21S1250

UPC: 783173030578

Contact for Pricing

Overview

The ABB Servicenter™ Single-Phase Integral Transformer and Load Center System (SKU: 9T21S1250) is a robust, all-in-one solution designed for demanding industrial applications. This integrated unit features an encapsulated transformer pre-wired with appropriately sized circuit breakers for both primary and secondary windings, ensuring seamless power management and protection. Engineered for reliability, the Servicenter system meets stringent seismic qualification requirements, including IEEE-693-2005, IBC-2021, and CBC 2022, making it suitable for earthquake-prone regions. Installation is simplified through accessible mounting flanges with convenient keyhole slotted mounting holes. The durable NEMA 3R painted enclosure provides excellent protection against environmental elements, suitable for outdoor or exposed installations. Key benefits include: * **Integrated Design:** Combines transformer and load center for space and installation efficiency. * **Enhanced Protection:** Features correctly sized primary and secondary circuit breakers. * **Seismic Compliance:** Qualified to IEEE-693-2005, IBC-2021, and CBC 2022 standards. * **Easy Installation:** Accessible mounting flanges with keyhole slots. * **Durable Enclosure:** NEMA 3R rated for outdoor use.
  • Integrated single-phase transformer and load center system
  • Encapsulated transformer with pre-wired primary/secondary circuit breakers
  • Seismic qualified to IEEE-693-2005, IBC-2021, CBC 2022
  • NEMA 3R painted enclosure for outdoor/exposed installations
  • UL Listed service equipment with 10 kAIC short circuit current rating

Specifications

Enclosure
NEMA 3R
Frequency Rating
60 HZ
Frequency Rating, Maximum
60 Hz
Frequency Rating, Minimum
60 Hz
Input Voltage
480 VAC
Insulation
IS-12
Output Voltage
120/240
Phase
1
Standard
No
Temperature Rating
40 °C
Temperature Rating, Maximum
104 F
Temperature Rating, Maximum
40 C
Temperature Rating, Minimum
104 F
Temperature Rating, Minimum
40 C
Wattage
25 KVA
Package Dimensions (L x W x H)
16 IN x 16.75 IN x 44.75 IN
Package Dimensions (L x W x H)
40.64 cm x 42.545 cm x 113.665 cm
Package Weight (Imperial)
388.000 L
Package Weight (Metric)
175.997 kg

Similar Products

9T21S1050

Wattage: 5 KVA

KVA Rating: 5 KVA

Color: Painted (color not specified)

9T21S1150

Wattage: 15 KVA

KVA Rating: 15 KVA

9T21S1070

Wattage: 7.5 KVA

Color: Poly Blue

Material: Painted Metal

9T21S1100

Wattage: 10 KVA

KVA Rating: 10 KVA

NEMA Rating: NEMA 3R

9T21B1253G02

Frequency Rating: 50 HZ

Height: 14.5 in

Input Voltage: 200/220/380/400/416/460/575

9T21B1212G02

Frequency Rating: 50 HZ

Height: 14.5 in

Wattage: 5 KVA

You May Also Be Interested In

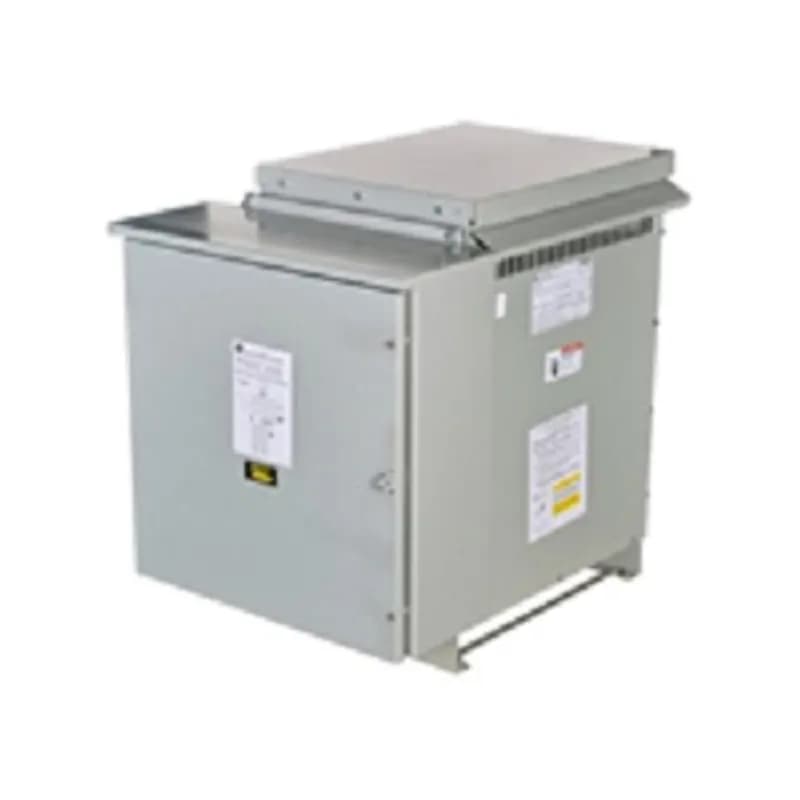

ABB's Three Phase Servicenter: Integral Transformer and Distribution Panel is a convenient, economical way to meet your industrial and temporary power requirements. This unit incorporates a Type QL transformer (three phase), a primary main circuit breaker, a secondary main circuit breaker, and a load center style breaker panel. Everything is factory installed, saving the contractor time and money. This Servicenter can be used wherever 240 Volt, 480 Volt or 600 Volt primary is available and 208Y/120 Volt secondary circuits are required.
