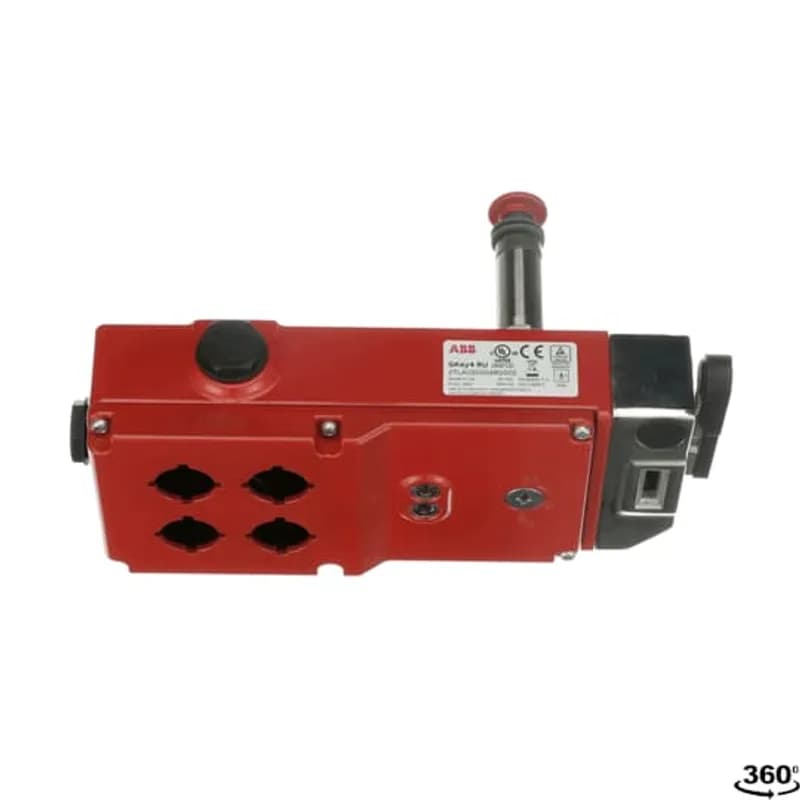

ABB - Electrification 2TLA050304R0002 - Safety lock GKey with 4 positions for pilot devices, die-cast housing, escape release and manual unlock function. Can be mounted on hinged doors and on sliding doors, both on the left and on the right. Delivered with mechanical tongue actuator, RFID actuator, entry cover and screw bit.
ABB - Electrification

2TLA050304R0002

Documents & Media
Specification Sheet

Contact for Pricing

Overview

Enhance your industrial safety with the ABB GKey Safety Lock (SKU: 2TLA050304R0002). This robust, die-cast housing lock is engineered for superior performance and versatility in demanding environments. Designed with a 4-position capability for pilot devices, it offers flexible integration into your existing safety systems. The GKey features an integrated escape release function, allowing for safe egress even when the system is locked, and a manual unlock function for convenient maintenance and operational adjustments. Its adaptable mounting design accommodates both hinged and sliding doors, with universal left and right-side installation options, ensuring seamless integration into various machine guarding configurations. The package includes essential components for immediate deployment: a mechanical tongue actuator for traditional interlocking, an RFID actuator for advanced access control and safety status monitoring, an entry cover for protection, and a specialized screw bit for secure installation. Trust ABB Electrification for reliable safety solutions that protect personnel and optimize operational efficiency. This safety lock is ideal for applications requiring high levels of machine safety and access control.
  • Robust die-cast housing for industrial durability
  • 4-position capability for flexible pilot device integration
  • Integrated escape release for safe personnel egress
  • Manual unlock function for maintenance and operation
  • Versatile mounting on hinged and sliding doors (left/right)

Specifications

Material
Die-cast
Mounting Type
Hinged doors and sliding doors (left and right)
Poles
4 positions
Series
ABB GKey Safety Lock
Package Dimensions (L x W x H)
14.96 IN x 6.69 IN x 5.51 IN
Package Dimensions (L x W x H)
37.9984 cm x 16.9926 cm x 13.9954 cm
Package Weight (Imperial)
4.530 L
Package Weight (Metric)
2.055 kg

Similar Products

2TLA050104R0100

Material: Plastic

Poles: 2NC + 1NO

Connection Type: 1/2NPT Conduit Entry

2TLA050104R0106

Material: Plastic

Poles: 2NC + 1NO

Connection Type: 1/2NPT Conduit Entry

2TLA050204R1020

Material: Stainless Steel

Poles: 4NC + 2NO

Connection Type: 1/2NPT

2TLA050204R1030

2TLA050310R0032

2TLA050003R0025

Material: Stainless Steel 316

Poles: 2NC

Connection Type: Pre-wired with 3 m cable

You May Also Be Interested In

Front slide handle for GKey4. Can be mounted on hinged doors and on sliding doors, both on the left and on the right. Includes a mounting plate for GKey4.

2TLA050310R0032

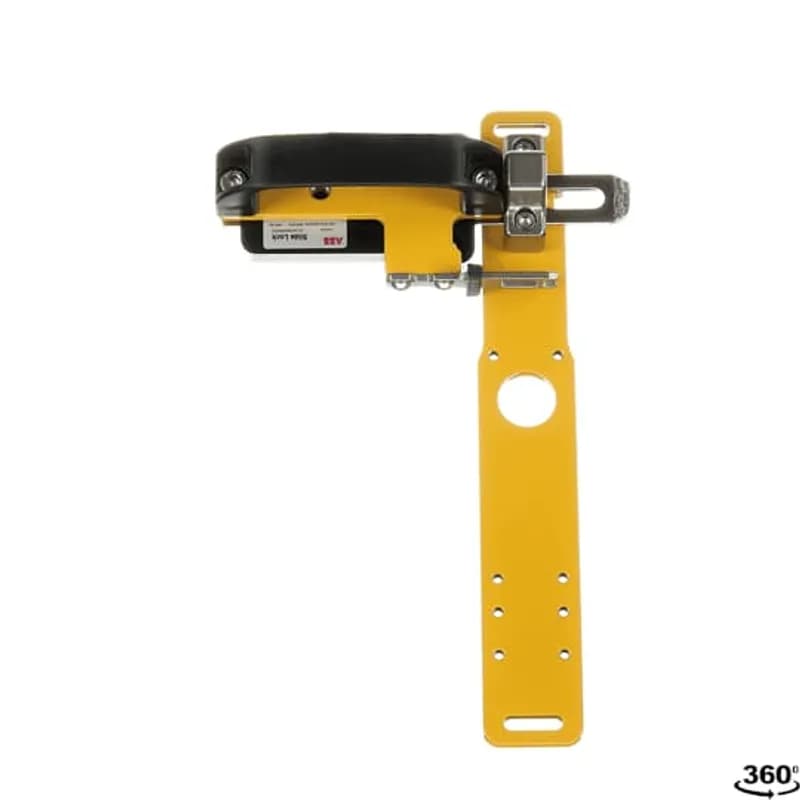

Slide lock for MKey8 and MKey9, left. Rugged metal construction that withstands shearing forces of up to 10000N (1000kg) on large hinged doors. MKey not included.

2TLA050040R0500

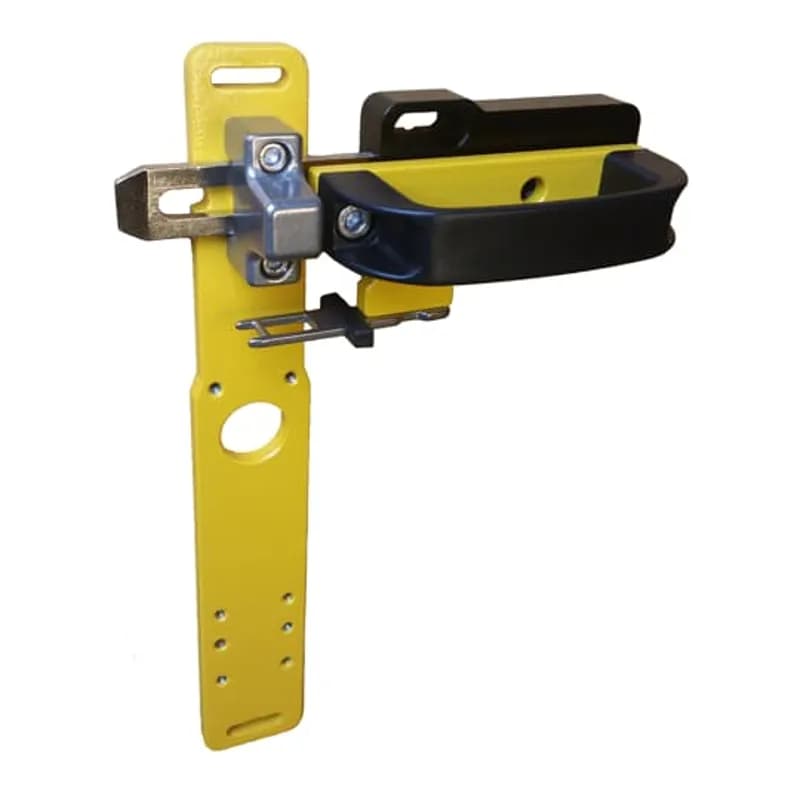

Slide lock for MKey8 and MKey9, right. Rugged metal construction that withstands shearing forces of up to 10000N (1000kg) on large hinged doors. Mkey not included.
