ABB - Electrification 2TLA050202R7135 - Rope Pull Emergency Stop, die cast housing, for explosion proof environment, 2NC, for spans up to 60m (1 rope pull) or 80m (using 2 rope pulls), pre-wired with 3m cable, with built in emergency stop
ABB - Electrification

2TLA050202R7135

UPC: 804325837842

Documents & Media
Specification Sheet

Contact for Pricing

Overview

Enhance safety in hazardous environments with the ABB Electrification Rope Pull Emergency Stop (SKU: 2TLA050202R7135). Engineered for demanding industrial applications, this robust device features a durable die-cast housing, ensuring reliable operation even in explosion-proof zones. Designed for critical safety functions, it provides immediate emergency stopping capabilities across extensive operational areas. The unit is equipped with 2 Normally Closed (2NC) contacts, offering a standard and dependable safety circuit configuration. Its versatile design supports single rope pull configurations for spans up to 60 meters, and can be extended to 80 meters when utilizing two rope pulls, providing flexible coverage for large machinery or production lines. For simplified installation and immediate deployment, the emergency stop comes pre-wired with a 3-meter cable. This integrated solution minimizes setup time and ensures a secure connection. The built-in emergency stop functionality is a core feature, allowing for rapid manual activation in critical situations. Ideal for industries such as chemical processing, oil and gas, mining, and any sector where flammable or explosive atmospheres are present, this ABB rope pull emergency stop is a vital component for maintaining operational safety and compliance. Its construction adheres to stringent industrial standards, offering peace of mind and dependable performance. The die-cast material provides superior resistance to corrosion and mechanical impact, further solidifying its suitability for harsh conditions. Invest in the ABB 2TLA050202R7135 for a comprehensive and reliable emergency stop solution that prioritizes personnel safety and operational integrity in the most challenging environments.
  • Explosion-proof die-cast housing for hazardous environments
  • 2 Normally Closed (2NC) safety contacts
  • Supports spans up to 60m (1 rope pull) or 80m (2 rope pulls)
  • Pre-wired with 3m cable for easy installation
  • Integrated emergency stop functionality for immediate shutdown

Specifications

Connection Type
pre-wired with 3m cable
Material
die cast
Poles
2NC
Package Dimensions (L x W x H)
1 IN x 1 IN x 1 IN
Package Dimensions (L x W x H)
2.54 cm x 2.54 cm x 2.54 cm
Package Weight (Imperial)
2.138 L
Package Weight (Metric)
0.970 kg

Similar Products

2TLA050202R1130

Material: Die-cast metal

Poles: 2NC + 2NO

Connection Type: 1/2 NPT threaded entry

2TLA050204R7135

Poles: 2NC + 2NO

Mounting Type: Left Install

Connection Type: Pre-wired with 3 m cable

2TLA050206R7135

Poles: 2NC + 2NO

Connection Type: Pre-wired with 3 m cable

Mounting Type: Rope Pull Installation to the Right

2TLA050208R7135

Poles: 2NC + 2NO

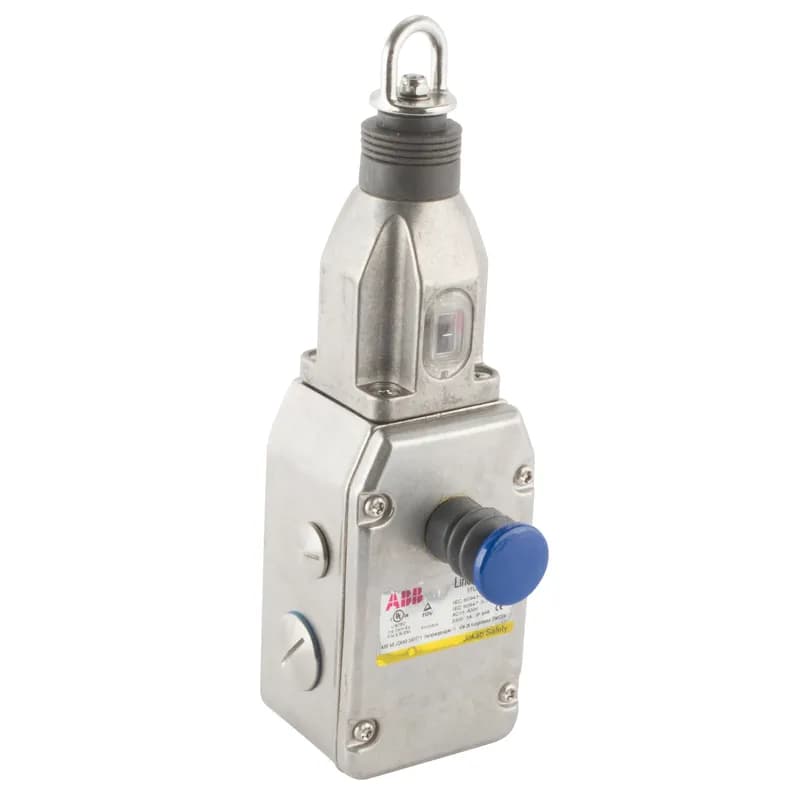

2TLA050202R1120

Material: Stainless Steel

Poles: 2NC + 2NO

Connection Type: 1/2NPT entry

2TLA050202R1030

Poles: 2NC+2NO

Connection Type: 1/2NPT entry

You May Also Be Interested In

Rope Pull Emergency Stop, die cast housing , for explosion proof environments, 2NC + 2NO, dual sided, for spans up to 200m (1 rope pull) or mulitple rope pulls with 125m between each rope pull, pre-wired with 3 m cable, with built in emergency stop

2TLA050208R7135

Rope Pull Emergency Stop, die cast housing, for explosion proof environment, 2NC + 2NO, for rope pull installation to the left, for spans up to 100m (1 rope pull) or 125m (2 rope pulls), pre-wired with 3 m cable, with built in emergency stop.

2TLA050204R7135

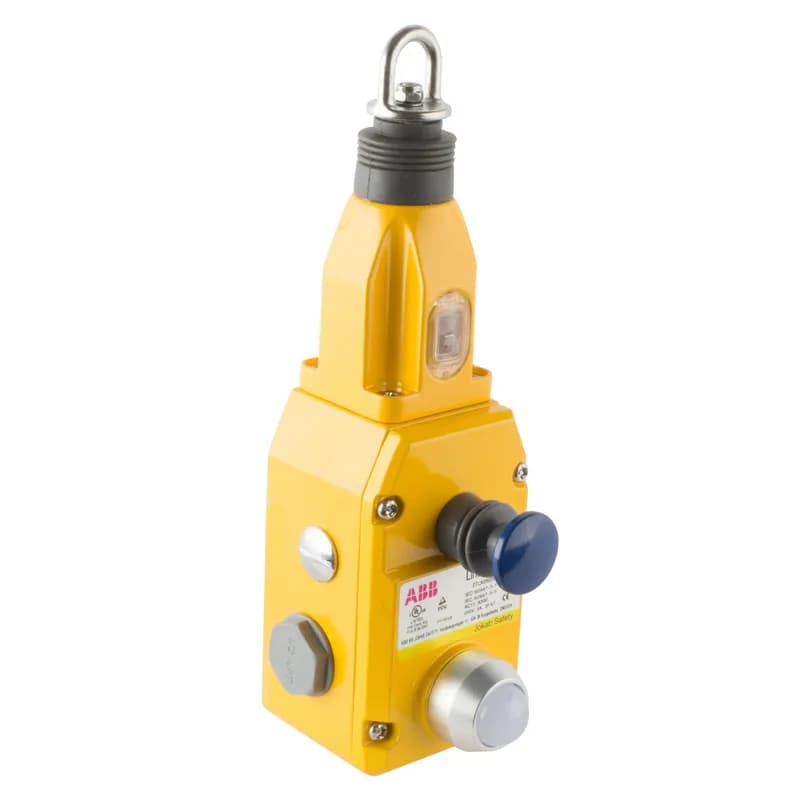

Rope Pull Emergency Stop, die cast housing , with 1/2NPT entry, 2NC + 2NO for spans up to 60m (1 rope pull) or 80m (using 2 rope pulls), with built in emergency stop

2TLA050202R1130

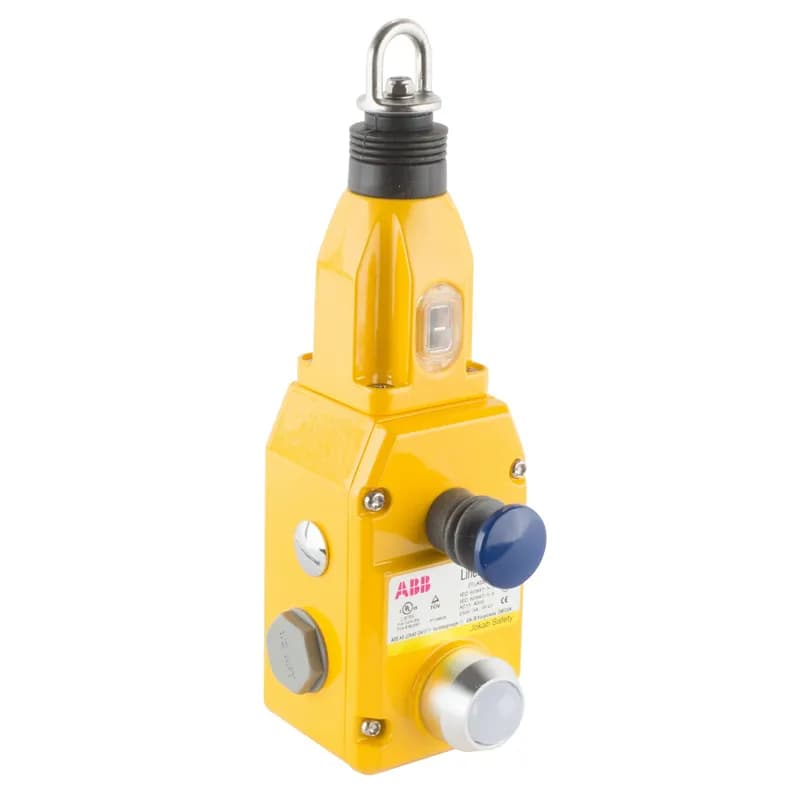

Rope Pull Emergency Stop, die cast housing , with 1/2NPT entry, 2NC + 2NO for spans up to 60m (1 rope pull) or 80m (using 2 rope pulls), with built in emergency stop and 24VDC LED

2TLA050202R1332

Rope Pull Emergency Stop, die cast housing , with 1/2NPT entry, 2NC + 2NO for spans up to 60m (1 rope pull) or 80m (using 2 rope pulls), with built in emergency stop and 110VAC LED

2TLA050202R1333

Frequently Asked Questions

What is the operating voltage range?

The device operates on 24V DC with a range of 20-28V DC.

What is the maximum operating temperature?

The maximum operating temperature is 60°C.

What is the minimum operating temperature?

The minimum operating temperature is -20°C.

What are the dimensions of the product?

The product dimensions are 120 mm in length, 80 mm in width, and 60 mm in height.

What are the installation requirements?

Installation requires a secure mounting surface and proper electrical connections.

What is the product's protection class?

The product has a protection class of IP20.
