IME VENTED PAGODA TOP 600X800

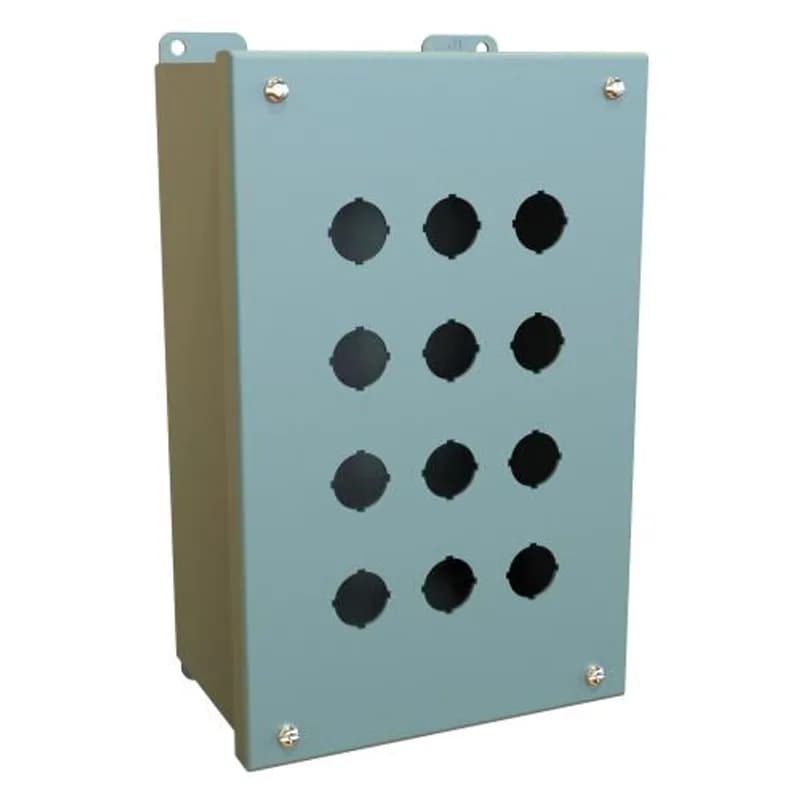

Pushbutton Encl - 12 PB x 22.5mm - Steel/Gray

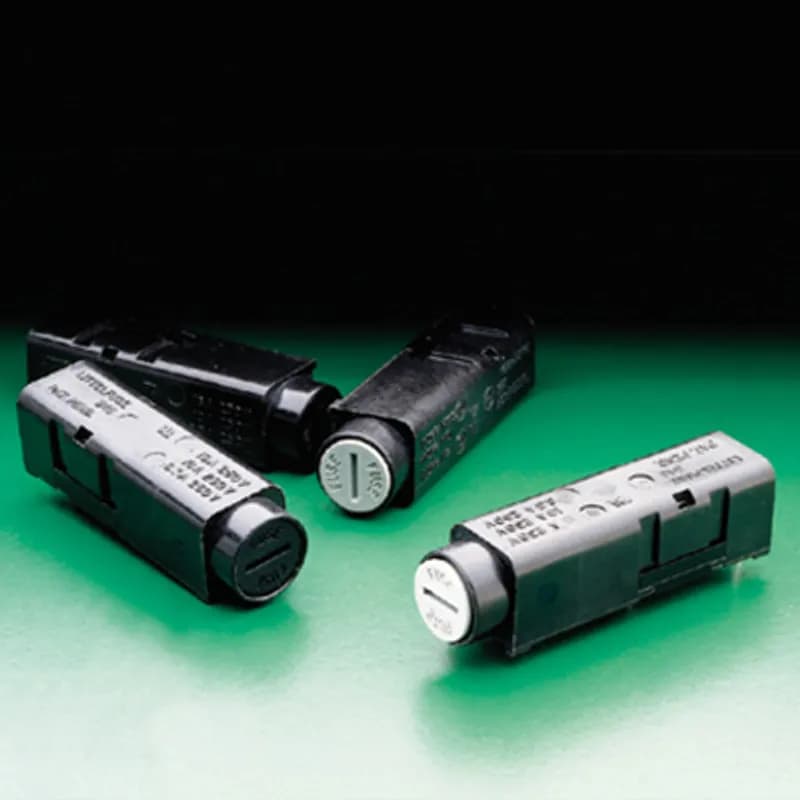

PANELMOUNT SHKSAFE FSEHLDR 3AG FUSE LF8A. Designed to eliminate the possibility of electrical shock, as defined in IEC standards 65 and 257. Shock-Safe fuseholders feature a low profile body, fingergrip knob and anti-tease feature that eliminates circuit interruptionwhen knob is accidentally depressed.

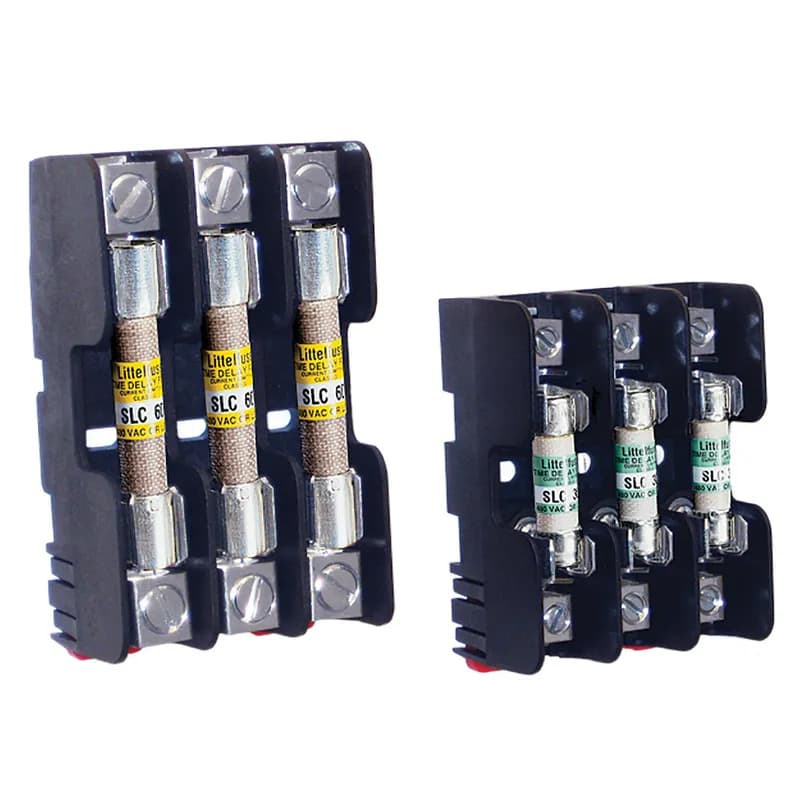

All Littelfuse Class G fuse blocks offer snap-to-release DIN rail mounting and universal mounting holes. Class G fuse blocks are designed for use with time-delay current limiting Class G fuses.

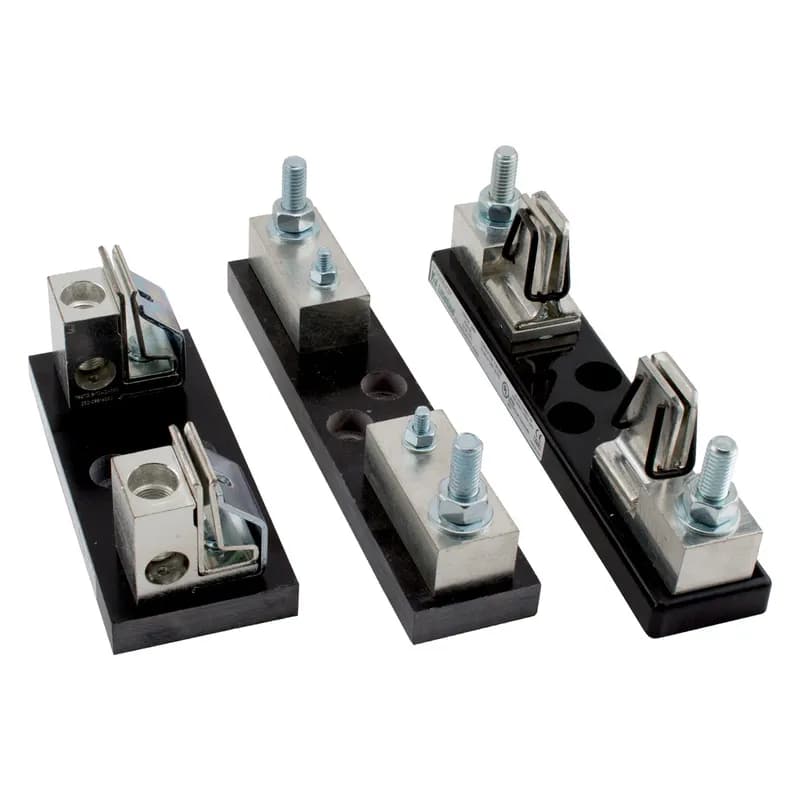

The LFJ1000 solar fuse block is specifically designed for the Littelfuse SPFJ 1000 Vdc Solar Fuse. It meets UL electrical characteristic requirements and is available in multiple amperages.

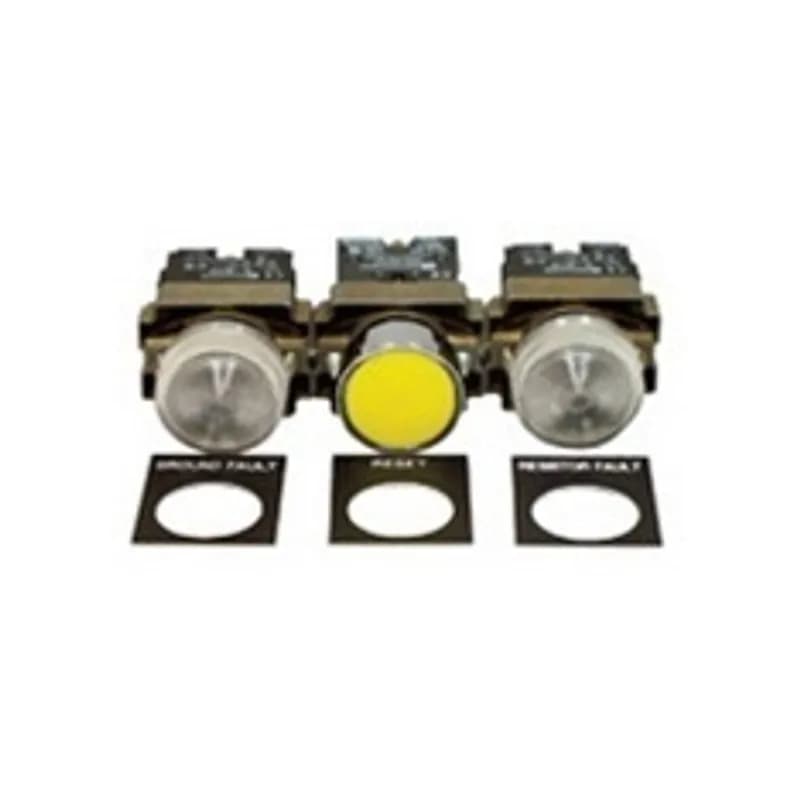

Remote indication and reset for the SE-105 and SE-107. NEMA 4 and NEMA 13 rating.

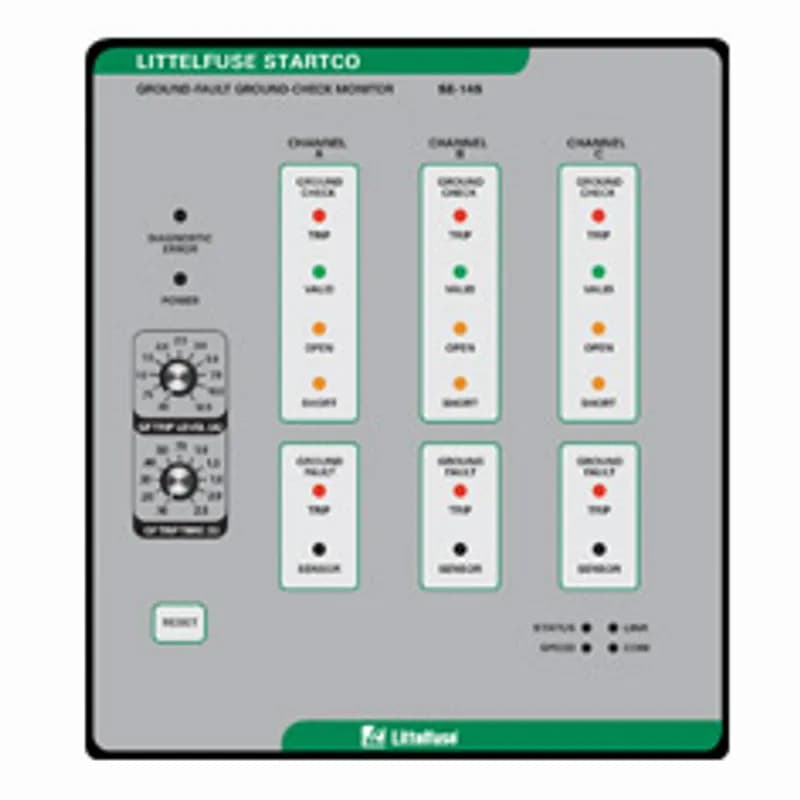

3 Channel GF-GC Monitor. The SE-145 is a three-channel, microprocessor-based, combination ground-wire monitor and ground-fault relay for resistance-grounded or solidly grounded systems. It continuously monitors the integrity of the ground wire to protect portable equipment from hazardous voltages caused by ground faults. The SE-145 is designed for use on three-way splitter box applications. COMPUTER TO RELAY CONNECTION: Connect the SE-145 to the network using a standard Ethernet patch cable. Use of a crossover cable to connect the SE-145 directly to the computer running SE-MON-GFGC is not recommended. A typical router will assign an IP address to all connected computers that are using DHCP. The SE-145 does not support the use of DHCP. If the SE-145 is being set-up for first time, it is recommended to only have one SE-145 connected to the network to prevent communication errors.

SE-325D is a neutral-grounding resistor monitor with a supply voltage of 120 ac-dc and a ground-fault trip level of 0.5–4.0 A.

Load Sharer. 415/480 VAC 5A. The T4400 is designed to control a generator operating in parallel with the grid, or a generator operating in parallel with other generators (which are also controlled by T4400 units). The T4400 includes built-in frequency control and an optimized regulation scheme. These two features provide near perfect stability and compensates for any drift within the speed controller. A soft load/unload facility is also included.

50-W ground-check termination assembly with convenient mounting holes and screw terminals.

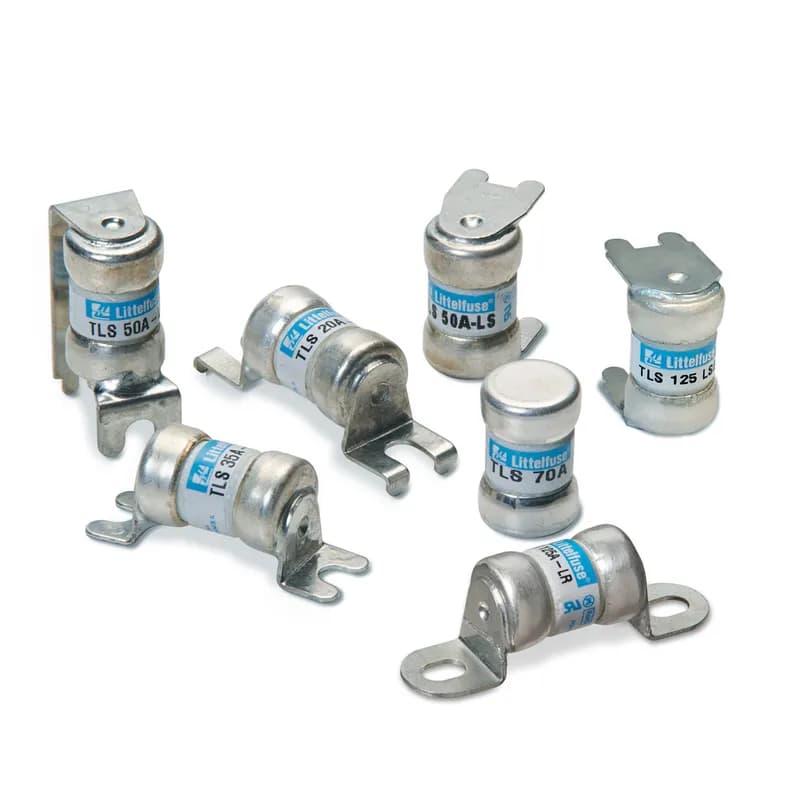

TLS030LB is a Telecommunications fuse with an ampere rating of 30.

TLS001LB is a Telecommunications fuse with an ampere rating of 1.
