Combine high performance with compact dimensions: - Connect conductors up to 50 mm² (CB certified) 0 AWG in just 16 mm 0.630 in spacing, - Perfectly adapted to solar applications: 1250 V DC (1000 V AC) IEC and 1000 V UL, - Closed terminal block: no end section needed, optmized rigidity.

- Recommended for energy markets and highly demanding applications requiring that only one conductor be connected per clamp, - These blocks offer a high density connecting capacity (up to 3 connections) in a low profile and just 6 mm 0.236 in spacing.

- With the same profile as the ZS10-ST..., the feed-through ZS10-R1 allows you to fully implement the electrical drawing of your CT or PT circuits, - Fully compatible with the ZS10-ST... accessories.

- High density wiring (one potential distribution on 4 independent screw clamps) in a very low profile and just 6 mm 0.236 in spacing, - Recommended for energy markets and highly demanding applications requiring that only one conductor be connected per clamp.

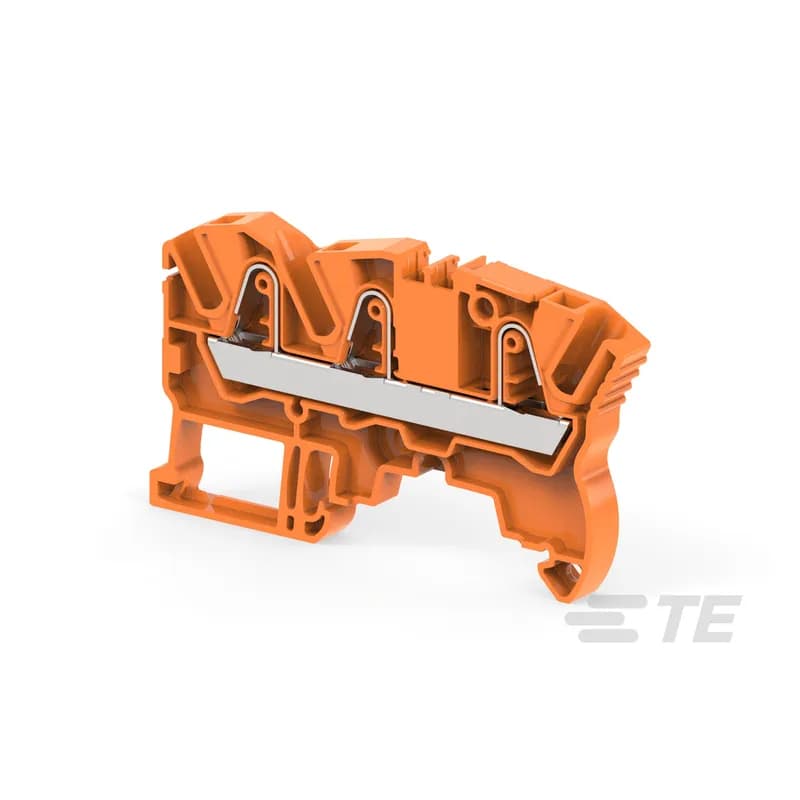

Find all the features of the ZK4 terminal block with the added option of distributing or branching 3 conductors.

- Perfectly adapted to solar applications : 1500V DC (1000V AC) IEC and 1000V UL, - UL Certified for aluminum cables use - Closed terminal block: no end section needed, optimized rigidity, - Ease your voltage monitoring or distribution with the 2 built-in derivations, - Use of jumper bars requires the user to cut-out the partition.

- Find all the features of the ZK10 terminal block with the added option of distributing or branching 3 conductors, - ZK10-3P is perfectly adapted to solar applications: 1250 V DC (1000 V AC) IEC, 1000 V UL.

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

Combine high performance with compact dimensions in just 5.2 mm 0.205 in spacing: - 500 V IEC 300 V UL, - 1 jumper channel and a large input and output marker zone on each deck.

Specially designed for high voltage utility scale solar power plants: - Rated voltage of 1500 V DC IEC and 1000 V DC UL, - Pre-mounted end section with light grey color specific to this application, - Improved design with ribs to increase creepage distance, - Compact solution only 2 mm thicker than normal product, - 3 connections configuration for easy grouping: 2 inputs / 1 output or 1 input / 2 outputs, - No available jumpers for ZK16-PV and ZK16-3P-PV (14 mm spacing).

Find all the features of the ZK2.5 terminal block with the added option of distributing or branching 3 conductors.

Combine high performance with compact dimensions: - 500V IEC 300 V UL, - 2 feed through circuits and 1 ground circuit in just 5.2 mm 0.205 in spacing, - 1 jumper channel and a large input and output marker zone on each deck, - designed for easy wiring.
