1 HoleStandard BarrelAluminum Compression Lug4 AWG -3/8 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

Use the dual-rated NSI TS1/0-2 Mechanical Lug Connector with either aluminum or copper conductors when connecting to threaded or slip-fit transformers. This versatile and reusable set-screw connector is made from high-strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. The copper stud is 3" long, 3/8" in diameter and tin plated – providing low-contact resistance for connection to the transformer. Two conductor ports fit copper or aluminum wire in the range of 1/0 to 4 AWG. NSI mechanical lug connectors meet or exceed ANSI C119.4 Class A, have a temperature rating of 90 °C and a maximum voltage of 600V. Stock products you can rely on—stock NSI.

Use the NSI TGE-250 Two-Way Basket Ground Clamp to ground electrical connections in distribution/pole transformers. This clamp is cast from high conductivity copper alloy and comes with cast bronze eyebolts, both of which are high strength and guarantee durable performance when grounding transformers in harsh environments. Strong stainless-steel nuts and lockwashers are standard on all two-way basket ground clamps. TGE series ground clamps may be tightened to the transformer by using a wrench on the body. Two-way basket ground clamps are available with a tin plate by adding suffix ‘TN’ for additional corrosion resistance in the field. Use the TGE-250 when running ground wire in the range of 6 SOL to 250 MCM. Stock products you can rely on—stock NSI.

Use the NSI TGE-2/0TN Two-Way Basket Ground Clamp to ground electrical connections in distribution/pole transformers. This clamp is cast from high conductivity copper alloy and comes with cast bronze eyebolts, both of which are high strength and guarantee durable performance when grounding transformers in harsh environments. Strong stainless-steel nuts and lockwashers are standard on all two-way basket ground clamps. TGE series ground clamps may be tightened to the transformer by using a wrench on the body. Two-way basket ground clamps are available with a tin plate by adding suffix ‘TN’ for additional corrosion resistance in the field. Use the TGE-2/0TN when running ground wire in the range of 8 SOL to 2/0 STR. Stock products you can rely on—stock NSI.

Use the NSI TGE-1 Two-Way Basket Ground Clamp to ground electrical connections in distribution/pole transformers. This clamp is cast from high conductivity copper alloy and comes with cast bronze eyebolts, both of which are high strength and guarantee durable performance when grounding transformers in harsh environments. Strong stainless-steel nuts and lockwashers are standard on all two-way basket ground clamps. TGE series ground clamps may be tightened to the transformer by using a wrench on the body. Two-way basket ground clamps are available with a tin plate by adding suffix ‘TN’ for additional corrosion resistance in the field. Use the TGE-1 when running ground wire in the range of 10 SOL to 1 STR. Stock products you can rely on—stock NSI.

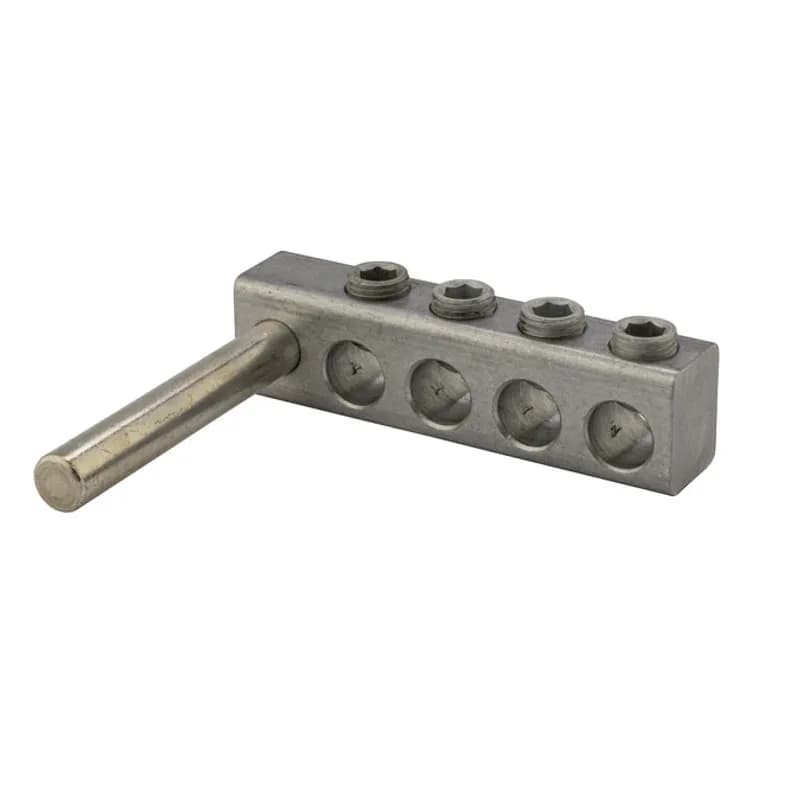

4 Port Aluminum Dual Rated Transformer Stud Connector 250 MCM -6 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

Long Barrel TinnedCopperSplice8 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

3 Port Aluminum Dual Rated Transformer Stud Connector 250 MCM -6 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

4 Port Heavy Duty Dual Rated Transformer Lug 600 MCM - 2 AWG Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

3 Port Aluminum Dual Rated Transformer Lug 350 MCM - 6 AWG with 2 Mounting Holes Aluminum Dual Rated Transformer Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600 Volts. Temperature Rating 90 degrees C.

The NSI PG12C-8 50-Piece Pack of Grounding Pigtail Combos offers a simple solution for adding a ground wire and screw into your electrical installation. Each pigtail combo includes a solid 8-inch green 12 AWG solid wire and a green grounding screw of the combination screw terminal type. Comes pre-assembled to save you time on every installation. Stock products you can rely on—stock NSI.

3 Port Aluminum Dual Rated Transformer Lug 350 MCM - 6 AWG with 4 Mounting Holes Aluminum Dual Rated Transformer Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600 Volts. Temperature Rating 90 degrees C.
