This wall-mountable or free-standing modular rack system prominently displays Littelfuse glass and automotive fuses. Additional sections can be quickly snapped on for a larger product selection. Each rack features a cross reference guide to help customers locate the proper replacement fuse.

LA50 VERY FAST-ACT SEMICOND FUSE QS600-4. In response to new equipment requirements, Littelfuse LA50QS series fuses were developed to improve the overall performance of semiconductor fuses. The LA50QS provides the best protection features including lower I2t, longer life when subjected to cyclic loading and lower watts loss. LA50QS is today’s choice for the protection of dynamic solid state equipment. Features: Lowest I2t for greatest protection of semiconductor circuits. Low watts loss for cooler operation. Superior cycling ability gives an equipment design advantage. State-of-the-art protection for 500 volt equipment. Ultra compact sizes allow down-sizing of existing equipment. Applications: Protection of 500 volts or less solid state equipment such as motor drives, UPS, inverters, etc.

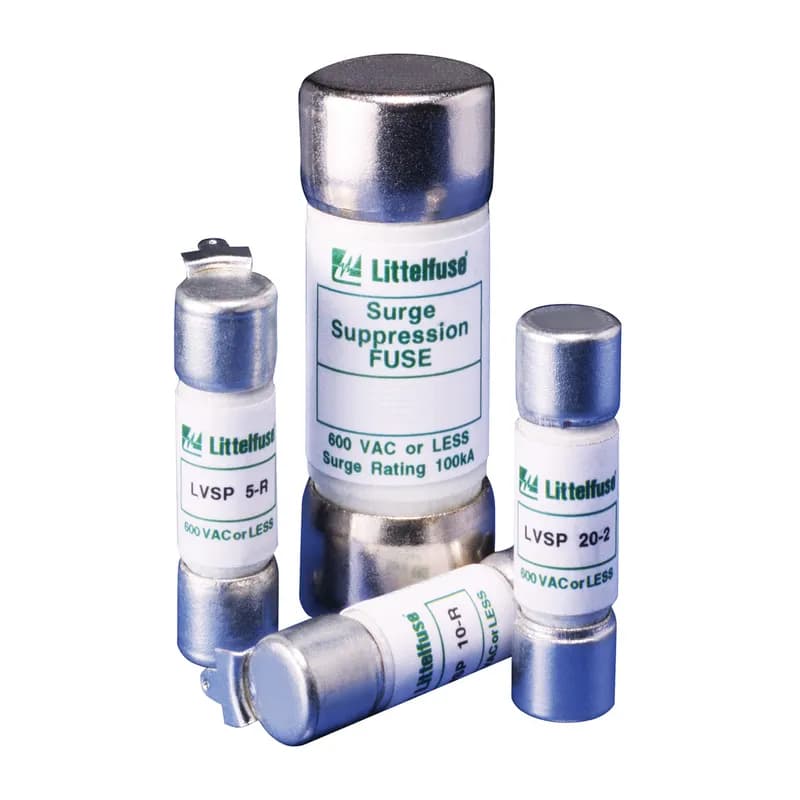

The Littelfuse Varistor Surge Protection (LVSP) Fuses are intended for the protection of TVSS products. The LVSP Series has been designed to survive the 8x20µs lightning surges described in various Standards(UL1449, IEC61000-4-5 & IEEE C62.41) without opening. This allows the TVSS to perform the necessary suppression. The LVSP Series is not rated for continuous current and the ratings are to specific 8x20µs surge capability. The LVSP Series can be used to facilitate TVSS module compliance to UL1449 in permanently connected applications (abnormal overvoltage, unlimited current conditions)

The L60S and KLC series is a traditional North American style high-speed fuse for protection of power semiconductor devices that are rated up to 600 V ac. These fuse series are typically used for replacement purposes only. For new designs L70QS series is recommended.

278S VERY FAST ACTING MICRO FUSE 3A. Developed originally for the U.S. Space Program, MICRO™ fuse provides reliability in a compact design. The MICRO™ fuse is available in plug–in or radial lead styles and a complete range of ampere ratings from 1/500 to 5A to suit a wide variety of design needs. Features: Military grade available. High breaking capacity. Clear cover option to view fuse element status. Available from very low ampere of 2mA to 5A Plug-in with short or long leads option.

3AG SCREW TERMINALS 12 POLE. Screw Terminal Laminated Base Terminal for 3AG/AB Fuses. Rated at 15 Amp. 600 V AC/DC.

PANEL MOUNT SHOCK-SAFE FUSEHOLDER 601 A. Designed to eliminate electrical shock as defined by IEC standards 60065 and 60127, these panel-mount fuses holders offer a wide variety of options. This allows for inventory reduction and versatility. Anti-tease feature eliminates circuit interruption when knob is accidentally depressed Five fuse holder types for maximum flexibility. Two knob styles— screwdriver slot and fingergrip. Drip proof option available on screwdriver slot knob style. Two terminal choices depending on application.

FLM02.8 is a Midget fuse with an ampere rating of 2.8.

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.

Littelfuse's LA100P semiconductor protection fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. With ratings from 15-1000 amperes, a wide range of high voltage applications can be served. Features: Low l2t minimizes damage to protected components on short circuit. Controlled arc voltage reduces stress to circuit components during fuse clearing. Applications: Protection of UPS systems, AC/DC drives, reduced voltage motor starters and other 1000V or less semiconductor devices.

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.
