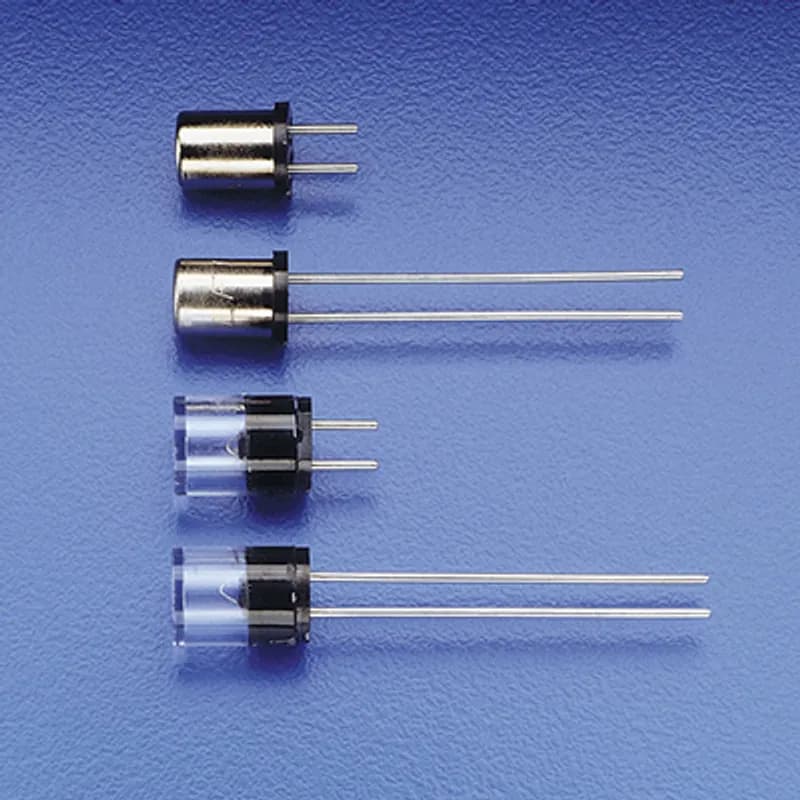

278S VERY FAST ACTING MICRO FUSE 3A. Developed originally for the U.S. Space Program, MICRO™ fuse provides reliability in a compact design. The MICRO™ fuse is available in plug–in or radial lead styles and a complete range of ampere ratings from 1/500 to 5A to suit a wide variety of design needs. Features: Military grade available. High breaking capacity. Clear cover option to view fuse element status. Available from very low ampere of 2mA to 5A Plug-in with short or long leads option.

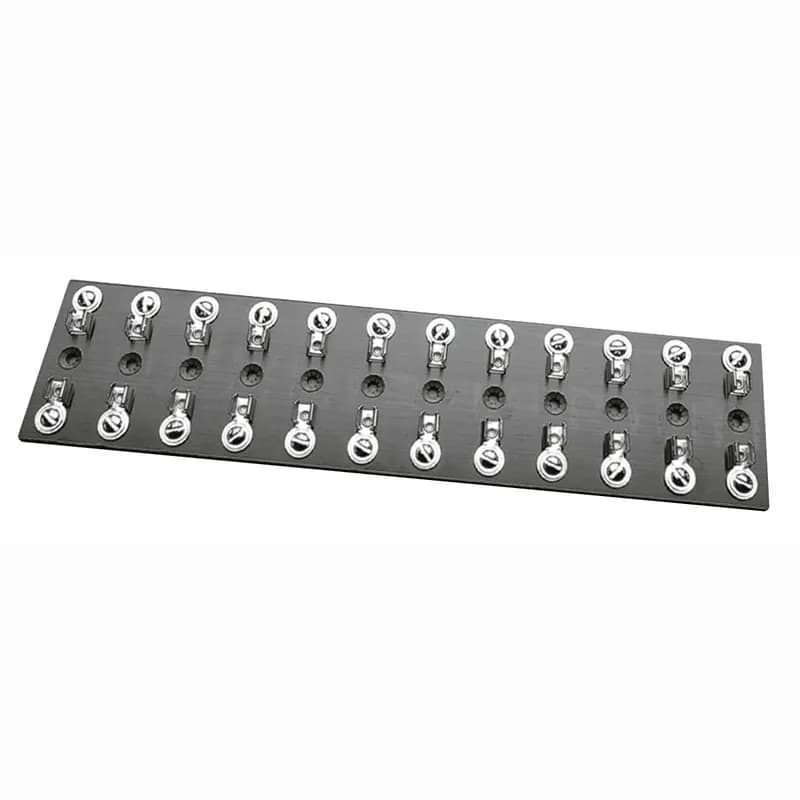

3AG SCREW TERMINALS 12 POLE. Screw Terminal Laminated Base Terminal for 3AG/AB Fuses. Rated at 15 Amp. 600 V AC/DC.

PANEL MOUNT SHOCK-SAFE FUSEHOLDER 601 A. Designed to eliminate electrical shock as defined by IEC standards 60065 and 60127, these panel-mount fuses holders offer a wide variety of options. This allows for inventory reduction and versatility. Anti-tease feature eliminates circuit interruption when knob is accidentally depressed Five fuse holder types for maximum flexibility. Two knob styles— screwdriver slot and fingergrip. Drip proof option available on screwdriver slot knob style. Two terminal choices depending on application.

FLM02.8 is a Midget fuse with an ampere rating of 2.8.

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.

Littelfuse's LA100P semiconductor protection fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. With ratings from 15-1000 amperes, a wide range of high voltage applications can be served. Features: Low l2t minimizes damage to protected components on short circuit. Controlled arc voltage reduces stress to circuit components during fuse clearing. Applications: Protection of UPS systems, AC/DC drives, reduced voltage motor starters and other 1000V or less semiconductor devices.

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.

VERY FAST-ACTI SEMICOND FUSE QS450-4K. Littelfuse LA70QS semiconductor fuses were developed to provide improved performance required by today’s new equipment. The LA70QS features lower I2t, improved cycling, and lower watts loss. It is the best choice for the protection of dynamic solid-state equipment. Features: Very low I2t improved protection of equipment. Superior cycling ability for long, reliable life on high cycling loading. Lower watts loss for cooler operation. 700 Volt AC/DC rating provides greater design versatility. Compact sizes allow downsizing of equipment. Applications: Protection of 700 volt or less solid state equipment such as motor drives, UPS, inverters, etc.

LA70 VERY FAST-ACT SEMICOND FUSE QS250-4. Littelfuse LA70QS semiconductor fuses were developed to provide improved performance required by today’s new equipment. The LA70QS features lower I2t, improved cycling, and lower watts loss. It is the best choice for the protection of dynamic solid-state equipment. Features: Very low I2t improved protection of equipment. Superior cycling ability for long, reliable life on high cycling loading. Lower watts loss for cooler operation. 700 Volt AC/DC rating provides greater design versatility. Compact sizes allow downsizing of equipment. Applications: Protection of 700 volt or less solid state equipment such as motor drives, UPS, inverters, etc.

LA70 VERY FAST-ACTI SEMICOND FUSE QS80-4. Littelfuse LA70QS semiconductor fuses were developed to provide improved performance required by today’s new equipment. The LA70QS features lower I2t, improved cycling, and lower watts loss. It is the best choice for the protection of dynamic solid-state equipment. Features: Very low I2t improved protection of equipment. Superior cycling ability for long, reliable life on high cycling loading. Lower watts loss for cooler operation. 700 Volt AC/DC rating provides greater design versatility. Compact sizes allow downsizing of equipment. Applications: Protection of 700 volt or less solid state equipment such as motor drives, UPS, inverters, etc.

FLQ003 is a Midget fuse with an ampere rating of 3.
