Overview

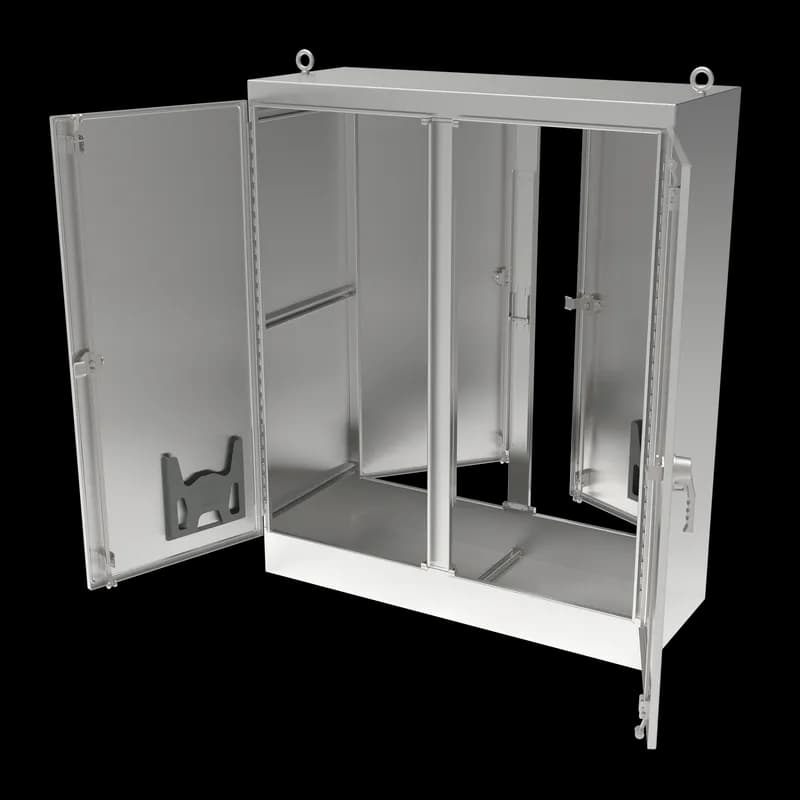

- Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by cover edges
- Hinged side of cover has provisions to allow direct flushing of hinge area
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- 97-degree door opening
- Door edges are sloped 20 degrees at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Three-point latching operated by PowerGlide Type 316L padlocking stainless steel handles
Specifications
Application | Controls and Drives;Corrosive Environments;Hygienic Environments |
Color | Unpainted |
Color | Brushed |
Conductive Panel | A72P72G |
Depth | 610 mm |
Depth | 24 |
Finish | Brushed #4 |
Height | 1,880 mm |
Height | 74 mm |
IP Rating | IP66 |
Material | Stainless Steel 304 |
Material | SS 304 |
Material | Stainless Steel;Stainless Steel 304 |
Modification Services | Yes |
Mounting Type | Freestand |
NEMA Rating | 4X Watertight, corrosion-resistant |
Nema Rating | Type 4X |
NEMA Rating | 4X |
Panel | A72P72 |
Product Family | WaterShed |
Protection Rating | NEMA Type 12 |
Series | WaterShed |
Size | 74.00x75.00x24.00 in |
Size | 74x75x24 |
Thickness | 51.40mm (2.024") |
Thickness | 2.78 mm |
Thickness | 12 ga |
Type | Stainless Steel Freestanding Industrial Enclosures |
Type Number | Type 3R |
Weight | 760 lb |
Width | 1,905 mm |
Width | 75 mm |
Package Dimensions (L x W x H) | 84 IN x 36 IN x 90.25 IN |
Package Dimensions (L x W x H) | 213.36 cm x 91.44 cm x 229.235 cm |
Package Weight (Imperial) | 760.000 L |
Package Weight (Metric) | 344.736 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
How to Install the WS747524SS Enclosure
This guide provides step-by-step instructions for safely installing the WS747524SS enclosure, ensuring proper handling and setup.
Estimated time: 1h
Tools needed:
Forklift, Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, 3000 lb-rated chain or strap
- Prepare the installation area
Clear the installation route of all obstructions and ensure that workers are at a safe distance, more than the overall height of the enclosure.
- Secure the enclosure for transport
Using a forklift, position the forks to match the pallet end slot openings. Secure the enclosure by inserting a 3000 lb-rated chain or strap through the eye bolts on top of the enclosure and fasten it to the forklift mast assembly.
- Lift and position the enclosure
Lift the enclosure a minimum distance so the skid is just clear of the floor. Carefully transport the enclosure to the installation site, ensuring to avoid contact with fixed objects.
- Mount the enclosure
Once at the installation site, secure the enclosure to the mounting surface using the provided mounting screws. Ensure it is level and firmly attached.
- Connect electrical components
Use wire strippers to prepare the wires and connect them to the terminal connectors as per the wiring diagram provided in the enclosure manual.
- Verify connections
Use a multimeter to check the connections for continuity and proper voltage levels. Ensure all connections are secure.
- Calibrate the enclosure
Follow the calibration procedures outlined in the manual to ensure the enclosure is functioning correctly. Adjust settings as necessary.
