Contact for Pricing

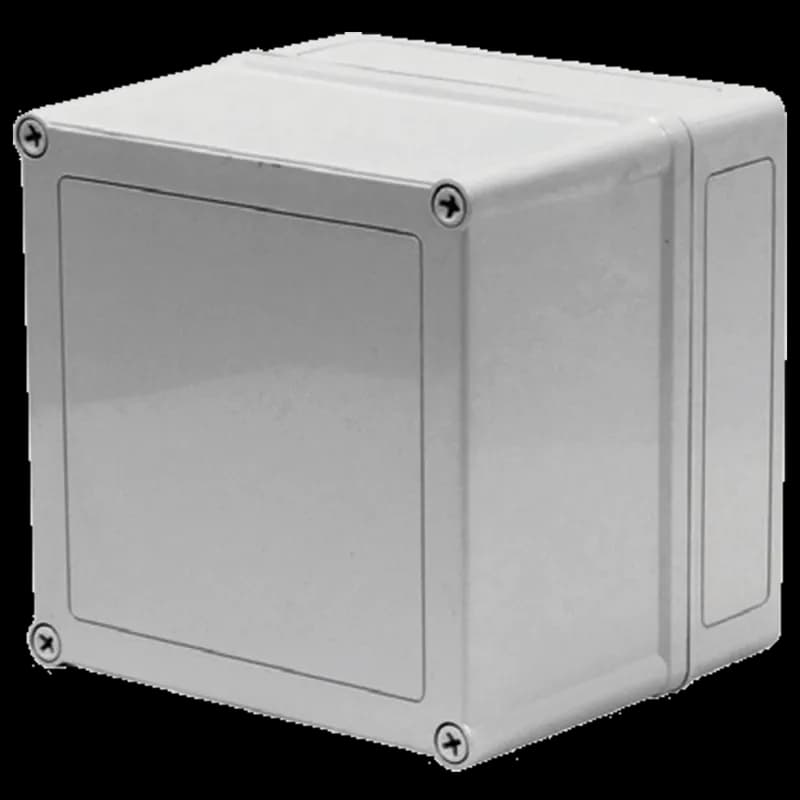

Overview
- Enclosures are maintenance free and corrosion resistant
- Bases and covers are made from a polyester, polycarbonate material blend that can withstand continuous temperatures up to 280°F (138°C)
- Transparent covers are made from polycarbonate that withstands continuous temperatures from -13°F to +104°F (-25°C to +40°C)
- Cover screw holes in corners are outside of the gasketed area

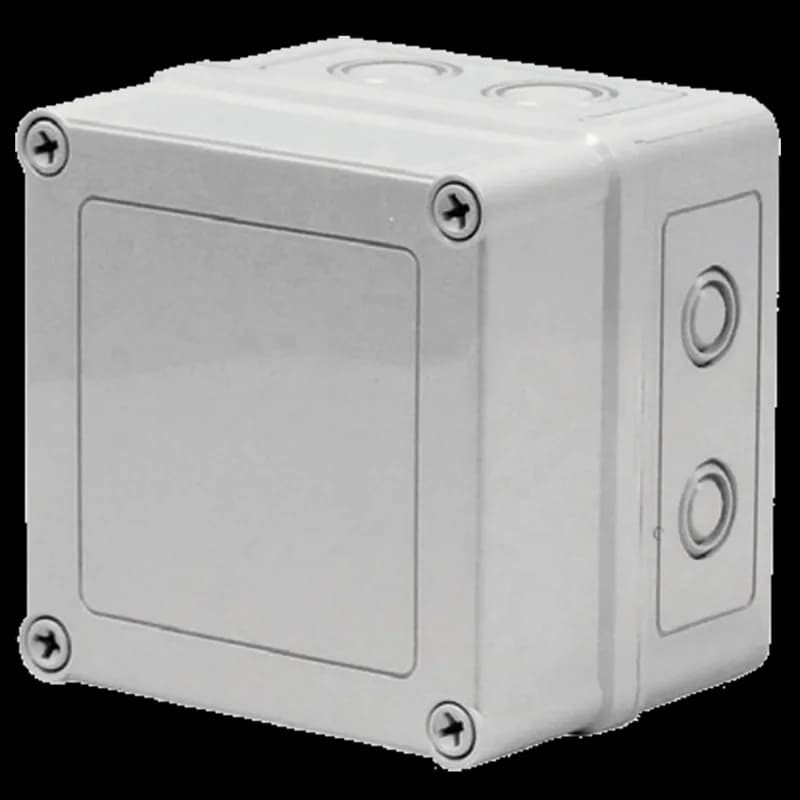

- Knockouts in the base facilitate conduit entry
- Continuous gaskets made of polyurethane foam ensure optimal integrity

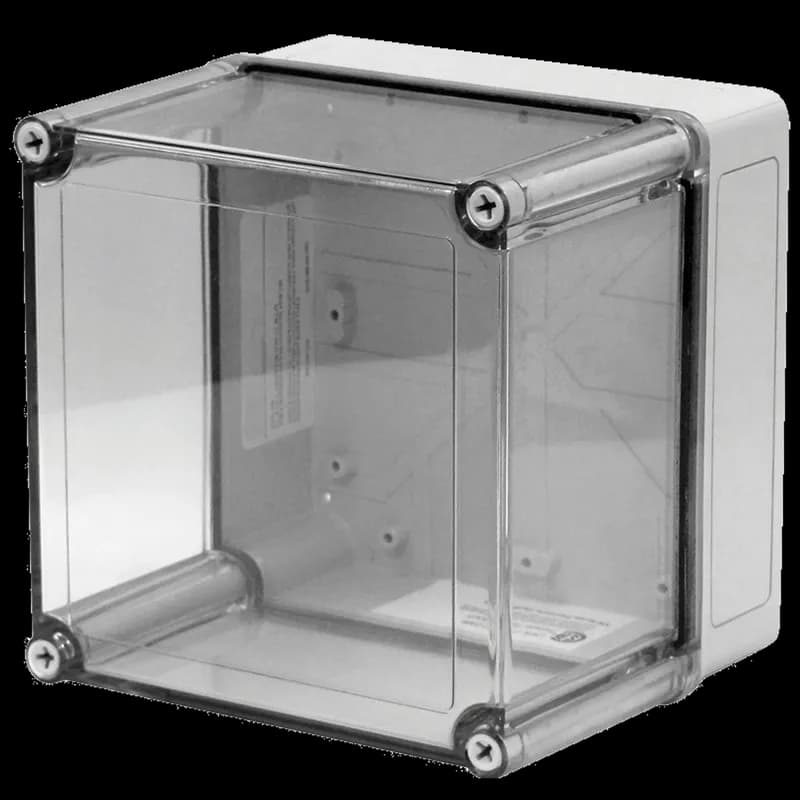

- Transparent cover with four non-metallic corner screws and knockouts in the base
Specifications
Application | Corrosive Environments; Controls and Drives |
Color | Light Gray |
Color | Lt Gray |
Color Code | RAL 7035 |
Depth | 128 mm |
Depth | 5.02 in |
Finish | Smooth Matte |
Height | 7 in |
Height | 178 mm |
IP Rating | IP66 |
Material | Polyester |
Mounting Type | Screw cover with knockouts |
Nema Rating | Type 4X |
Product Family | VM |
Protection Rating | NEMA Type 3 |
Series | VM Series |
Size | 7.00x5.03x5.02 inches |
Type | Fiberglass and Thermoplastic Wall Mounted Industrial Enclosures |
Weight | 0.66 lb |
Width | 5.03 in |
Width | 128 mm |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
How to Install the VM533 Controller
This guide provides step-by-step instructions for installing and configuring the VM533 Controller in a non-metallic enclosure.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the controller
Secure the VM533 Controller to the DIN rail using the integrated clips. Ensure the controller is level and firmly attached.
- Connect power supply
Use terminal connectors to connect the power supply wires to the designated input terminals on the VM533 Controller. Verify that the connections are secure.
- Configure initial settings
Power on the VM533 Controller and use the configuration interface to set the desired operational parameters. Follow the on-screen prompts to complete the setup.
