nVent VAMONITOR - Syspend Monitor and Keyboard Arm, 21.22x25x25.63, Lt Gray, Aluminum
nVent

VAMONITOR

UPC: 783510186913

Contact for Pricing

Overview

Optimize your industrial workspace with the nVent Syspend Monitor and Keyboard Arm (SKU: VAMONITOR). This robust arm is engineered for HMI applications, providing a dedicated mounting solution for flat-screen monitors, keyboards, and mice. Manufactured by nVent, it features an internal gas spring counterbalance, allowing for effortless, single-handed adjustment of loads ranging from 6 to 15 lbs. The arm offers 12 inches of vertical height adjustment and can be locked in place with a toggle lever. Enjoy flexible viewing angles with 340-degree rotation at the monitor end and 180 degrees at the mounting end. The display tilts 15 degrees forward and 45 degrees backward to minimize glare. When not in use, the keyboard folds up compactly, staying within 5 inches of the wall. Constructed from durable aluminum with a RAL 7035 light-gray finish, the VAMONITOR maintains NEMA Type 4 and 12 and IEC IP66 enclosure ratings when installed correctly, ensuring protection in harsh industrial settings. Ideal for automotive, food & beverage, pharmaceutical, oil & gas, and wastewater treatment facilities, this arm easily installs on walls or vertical surfaces. VESA mounting patterns include 3x3-inch and 4x4-inch compatibility for most flat-screen monitors. Cable management is integrated to protect cords from pulling or chafing.
  • Supports 6-15 lb. loads with an internal gas spring counterbalance
  • "Provides 12"" of vertical height adjustment"
  • Toggle lever locks arm in place when repositioned vertically
  • "3 x 3"" and 4 x-4"" VESA mounting pattern fits most flat screen monitors"
  • Arm swivels 340 degrees at display end and 180 degrees at mounting end
  • Display tilts forward 15 degrees and back 45 degrees to reduce glare
  • "Folds up within 7"" of the wall"
  • Display and keyboard stay level as they travel vertically
  • Side cable manager protects cables and cords from pulling or chafing
  • Easily installs on a wall or vertical surface

Specifications

Application
Controls and Drives
Arm Weight
9.07 kg
Arm Weight
20 lb
Color
Light Gray
Color
Gray
Color Code
RAL 7035
Depth
651 mm
Depth
25.63
Depth
651
Finish
Powder Coated
Height
539 mm
Height
21.22
Height
539
IP Rating
IP66
Material
Aluminum
Modification Services
No
Mounting Type
Wall or Vertical Surface
Nema Rating
Type 4 and 12
Product Category
Electronic Cabinets
Product Family
Syspend
Series
Syspend
Size
21.22x25x25.63 in
Thickness
0.12 in
Thickness
3 mm
Type
Vertical Motion Arms
Weight
19 lb
Width
25
Width
635
Width
635 mm
Package Dimensions (L x W x H)
31 IN x 20.5 IN x 8.8 IN
Package Dimensions (L x W x H)
78.74 cm x 52.07 cm x 22.352 cm
Package Weight (Imperial)
19.000 L
Package Weight (Metric)
8.618 kg

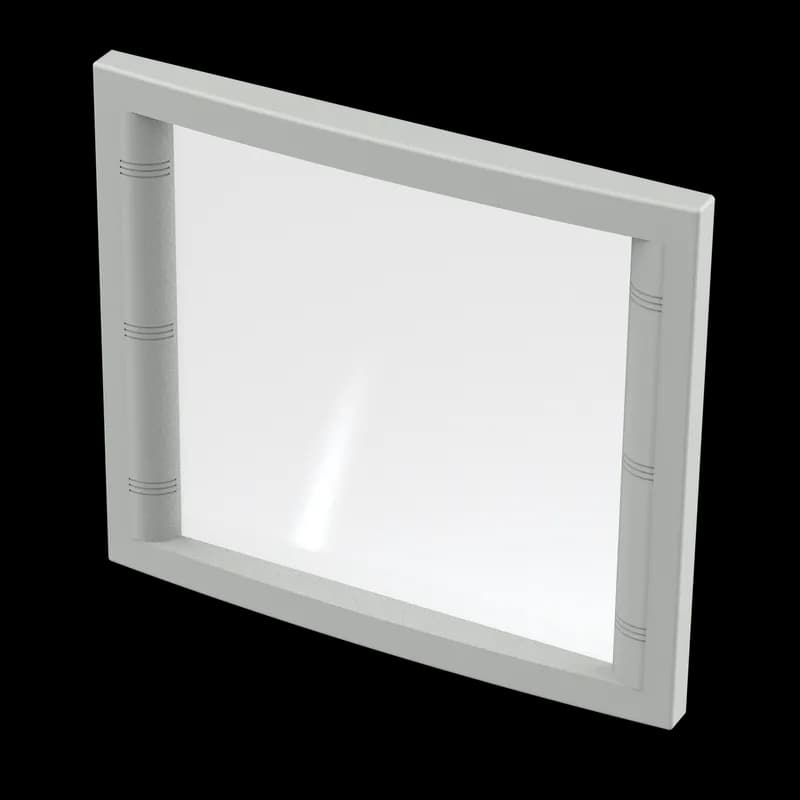

Concept Fixed Window Kit, Type 4, fits 550x570mm, Gray, Aluminum
