nVent QIHK - Hinges QLINE I
nVent

QIHK

UPC: 783510149390

Contact for Pricing

Overview

The nVent QIHK Hinge Kit is designed for use with all nVent QLINE I enclosures, providing essential hardware for secure door mounting. This kit includes two durable polyamide hinges, eight M4 self-tapping plated screws, and eight flat washers. A drilling template is also provided for precise installation. For QLINE I enclosures with 600 mm sides, three hinges are recommended for optimal support. The QIHK meets NEMA Type 4 requirements, offering protection against dust, falling dirt, and splashing water. Constructed from high-quality polyamide, it ensures durability and resistance to environmental factors. The kit's polyamide material provides a robust and long-lasting solution. The QIHK is specifically designed for 600 mm size enclosures, making it an ideal choice for standard QLINE I installations. With its NEMA Type 4 rating, the QIHK ensures a high level of protection for the enclosure's contents. The door mounting type allows for easy and secure installation of the enclosure door. As part of the QLINE I series, the QIHK is designed to work seamlessly with other QLINE I products, providing a comprehensive solution for enclosure needs. Key features include polyamide material, 600 mm size, NEMA Type 4 rating, door mounting type, and being part of the QLINE I series, making it a reliable and efficient choice for enclosure installations.
  • Use on all QLine I enclosures
  • Hinge Kit meets Type-4 requirements
  • Hinge Kit includes two polyamide hinges, eight M4 self-tapping plated screws, eight flat washers and drilling template
  • Three hinges required for 600-mm sides
  • Part of the QLINE I series

Specifications

Accessory Description
Hinge kit for cover, PU 2 pieces
Application
Controls and Drives; Corrosive Environments
Color
Light Gray
Color Code
RAL 7035
Finish
Smooth Matte
Material
Polycarbonate
Product Family
QLine
Type
Industrial Door Mounting and Locks
Weight
0.12 lb
Package Dimensions (L x W x H)
8 IN x 4 IN x 1 IN
Package Dimensions (L x W x H)
20.32 cm x 10.16 cm x 2.54 cm
Package Weight (Imperial)
0.120 L
Package Weight (Metric)
0.054 kg

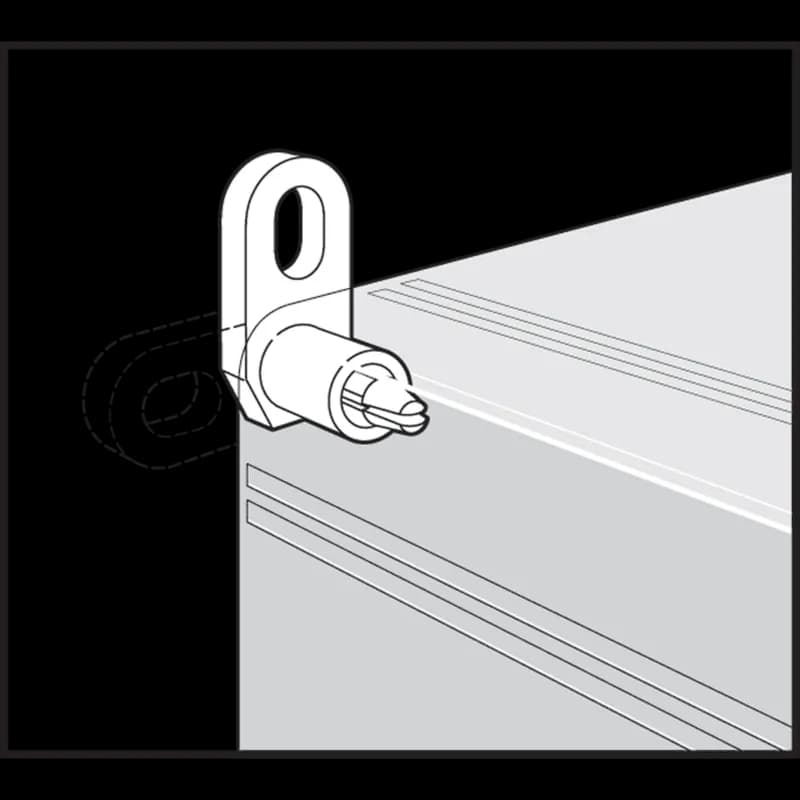

Wallmounting bracket QLINE I

QIMFK

Wallmounting bracket QLINE I
PolyPro Polyester Mounting Bracket Kits, fits 10-inch, Lt Gray, Polycarbonate

APOLYFT10

PolyPro Polyester Mounting Bracket Kits, fits 10-inch, Lt Gray, Polycarbonate
PolyPro Polyester Mounting Bracket Kits, fits 6-inch, Lt Gray, Polycarbonate

APOLYFT6

PolyPro Polyester Mounting Bracket Kits, fits 6-inch, Lt Gray, Polycarbonate
PolyPro Polyester Mounting Bracket Kits, fits 4-inch, Lt Gray, Polycarbonate

APOLYFT4

PolyPro Polyester Mounting Bracket Kits, fits 4-inch, Lt Gray, Polycarbonate
PolyPro Polyester Mounting Bracket Kits, fits 12-inch, Lt Gray, Polycarbonate

APOLYFT12

PolyPro Polyester Mounting Bracket Kits, fits 12-inch, Lt Gray, Polycarbonate
PolyPro Polyester Mounting Bracket Kits, fits 14-inch, Lt Gray, Polycarbonate

APOLYFT14

PolyPro Polyester Mounting Bracket Kits, fits 14-inch, Lt Gray, Polycarbonate

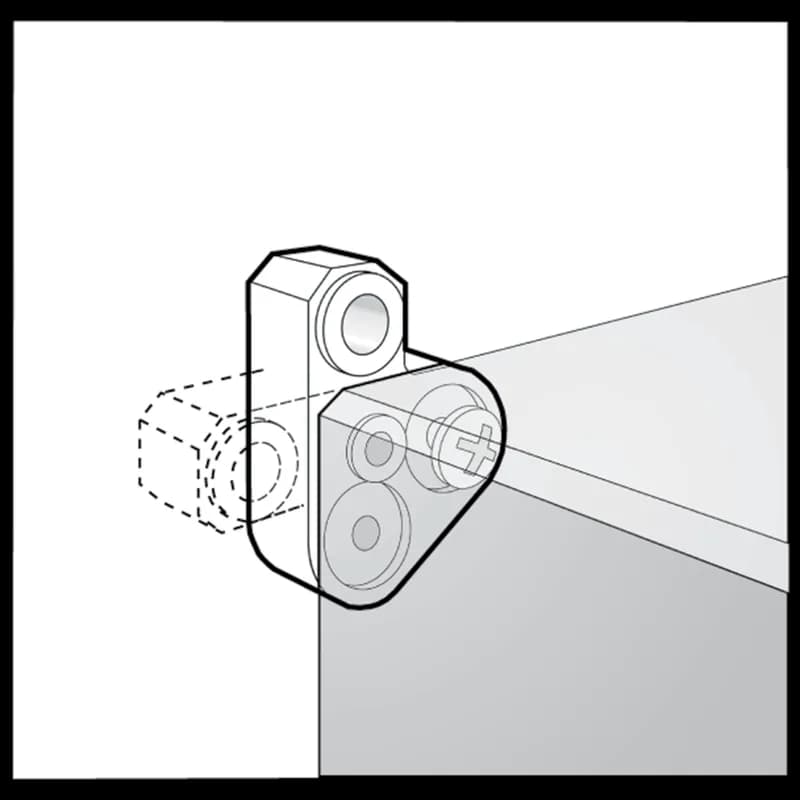

Wallmounting brackets QLINE D

QDMFK

Wallmounting brackets QLINE D

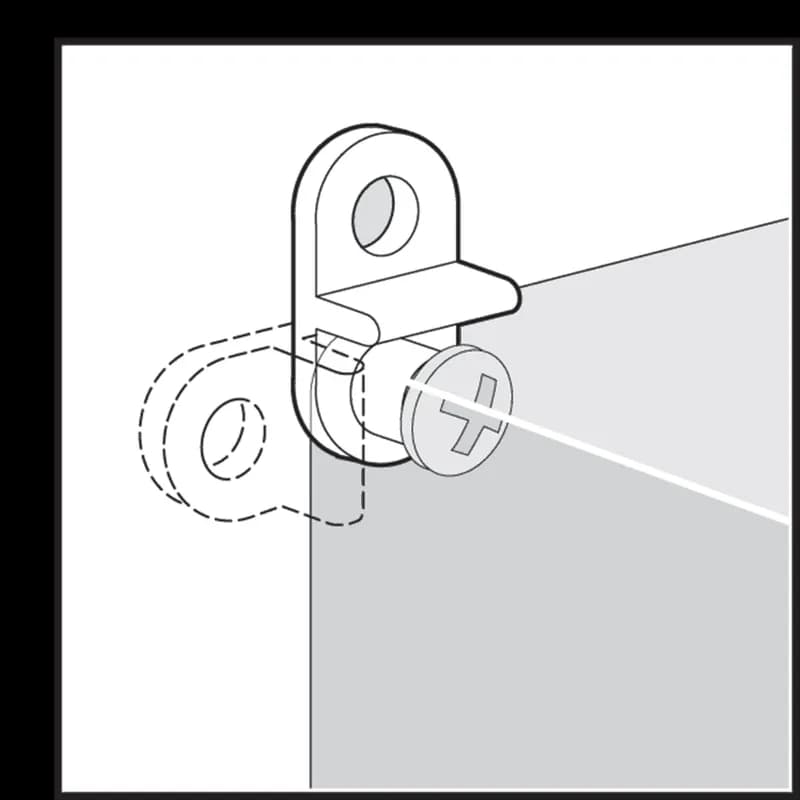

Wallmounting bracket QLINE E
