Overview

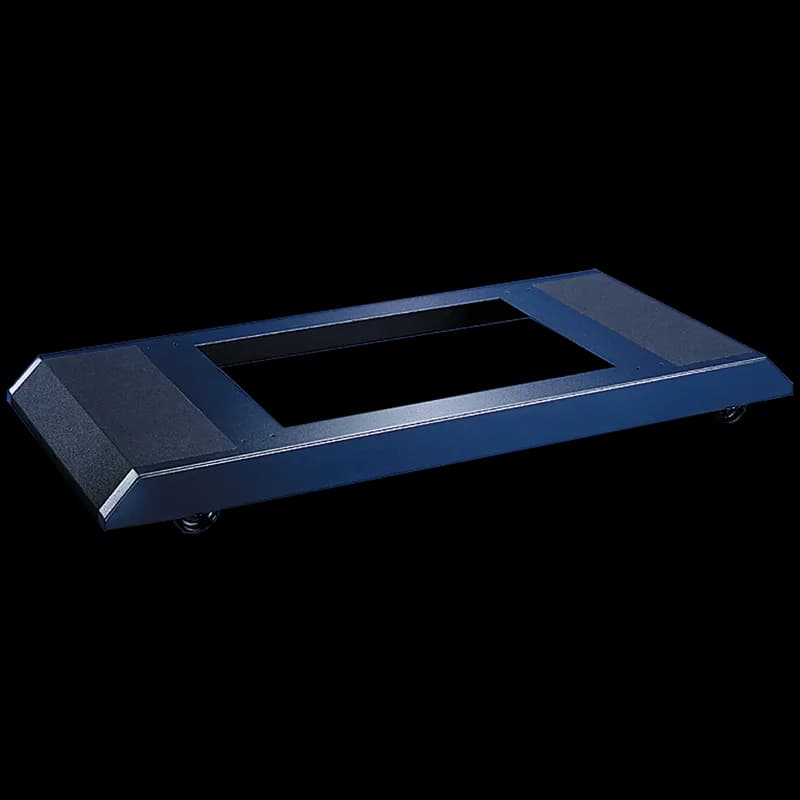

- Removable side cover plates allows wire access between bases
- Can be used across bayed enclosures up to a maximum of 300mm (118.11in.) total width
- Maintains NEMA 12 rating without requiring gland plate
- Gasket and installation hardware included
- Unique design allows forklift access from each end
- Can be configured in a variety of combinations
Specifications
Application | Power Distribution; Controls and Drives |
Color | Black |
Color | Jet Black |
Color Code | RAL 9005 |
Finish | Steel/Black |
Material | Steel |
Material | Mild Steel |
Modification Services | Yes |
Product Family | ProLine |
Size | 167x1200x600mm |
Thickness | 10 ga |
Thickness | 3.4 mm |
Type | External Mounting for ProLine Industrial Enclosures |
Weight | 122 lb |
Package Dimensions (L x W x H) | 52 IN x 30.5 IN x 12 IN |
Package Dimensions (L x W x H) | 132.08 cm x 77.47 cm x 30.48 cm |
Package Weight (Imperial) | 122.000 L |
Package Weight (Metric) | 55.339 kg |
