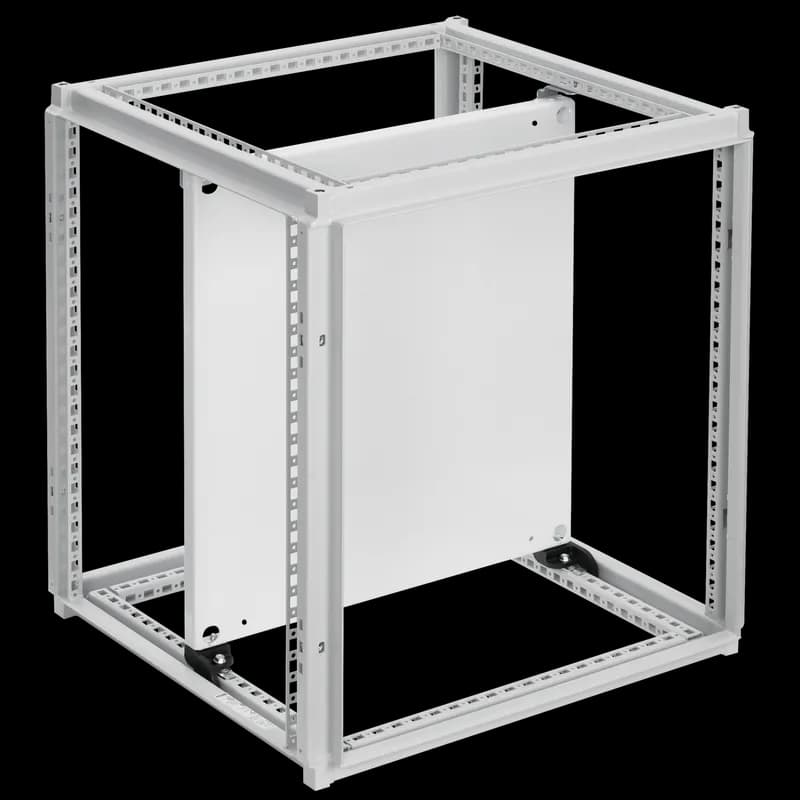

nVent PPFSM205 - Side-Mount Subpanel, fits 2000x500, White, Steel
nVent

PPFSM205

UPC: 783510995706

Documents & Media
Installation Instructions

Contact for Pricing

Overview

The nVent PPFSM205 Side-Mount Subpanel is a robust, space-efficient solution designed for industrial electrical installations requiring interior frame-side mounting. Engineered to fit 2000x500mm dimensions, this subpanel provides a secure and organized housing for electrical components, ensuring compliance with stringent safety and performance standards. Manufactured from high-quality steel with a durable white finish, the PPFSM205 offers exceptional corrosion resistance and longevity, making it ideal for harsh industrial environments where reliability is paramount. Side-mounted panels like the nVent PPFSM205 are specifically designed to optimize space within control panels, switchgear, and distribution boards. By mounting directly to the interior sides of frames, they free up critical front-panel real estate for essential components such as circuit breakers, relays, and terminal blocks. This strategic placement enhances accessibility during maintenance and reduces clutter, improving overall system efficiency. The included mounting hardware ensures quick and secure installation, minimizing downtime and labor costs. Typical applications for the PPFSM205 include industrial automation, manufacturing facilities, data centers, and commercial buildings where space optimization and electrical safety are critical. In automation environments, these subpanels facilitate the integration of control modules and power distribution units, streamlining wiring and reducing the risk of electrical faults. Data centers benefit from the PPFSM205’s ability to consolidate multiple components into a compact footprint, enhancing airflow management and cooling efficiency. Professionals in the electrical industry rely on nVent’s reputation for engineering excellence and innovation. With decades of experience in thermal management and electrical protection solutions, nVent delivers products that meet the demands of modern industrial applications. The PPFSM205 is no exception, offering a combination of durability, ease of installation, and compliance with industry standards such as UL and IEC. Whether retrofitting existing systems or designing new installations, the PPFSM205 provides a dependable solution that aligns with the highest standards of safety and performance. Key considerations when selecting a side-mount subpanel include material compatibility, environmental conditions, and load requirements. The steel construction of the PPFSM205 ensures compatibility with a wide range of electrical components, while its white finish provides excellent visibility and heat dissipation. For professionals seeking a reliable, space-saving solution for electrical installations, the nVent PPFSM205 Side-Mount Subpanel stands out as a trusted choice in the industry.
  • 12 gauge steel; conductive or white painted finish
  • Mounting hardware is included; plated-finish
  • Side-mount design optimizes interior space in control panels and switchgear
  • Includes mounting hardware for quick and secure installation
  • Compliant with industry standards for safety and performance

Specifications

Application
Controls and Drives; Power Distribution
Color
White
Finish
Powder Coated
Material
Mild Steel
Modification Services
Yes
Product Family
ProLine
Size
fits 2000x500mm
Thickness
12 ga
Thickness
2.66 mm
Type
Internal Mounting for ProLine Industrial Enclosures
Weight
39.94 lb
Package Dimensions (L x W x H)
79.5 IN x 17 IN x 3 IN
Package Dimensions (L x W x H)
201.93 cm x 43.18 cm x 7.62 cm
Package Weight (Imperial)
39.940 L
Package Weight (Metric)
18.117 kg
