Overview

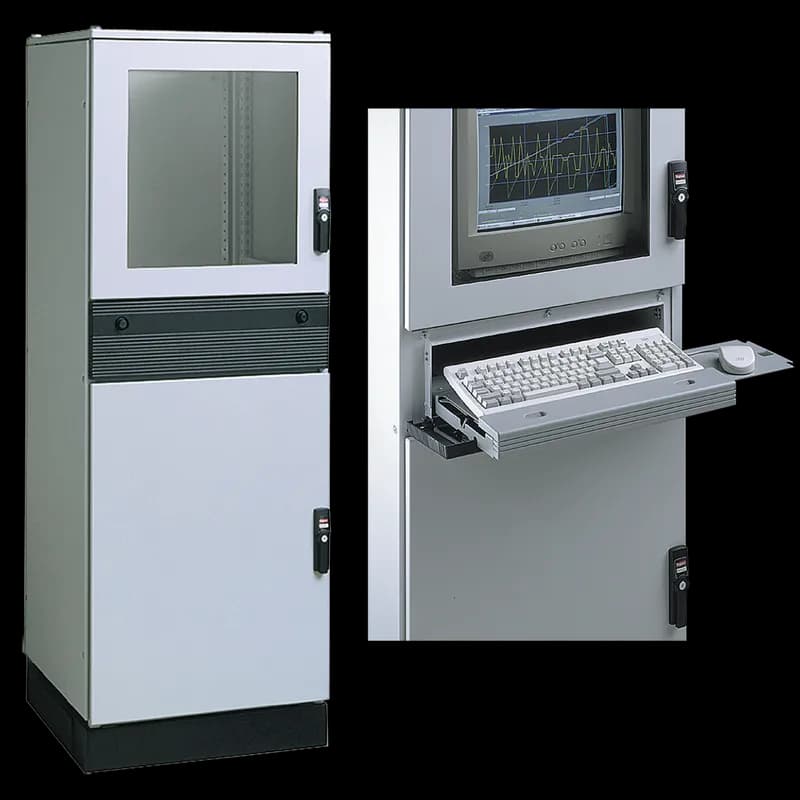

- Frame is enclosed with solid sides, a solid top and a 100-mm solid base.
- Three doors, two in front and one in back, provide convenient access
- Sealed keyboard compartment maintains enclosure integrity when the compartment door is opened
- The 19-in. diagonal top window door, hinged on the left, offers viewing access for a variety of monitor sizes and has a small flush swing handle with keylock for system security
- The vented frame shelf in the top compartment is constructed of 14 gauge steel and is painted with RAL 7035 textured light-gray polyester powder paint
- The ProLine keyboard compartment includes a locking feature, an angled palm rest, a cable access port for wiring and integral mouse pad holders for both left-handed and right-handed people
- The accessory front opening accommodates a number of optional components, such as keyboard shelves and control compartments
- The bottom compartment includes a solid door hinged on the left that has a small flush swing handle with key lock; compartment can be used to install computer equipment, panel-mounted equipment or rack mounted control systems
Specifications
Application | Controls and Drives |
Bottom Door Opening Height | 29.09 in |
Color | Light Gray |
Color | Gray |
Color | Grey |
Color Code | RAL 7035 |
Depth | 600 mm |
Depth | 23.62 |
Depth | 600 |
Finish | Powder Coated |
Finish | Powder Coating |
Height | 62.99 |
Height | 1,600 |
Height | 1,600 mm |
IP Rating | IP55 |
Material | Mild Steel |
Material | Steel |
Material | Stainless Steel;Steel |
Modification Services | Yes |
Nema Rating | Type 12 |
NEMA Rating | 12 |
NEMA Rating | 12 Indoor, dust-resistant |
Product Family | ProLine |
Protection Rating | NEMA Type 12 |
Series | PROLINE-PC |
Size | 1600x800x600mm |
Size | 1600x800x600 mm |
Thickness | 1.52 mm |
Thickness | 16 ga |
Thickness | 51.40mm (2.024") |
Top Door Opening Height | 558 mm |
Top Door Opening Height | 21.97 in |
Top Door Opening Width | 536 mm |
Top Door Opening Width | 28.98 in |
Type | Mild Steel Modular Industrial Enclosures |
Type Number | Type 12 |
Weight | 337 lb |
Width | 31.5 |
Width | 800 |
Width | 800 mm |
Package Dimensions (L x W x H) | 38 IN x 32 IN x 72 IN |
Package Dimensions (L x W x H) | 96.52 cm x 81.28 cm x 182.88 cm |
Package Weight (Imperial) | 337.000 L |
Package Weight (Metric) | 152.863 kg |
